SKU: K4x7x10TN-MB

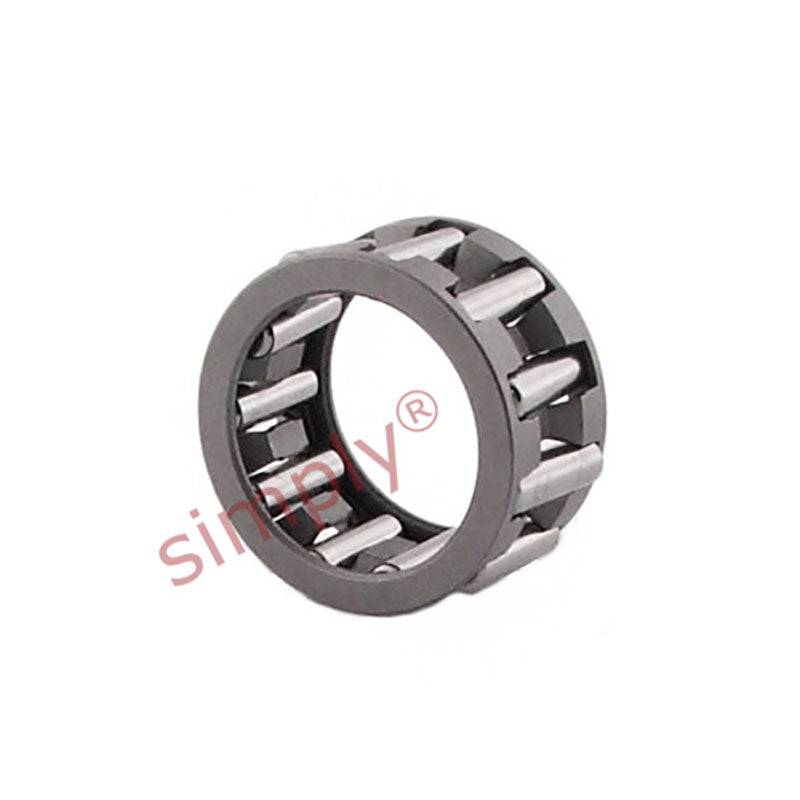

Major Brand K4x7x10TN Needle Roller Cage Assembly 4x7x10mm
Major Brand K4x7x10TN Needle Roller Cage Assembly 4x7x10mm
Regular price
€6,95
ex VAT
Regular price
Sale price
€6,95
ex VAT
In stock
Price Break
10+
€4,79
19+
€4,52
29+
€4,47
39+
€4,41
49+
€4,36
74+
€4,31
99+
€4,04
199+
€3,98
249+
€3,93
499+
€3,88
999+
€3,77
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 7mm
- Width:
- 10mm
Technical
Technical
| Fw | 4mm |
|---|---|
| Ew | 7mm |
| U | 10mm |
| Dynamic load | 2290 N |
| Static load | 1900 N |
| Fatigue load limit Pu | 204 N |
| Speed in grease | 24000 rpm |
| Speed in oil | 36000 rpm |
| Weight | 0.7 g |
