SKU: K6x10x13TN-MB

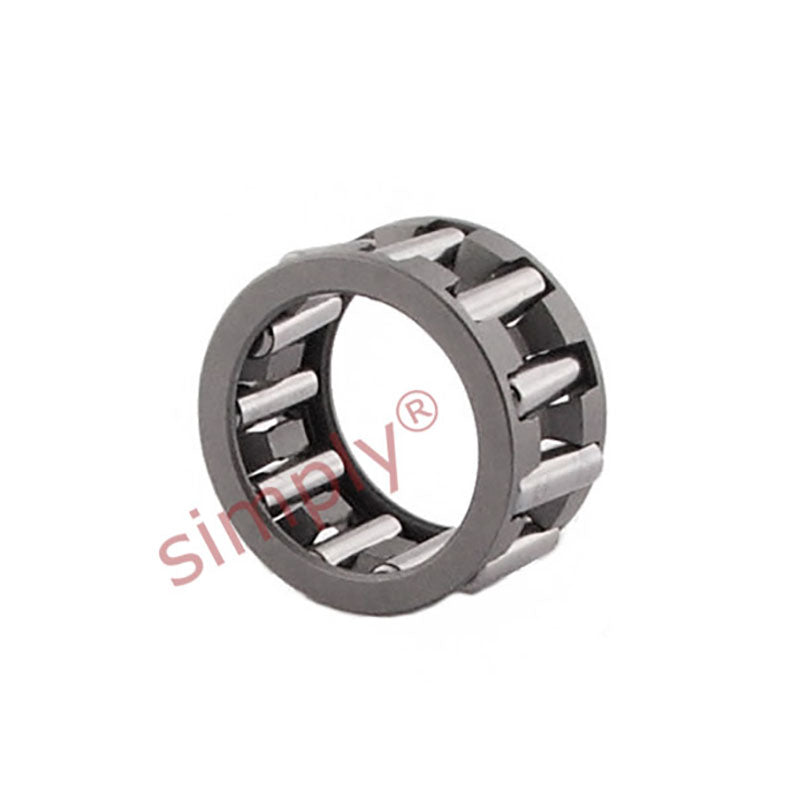

Major Brand K6x10x13TN Needle Roller Cage Assembly 6x10x13mm
Major Brand K6x10x13TN Needle Roller Cage Assembly 6x10x13mm
Regular price
£4.30
ex VAT£5.16inc. VAT
Regular price
Sale price
£4.30
ex VAT£5.16
inc. VAT
Equivalent to: KT61013
In stock
Price Break
10+
£3.83
19+
£3.61
29+
£3.57
39+
£3.53
49+
£3.48
74+
£3.44
99+
£3.23
199+
£3.18
249+
£3.14
499+
£3.10
999+
£3.01
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT61013
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 10mm
- Width:
- 13mm
Technical
Technical
| Fw | 6mm |
|---|---|
| Ew | 10mm |
| U | 13mm |
| Dynamic load | 3690 N |
| Static load | 3150 N |
| Fatigue load limit Pu | 360 N |
| Speed in grease | 22000 rpm |
| Speed in oil | 34000 rpm |
| Seal | G6x10x2S |
| Weight | 1.9 g |
