SKU: K7x10x10TN-MB

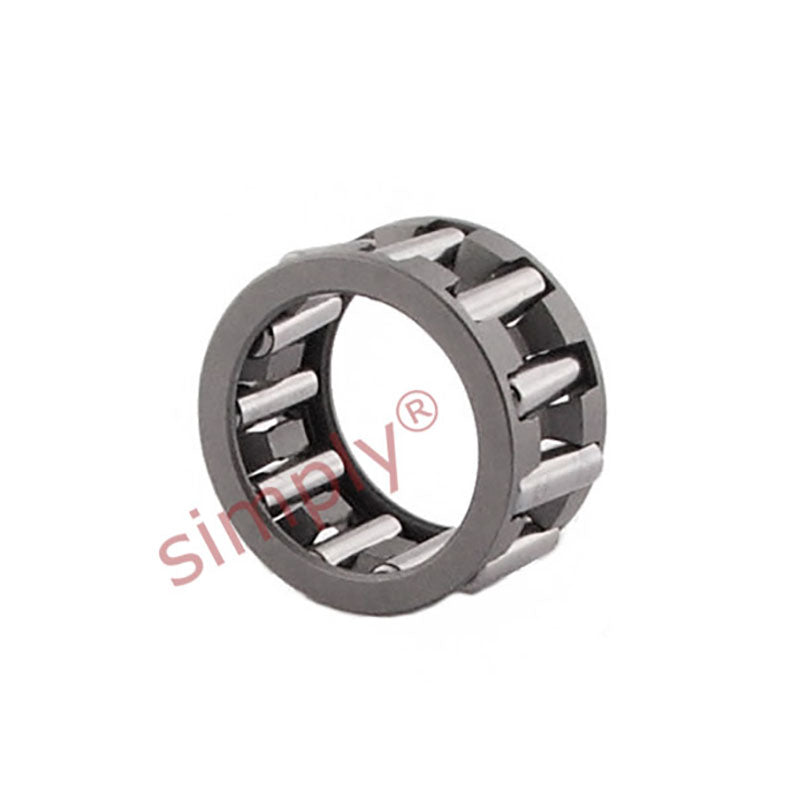

Major Brand K7x10x10TN Needle Roller Cage Assembly 7x10x10mm
Major Brand K7x10x10TN Needle Roller Cage Assembly 7x10x10mm
Regular price
£4.60
ex VAT£5.52inc. VAT
Regular price
Sale price
£4.60
ex VAT£5.52
inc. VAT
Equivalent to: KT71010
In stock
Price Break
10+
£4.09
19+
£3.86
29+
£3.82
39+
£3.77
49+
£3.73
74+
£3.68
99+
£3.45
199+
£3.40
249+
£3.36
499+
£3.31
999+
£3.22
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT71010
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 10mm
- Width:
- 10mm
Technical
Technical
| Fw | 7mm |
|---|---|
| Ew | 10mm |
| U | 10mm |
| Dynamic load | 3580 N |
| Static load | 3750 N |
| Fatigue load limit Pu | 415 N |
| Speed in grease | 20000 rpm |
| Speed in oil | 32000 rpm |
| Weight | 1 g |
