Average Rating (11 Reviews)

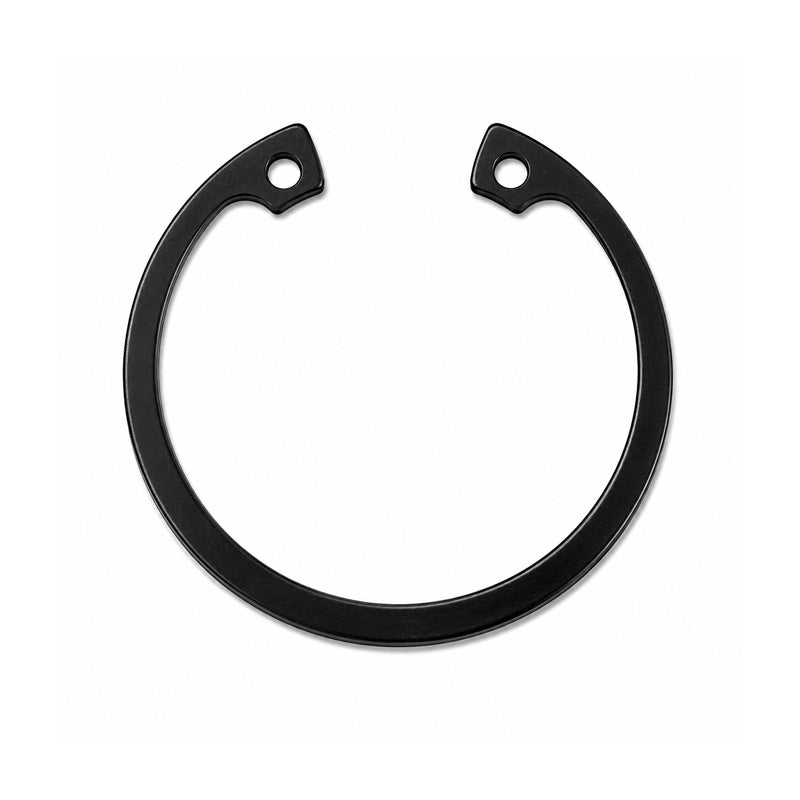

Internal Circlip for 200mm Bore Diameter Un-Sprung Diameter 209.5mm
Equivalent to: D1300-200
£5.52
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 5+ | £5.46 each |
| 10+ | £5.24 each |
| 20+ | £5.13 each |
| 50+ | £4.97 each |
| 100+ | £4.86 each |
| 500+ | £4.58 each |
| 1000+ | £3.86 each |
In Stock
| Clip Dimensions | ||
| Bore Size | = | 200mm |
| s (ring thickness) | = | 4mm |
| Thickness tolerance | = | -0.1mm |
| Unstressed diameter d3 | = | 209.5mm |
| Unstressed diameter tolerance | = | +1.70-0.72mm |
| Lug a | = | 14.2mm |
| Beam b | = | 14mm |
| d5 | = | 4mm |
| Weight | = | 195 g |
| Groove Requirements | ||
| Groove diameter | = | 205mm |
| Groove tolerance | = | 0.72mm |
| Minimum groove width | = | 4.15mm |
| Groove depth | = | 2.5mm |
