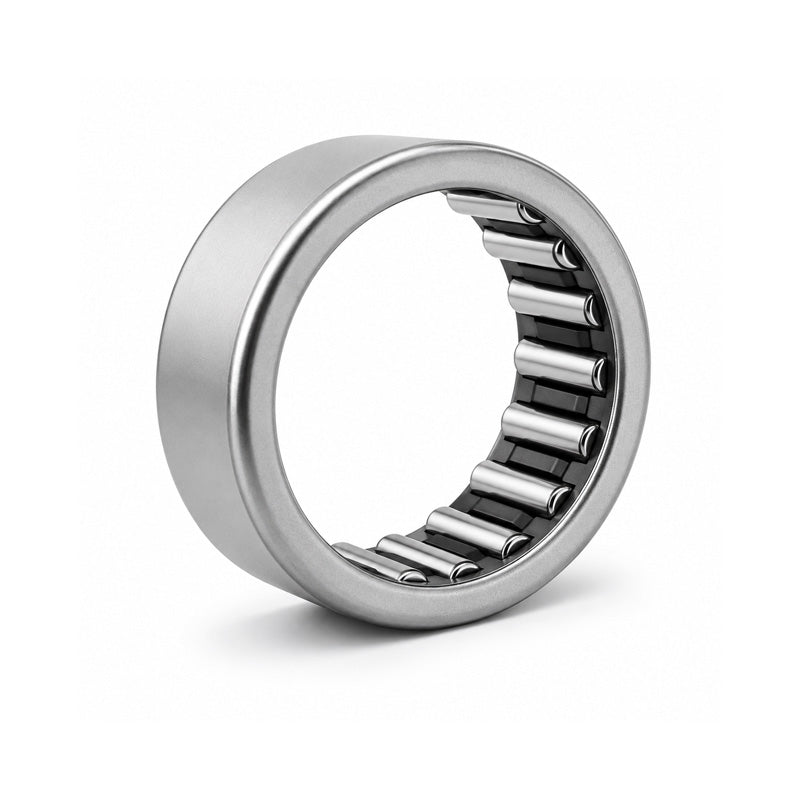

• BHA1312ZOH Needle Roller Bearing 13/16x1-1/8x3/4 inch
1 1

SKU: BHA.1312.ZOH

BHA1312ZOH Needle Roller Bearing 13/16x1-1/8x3/4 inch

BHA1312ZOH Needle Roller Bearing 13/16x1-1/8x3/4 inch
£3.98 ex VAT£4.78inc. VAT
£3.98 ex VAT£4.78 inc. VAT
Sale Sold out

Equivalent to: JH1312 SCH1312

In stock

Price Break
10+ £3.54
19+ £3.34
29+ £3.30
39+ £3.26
49+ £3.22
74+ £3.18
99+ £2.99
199+ £2.95
249+ £2.91
499+ £2.87
999+ £2.79
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Imperial Drawn Cup Needle Roller Bearings : As the name suggests are manufactured to imperial dimensions and are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.


Equivalent: JH1312 SCH1312
Brand / Quality:
IKO - High Quality
Inside Diameter:
20.64mm = 0.813 (13/16) inch
Outside Diameter:
28.58mm = 1.125 (1-1/8) inch
Width:
19.05mm = 0.75 (3/4) inch
Technical
Fw 13/16 inch
D 1-1/8 inch
C 3/4 inch
Dynamic Load Cor 17300 N
Static Load Cr 24400 N
Weight 0.0285 kg
