Quality Four Point Contact Ball Bearings

Please select your sizes and options ...	[x] Reset

Displaying 1 to 25 (of 208 products)


QJ305TVP Four Point Contact Ball Bearing 25x62x17mm Inside Diameter: 25mm Outside Diameter: 62mm Width: 17mm *Clearance: Standard**	From £47.32 ex. VAT	Enlarge View Click Here
QJ204MPA Four Point Contact Ball Bearing 20x47x14mm Inside Diameter: 20mm Outside Diameter: 47mm Width: 14mm *Clearance: Standard**	From £55.13 ex. VAT	Enlarge View Click Here
QJ204MPAC3 Four Point Contact Ball Bearing 20x47x14mm Inside Diameter: 20mm Outside Diameter: 47mm Width: 14mm Clearance: C3	From £55.13 ex. VAT	Enlarge View Click Here
SKF QJ304MA Four Point Contact Ball Bearing with Locating Slots and Brass Cage 20x52x15mm Inside Diameter: 20mm Outside Diameter: 52mm Width: 15mm *Clearance: Standard**	From £55.87 ex. VAT	Enlarge View Click Here
QJ306TVPC3 Four Point Contact Ball Bearing 30x72x19mm Inside Diameter: 30mm Outside Diameter: 72mm Width: 19mm Clearance: C3	From £57.23 ex. VAT	Enlarge View Click Here
QJ306TVP Four Point Contact Ball Bearing 30x72x19mm Inside Diameter: 30mm Outside Diameter: 72mm Width: 19mm *Clearance: Standard**	From £57.23 ex. VAT	Enlarge View Click Here
QJ208TVP Four Point Contact Ball Bearing 40x80x18mm Inside Diameter: 40mm Outside Diameter: 80mm Width: 18mm *Clearance: Standard**	From £57.27 ex. VAT	Enlarge View Click Here
QJ304MPA Four Point Contact Ball Bearing 20x52x15mm Inside Diameter: 20mm Outside Diameter: 52mm Width: 15mm *Clearance: Standard**	From £58.19 ex. VAT	Enlarge View Click Here
QJ304MPAC3 Four Point Contact Ball Bearing 20x52x15mm Inside Diameter: 20mm Outside Diameter: 52mm Width: 15mm Clearance: C3	From £58.19 ex. VAT	Enlarge View Click Here
QJ209TVP Four Point Contact Ball Bearing 45x85x19mm Inside Diameter: 45mm Outside Diameter: 85mm Width: 19mm *Clearance: Standard**	From £60.10 ex. VAT	Enlarge View Click Here
QJ209TVPC3 Four Point Contact Ball Bearing 45x85x19mm Inside Diameter: 45mm Outside Diameter: 85mm Width: 19mm Clearance: C3	From £60.10 ex. VAT	Enlarge View Click Here
SKF QJ206MA Four Point Contact Ball Bearing with Locating Slots and Brass Cage 30x62x16mm Inside Diameter: 30mm Outside Diameter: 62mm Width: 16mm *Clearance: Standard**	From £60.24 ex. VAT	Enlarge View Click Here
QJ205MPA Four Point Contact Ball Bearing 25x52x15mm Inside Diameter: 25mm Outside Diameter: 52mm Width: 15mm *Clearance: Standard**	From £60.59 ex. VAT	Enlarge View Click Here
QJ205MPAC3 Four Point Contact Ball Bearing 25x52x15mm Inside Diameter: 25mm Outside Diameter: 52mm Width: 15mm Clearance: C3	From £60.59 ex. VAT	Enlarge View Click Here
QJ206M Four Point Contact Ball Bearing 30x62x16mm Inside Diameter: 30mm Outside Diameter: 62mm Width: 16mm *Clearance: Standard**	From £62.70 ex. VAT	Enlarge View Click Here
QJ305MPA Four Point Contact Ball Bearing 25x62x17mm Inside Diameter: 25mm Outside Diameter: 62mm Width: 17mm *Clearance: Standard**	From £64.45 ex. VAT	Enlarge View Click Here
QJ305MPAC3 Four Point Contact Ball Bearing 25x62x17mm Inside Diameter: 25mm Outside Diameter: 62mm Width: 17mm Clearance: C3	From £64.45 ex. VAT	Enlarge View Click Here
QJ206MPAC3 Four Point Contact Ball Bearing 30x62x16mm Inside Diameter: 30mm Outside Diameter: 62mm Width: 16mm Clearance: C3	From £65.80 ex. VAT	Enlarge View Click Here
QJ206MPA Four Point Contact Ball Bearing 30x62x16mm Inside Diameter: 30mm Outside Diameter: 62mm Width: 16mm *Clearance: Standard**	From £65.80 ex. VAT	Enlarge View Click Here
QJ307TVP Four Point Contact Ball Bearing 35x80x21mm Inside Diameter: 35mm Outside Diameter: 80mm Width: 21mm *Clearance: Standard**	From £66.16 ex. VAT	Enlarge View Click Here
QJ207M Four Point Contact Ball Bearing 35x72x17mm Inside Diameter: 35mm Outside Diameter: 72mm Width: 17mm *Clearance: Standard**	From £69.22 ex. VAT	Enlarge View Click Here
SKF QJ208MA Four Point Contact Ball Bearing with Locating Slots and Brass Cage 40x80x18mm Inside Diameter: 40mm Outside Diameter: 80mm Width: 18mm *Clearance: Standard**	From £70.52 ex. VAT	Enlarge View Click Here
QJ207MPAC3 Four Point Contact Ball Bearing 35x72x17mm Inside Diameter: 35mm Outside Diameter: 72mm Width: 17mm Clearance: C3	From £72.65 ex. VAT	Enlarge View Click Here
QJ207MPA Four Point Contact Ball Bearing 35x72x17mm Inside Diameter: 35mm Outside Diameter: 72mm Width: 17mm *Clearance: Standard**	From £72.65 ex. VAT	Enlarge View Click Here
QJ208M Four Point Contact Ball Bearing 40x80x18mm Inside Diameter: 40mm Outside Diameter: 80mm Width: 18mm *Clearance: Standard**	From £73.27 ex. VAT	Enlarge View Click Here

Displaying 1 to 25 (of 208 products)

Result Pages: 1 2 3 4 5 6 7 8 9 [Next >>]

Four Point Contact Ball Bearings belong to the single row angular contact ball bearings family. But, unlike bearings of that series the four point contact bearings are double - acting. This means they are able to support thrust loads in either direction including minor radial loads.

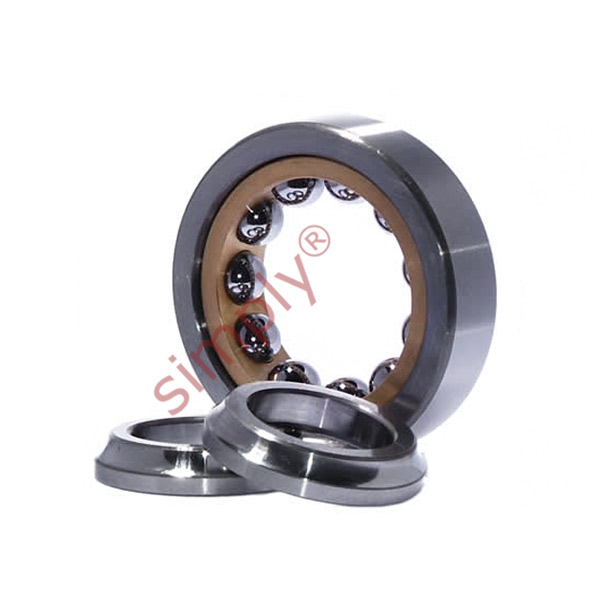

NKE Four Point Contact Bearings of the QJ design have split inner rings to allow the bearing to accept the maximum number of large balls. Due to the split inner rings, these bearings are separable. This brings some mounting advantages because the bearing outer ring with cage and ball set, and the inner ring halves may be mounted separately.

Please observe our image copyrights.

Four Point contact ball bearings are frequently used to accommodate thrust loads only. To avoid unforeseen radial loading to the bearing they used to be mounted with either reduced outside bearing ring diameters or to oversized housing seats. To prevent the outer ring from rotating with the shaft, four point contact ball bearing outer rings are often produced with locating slots.

For this reason, NKE Four Point contact ball bearings with outer diameters of more than 160 mm dia are produced with two locating slots in their outer ring (suffix N2).
Special series of four point contact ball bearings are available on request represented by the series QJ 10 and four point contact ball bearings with split outer ring (Series Q).

Four point contact ball bearings are less suitable to operate with misalignments. When they are used in combination with a radial bearing as pure thrust bearings, however, they must not be exposed to any misalignment.

NKE four point contact ball bearings are produced to normal class tolerance (PN) as standard.

Other tolerance classes, such as P6 or P5 are available upon request.

Unless otherwise specified, NKE - four point contact ball bearings are fitted with machined solid brass cages (suffix MPA) as standard. Also, other cage types and materials are produced to order; Machined steel solid cage (Suffix F) machined light metal alloy solid cage (Suffix L) moulded Polyamide cage (Suffix TVP).

NKE four point contact bearings are produced to axial clearance group CN (Normal) as standard.NKE also produce four point contact ball bearings with enlarged (axial clearance groups C3 or C4)and/or with reduced axial clearance (Clearance group C2) on request.

Four point contact ball bearings are often used to accommodate thrust loads, so they do require optimum support of the bearing rings by the machine components surrounding the bearing. To gain adequate support the shaft and housing shoulders require a certain minimum height.

The bearing rings, however, must only contact adjacent parts with their side faces.
The radii of bearing corners must not touch the corner fillet radii of either the shaft or housing shoulders.

All information courtesy NKE Bearings Austria www.nke.at
