Quality Replacement Magneto Bearings

Please select your sizes and options ...	[x] Reset

Displaying 1 to 19 (of 19 products)


E11 Magneto Bearing 11x32x7mm Inside Diameter: 11mm Outside Diameter: 32mm Width: 7mm	From £4.98 ex. VAT	Enlarge View Click Here
E9 Magneto Bearing 9x28x8mm Inside Diameter: 9mm Outside Diameter: 28mm Width: 8mm	From £4.98 ex. VAT	Enlarge View Click Here
E7 Magneto Bearing 7x22x7mm Inside Diameter: 7mm Outside Diameter: 22mm Width: 7mm	From £4.98 ex. VAT	Enlarge View Click Here
E12 Magneto Bearing 12x32x7mm Inside Diameter: 12mm Outside Diameter: 32mm Width: 7mm	From £4.98 ex. VAT	Enlarge View Click Here
E10 Magneto Bearing 10x28x8mm Inside Diameter: 10mm Outside Diameter: 28mm Width: 8mm	From £4.98 ex. VAT	Enlarge View Click Here
E8 Magneto Bearing 8x24x7mm Inside Diameter: 8mm Outside Diameter: 24mm Width: 7mm	From £4.98 ex. VAT	Enlarge View Click Here
E13 Magneto Bearing 13x30x7mm Inside Diameter: 13mm Outside Diameter: 30mm Width: 7mm	From £5.28 ex. VAT	Enlarge View Click Here
E5 Magneto Bearing 5x16x5mm Inside Diameter: 5mm Outside Diameter: 16mm Width: 5mm	From £5.58 ex. VAT	Enlarge View Click Here
E6 Magneto Bearing 6x21x7mm Inside Diameter: 6mm Outside Diameter: 21mm Width: 7mm	From £5.81 ex. VAT	Enlarge View Click Here
E14 Magneto Bearing 14x35x8mm Inside Diameter: 14mm Outside Diameter: 35mm Width: 8mm	From £5.87 ex. VAT	Enlarge View Click Here
E15 Magneto Bearing 15x35x8mm Inside Diameter: 15mm Outside Diameter: 35mm Width: 8mm	From £5.87 ex. VAT	Enlarge View Click Here
N3048 Magneto Bearing 15x37x8mm Inside Diameter: 15mm Outside Diameter: 37mm Width: 8mm	From £6.66 ex. VAT	Enlarge View Click Here
E17 Magneto Bearing 17x44x11mm Inside Diameter: 17mm Outside Diameter: 44mm Width: 11mm	From £8.04 ex. VAT	Enlarge View Click Here
E18 Magneto Bearing 18x40x9mm Inside Diameter: 18mm Outside Diameter: 40mm Width: 9mm	From £8.54 ex. VAT	Enlarge View Click Here
E4 Magneto Bearing 4x16x5mm Inside Diameter: 4mm Outside Diameter: 16mm Width: 5mm	From £9.30 ex. VAT	Enlarge View Click Here
E19 Magneto Bearing 19x40x9mm Inside Diameter: 19mm Outside Diameter: 40mm Width: 9mm	From £9.35 ex. VAT	Enlarge View Click Here
E20 Magneto Bearing 20x47x12mm Inside Diameter: 20mm Outside Diameter: 47mm Width: 12mm	From £9.78 ex. VAT	Enlarge View Click Here
Branded E10 Magneto Bearing 10x28x8mm Inside Diameter: 10mm Outside Diameter: 28mm Width: 8mm	From £12.65 ex. VAT	Enlarge View Click Here
M25 Magneto Bearing 25x62x17mm Inside Diameter: 25mm Outside Diameter: 62mm Width: 17mm	From £14.95 ex. VAT	Enlarge View Click Here

Displaying 1 to 19 (of 19 products)

Result Pages: 1

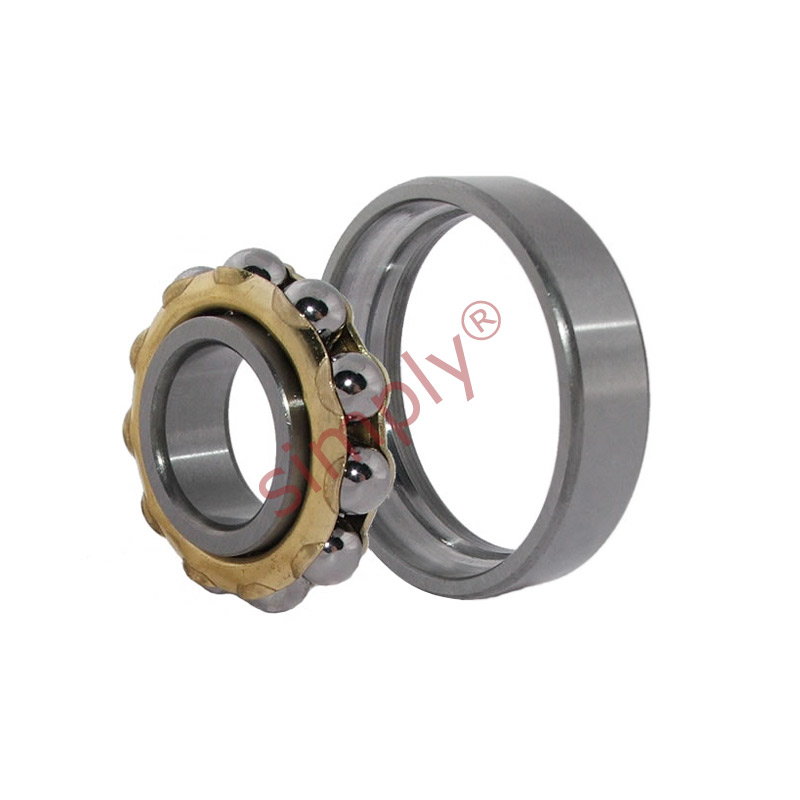

Magneto Bearings have an internal design similar to the single row deep groove ball bearings. The outer ring is counter-bored, which makes it separable and easy to mount.
Magneto bearings are suitable for applications where low loads and high speeds occur.
Single Row Deep Groove Ball Bearings are the most commonly used rolling bearings.
The balls run in deep grooves in both the outer and inner rings. This enables the bearing type to accommodate radial loads as well and some axial loads in either direction.

Deep groove ball bearings are especially suitable for high speed applications due to their low friction. They achieve the highest speed ratings of all rolling bearing types. Deep groove ball bearings are available in a wide variety of designs with different shields and seals. This enables greased "For Life" bearings, maintenance free, and more efficient designs.

Please observe our image copyrights.

Other Classifications of single row deep grooved ball bearing are, Miniature Bearings - up to and including 3.175 mm inner bore diameter
Extra Small Bearings - over 3.175 mm up to and including 9.525 mm inner bore diameter

All information courtesy NKE Bearings Austria www.nke.at
