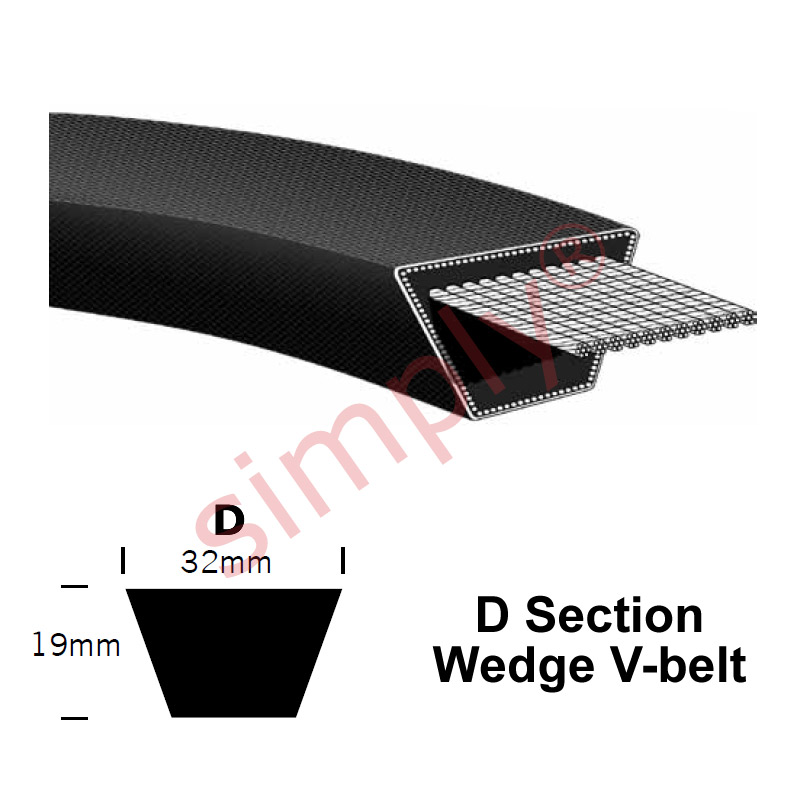

Quality D Section V Belts - 32x19mm

Please select your sizes and options ...	[x] Reset

Displaying 1 to 25 (of 81 products)


D98 Major Brand D-Section V-Belt Also Known As: 9005-2098 Belt Number: D98 Inside Length Approx: 98 inch = 2489mm Outside Length Approx: 103 inch = 2616mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £29.77 ex. VAT	Enlarge View Click Here
D104 Major Brand D-Section V-Belt Also Known As: 9005-2104 Belt Number: D104 Inside Length Approx: 104 inch = 2642mm Outside Length Approx: 109 inch = 2769mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £31.38 ex. VAT	Enlarge View Click Here
D110 Major Brand D-Section V-Belt Also Known As: 9005-2110 Belt Number: D110 Inside Length Approx: 110 inch = 2794mm Outside Length Approx: 115 inch = 2921mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £33.11 ex. VAT	Enlarge View Click Here
D121 Major Brand D-Section V-Belt Belt Number: D121 Inside Length Approx: 121 inch = 3073mm Outside Length Approx: 126 inch = 3200mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £36.14 ex. VAT	Enlarge View Click Here
D129 Major Brand D-Section V-Belt Belt Number: D129 Inside Length Approx: 129 inch = 3277mm Outside Length Approx: 134 inch = 3404mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £37.71 ex. VAT	Enlarge View Click Here
D134 Major Brand D-Section V-Belt Belt Number: D134 Inside Length Approx: 134 inch = 3404mm Outside Length Approx: 139 inch = 3531mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £38.42 ex. VAT	Enlarge View Click Here
D135 Major Brand D-Section V-Belt Also Known As: 9005-2135 Belt Number: D135 Inside Length Approx: 135 inch = 3429mm Outside Length Approx: 140 inch = 3556mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £38.56 ex. VAT	Enlarge View Click Here
D145 Major Brand D-Section V-Belt Belt Number: D145 Inside Length Approx: 145 inch = 3683mm Outside Length Approx: 150 inch = 3810mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £39.90 ex. VAT	Enlarge View Click Here
D154 Major Brand D-Section V-Belt Also Known As: 9005-2154 Belt Number: D154 Inside Length Approx: 154 inch = 3912mm Outside Length Approx: 159 inch = 4039mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £41.19 ex. VAT	Enlarge View Click Here
D155 Major Brand D-Section V-Belt Belt Number: D155 Inside Length Approx: 155 inch = 3937mm Outside Length Approx: 160 inch = 4064mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £41.23 ex. VAT	Enlarge View Click Here
D164 Major Brand D-Section V-Belt Also Known As: 9005-2164 Belt Number: D164 Inside Length Approx: 164 inch = 4166mm Outside Length Approx: 169 inch = 4293mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £42.61 ex. VAT	Enlarge View Click Here
D174 Major Brand D-Section V-Belt Belt Number: D174 Inside Length Approx: 174 inch = 4420mm Outside Length Approx: 179 inch = 4547mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £43.41 ex. VAT	Enlarge View Click Here
D118 Major Brand D-Section V-Belt Belt Number: D118 Inside Length Approx: 118 inch = 2997mm Outside Length Approx: 123 inch = 3124mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £43.53 ex. VAT	Enlarge View Click Here
D176 Major Brand D-Section V-Belt Belt Number: D176 Inside Length Approx: 176 inch = 4470mm Outside Length Approx: 181 inch = 4597mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £43.54 ex. VAT	Enlarge View Click Here
D120 Major Brand D-Section V-Belt Also Known As: 9005-2120 Belt Number: D120 Inside Length Approx: 120 inch = 3048mm Outside Length Approx: 125 inch = 3175mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £44.45 ex. VAT	Enlarge View Click Here
D124 Major Brand D-Section V-Belt Also Known As: 9005-2124 Belt Number: D124 Inside Length Approx: 124 inch = 3150mm Outside Length Approx: 129 inch = 3277mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £44.68 ex. VAT	Enlarge View Click Here
D128 Major Brand D-Section V-Belt Also Known As: 9005-2128 Belt Number: D128 Inside Length Approx: 128 inch = 3251mm Outside Length Approx: 133 inch = 3378mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £45.11 ex. VAT	Enlarge View Click Here
D132 Major Brand D-Section V-Belt Also Known As: 9005-2132 Belt Number: D132 Inside Length Approx: 132 inch = 3353mm Outside Length Approx: 137 inch = 3480mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £45.11 ex. VAT	Enlarge View Click Here
D204 Major Brand D-Section V-Belt Belt Number: D204 Inside Length Approx: 204 inch = 5182mm Outside Length Approx: 209 inch = 5309mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £59.10 ex. VAT	Enlarge View Click Here
D205 Major Brand D-Section V-Belt Also Known As: 9005-2205 Belt Number: D205 Inside Length Approx: 205 inch = 5207mm Outside Length Approx: 210 inch = 5334mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £59.40 ex. VAT	Enlarge View Click Here
D204.5 Major Brand D-Section V-Belt Belt Number: D204.5 Inside Length Approx: 204.5 inch = 5194mm Outside Length Approx: 209 inch = 5309mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £59.54 ex. VAT	Enlarge View Click Here
D207 Major Brand D-Section V-Belt Belt Number: D207 Inside Length Approx: 207 inch = 5258mm Outside Length Approx: 212 inch = 5385mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £59.93 ex. VAT	Enlarge View Click Here
D136 Major Brand D-Section V-Belt Also Known As: 9005-2136 Belt Number: D136 Inside Length Approx: 136 inch = 3454mm Outside Length Approx: 141 inch = 3581mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £60.71 ex. VAT	Enlarge View Click Here
D137 Major Brand D-Section V-Belt Belt Number: D137 Inside Length Approx: 137 inch = 3480mm Outside Length Approx: 142 inch = 3607mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £60.71 ex. VAT	Enlarge View Click Here
D217 Major Brand D-Section V-Belt Belt Number: D217 Inside Length Approx: 217 inch = 5512mm Outside Length Approx: 222 inch = 5639mm Belt Width Approx: 32mm Belt Depth Approx: 19mm	From £62.71 ex. VAT	Enlarge View Click Here

Displaying 1 to 25 (of 81 products)

Result Pages: 1 2 3 4 [Next >>]

V or Vee Belt drives consist of a connection between two or more shafts by one or multiple rubber drive belts, these belts are pulled tight or "tensioned" such as to create friction between the sides of the pulleys and the belts, each of the shafts will have a pulley attached and the belt is tensioned between them. As the drive pulley turns the power is transferred to the driven pulley by the belt.

The efficiency longevity and success of the drive is dependent on several factors including the correct design and maintenance of the drive, some of these are:

The loose side of the drive and tight side tensions being correct.
Cooling of the drive - guards need to have ventilation.
The coefficient of friction between the belt material and the pulleys.
Total angle of contact around the pulleys. - Can be altered by use of a jockey or idler pulley.
Centrifugal force - as the belt speed increases it is lifted off the pulleys thus loosing traction.
The correct angle of the V-Pulley being maintained, generally 17 to 19 degrees allowing the belt to be wedged in place.
Prevention of foreign matter entering the drive. This could be dust, oil grease etc.
Correct alignment and concentricity of the pulleys.

Advantage of V Belt drives:

Installation tolerances are not so exact.
Absorb vibration and shocks.
Lubrication free.
If overloaded or jammed the belts will slip.
Higher torsional shaft loads can be handled by multiple belts.
Can transmit very high loads and speeds.
Can be use to step speed up or down by pulley diameter ratio changes.

Disadvantages of V-Belt drives:

Higher bearing loads on tensioned end of a drive shaft.
Bearing life may be reduced.
Rubber has a limited life and can be reduced further if contaminated.
Smaller diameter pulleys cause stresses to the rubber and fibre make up of belts .
Dust, Oil and other foreign matter will wear pulleys and reduce belt life, cause slipping and reduce the amount of energy transferred.
Failure can be sudden, snapped belts will stop the driven side of a drive even though the drive may still be turning.
Poor ventilation will cause overheating and denaturing of the rubber, subsequent slippage and polishing of the belt may occur.
Bulky ventilated guarding will have to be installed.
