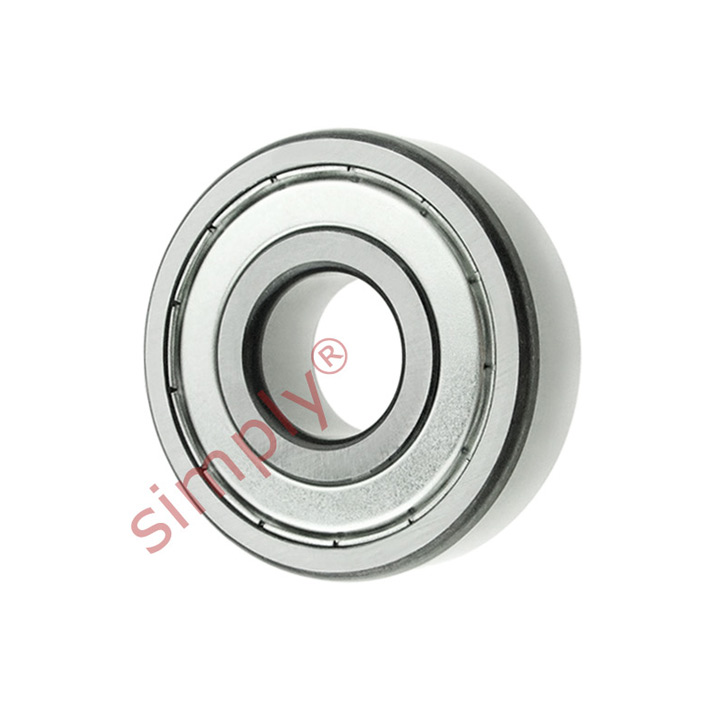

161012Z Metal Shielded Deep Groove Ball Bearing 12x30x8mm = 16101.2Z 16101ZZ  £7.07
ex. VAT
 10 + £6.29 each
 20 + £5.94 each
 30 + £5.87 each
Buy More - Save -->

Metal Shielded Deep Groove Ball Bearings : One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be easily removed for applications that only require 1 shield
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life,

Click and Drag to Zoom More
The image shown may not exactly represent the actual proportions or colour of this product
Tick Cars & Motorcycle repairs
Tick Transmission and Gearboxes
Tick Agricultural and Automotive
Tick Electric motors / Industry
Tick Pumps, Garden Machinerery
Tick Great value quality parts dispatched the same day


Supplied from the Worlds Leading Bearing Manufacturers
Supplied in the world's leading bearing brands

Principal Dimensions
  d = 12
  D = 30
  B = 8
  Dynamic Load = 5.07 kN
  Static Load = 2.36 kN
  Pu = 0.1
  Ref Speed = 56000 rpm
  Limiting Speed = 28000 rpm
  Mass = 0.023 kg
  d1 = 16.7
  d2 = -
  D2 = 24.8
  r1r2 min = 0.3
  da min = 14.4
  da max = -
  Da max = 27.6
  ra max = 0.3
  kr = 0.025
  f0 = 13

SKF Locknuts Lock Washers and Clips
Inside Diameter:  12mm
Outside Diameter:  30mm
Width:  8mm
Seals / Shields:  Metal Shielded
Clearance:  * Standard
