These bearings are widely used in transmissions, steering and automotive applications. Simply Bearings has a huge range of taper roller bearings - you'll find all of the major brands such as Timken, SNR, SKF, NTN, NSK, Codex, KOYO and FAG, as well as budget brands.

Single-Row Taper Roller Bearings

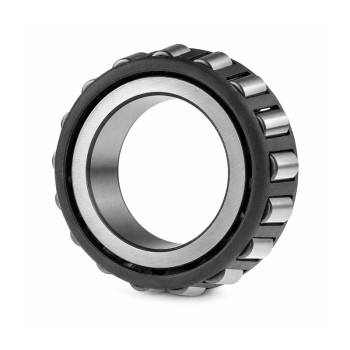

The single-row taper roller bearings are radial bearings that separate out into an inner and outer ring. The inner ring has a roller set, and the cone serves as the cage assembly. The loose outer ring is the cup. The single-row bearings can handle thrust loads in a single direction only, so they have to be used in pairs. One bearing is adjusted against another one that turns the shaft in the other direction.

These bearings can be used with both thrust and radial forces, but they are also suitable for tilting moments and combined loads. The load on the bearing is transferred at an angle towards the centre line of the shaft. The ability of the taper roller bearing to handle axial loads depends on this contact angle.

The single-row taper roller bearings have outer and inner raceways, and tapered rollers are arranged between them. The design of the tapered rollers makes them able to accommodate combined radial and axial loads.

Spacers and Conversion Washers

We also stock a taper roller bearing spacer for a section steering head set. This spacer is designed to fit H305014 and is typically for use in motorcycle steering heads. The bearings have a large bore to outer diameter ratio combined with a low height overall. This means they can be used where space is restricted, as it often is in automotive applications. The taper roller bearing washer conversion is used with a narrow section steering head.

These bearings are also available in sealed versions.

Sizes

Inside diameters are from 17mm to 50mm and outside diameters 40mm to 83.06mm. Widths available range from 13.25mm to 36mm.

Simply Bearings typically stocks over 2,500 of these bearings in various sizes and from different manufacturers. If you'd like to talk to someone about your particular application, call our team - they know what they're talking about in terms of bearing uses, and they also know our stock thoroughly. You can talk through what you need with them - they are extremely helpful.

Delivery is fast and reliable, and we offer a no-quibble refund, so you can order with confidence from us.
