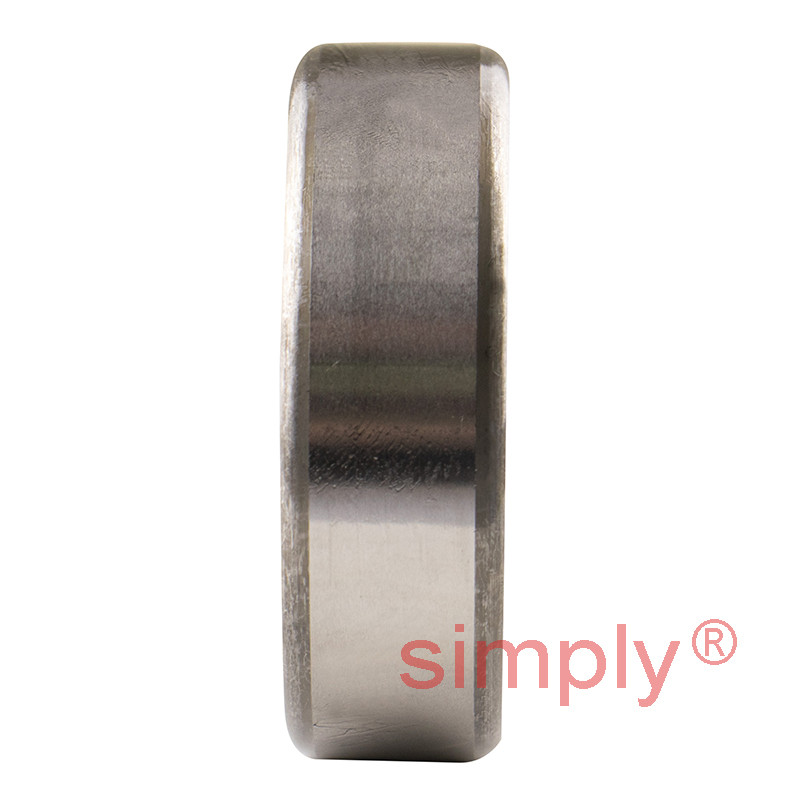

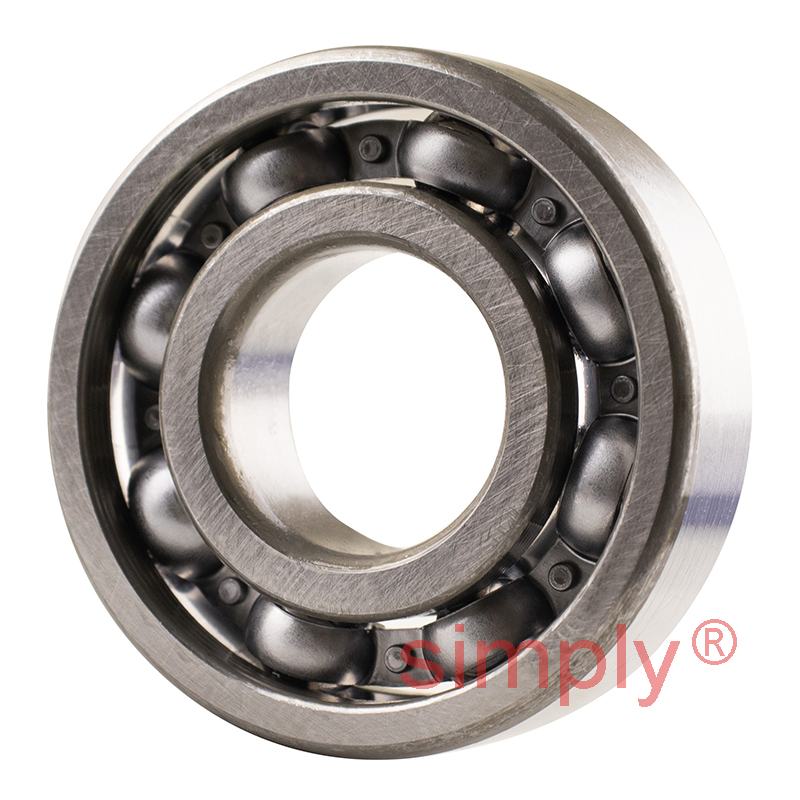

Major Branded 6204C4 Open Deep Groove Ball Bearing 20x47x14mm
Equivalent to: 6204 6204C4
What is C4? [Click Here]
£9.92
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £8.83 each |
| 19+ | £8.33 each |
| 29+ | £8.23 each |
| 39+ | £8.14 each |
| 49+ | £8.04 each |
| 74+ | £7.94 each |
| 99+ | £7.44 each |
In Stock
| d | = | 20mm |
| D | = | 47mm |
| B | = | 14mm |
| Dynamic load C | = | 13.5 kN |
| Static load Co | = | 6.55 kN |
| Fatigue load limit Pu | = | 0.28 kN |
| Reference speed | = | 32000 rpm |
| Limiting speed | = | 20000 rpm |
| Mass | = | 0.11 kg |
| d1 | = | 28.8mm |
| D1 | = | 38.5mm |
| D2 | = | 40.6mm |
| r1r2 min | = | 1mm |
| da min | = | 25.6mm |
| Da max | = | 41.4mm |
| ra max | = | 1mm |
| Calc factor Kr | = | 0.025 |
| Calc factor | = | 13 |
