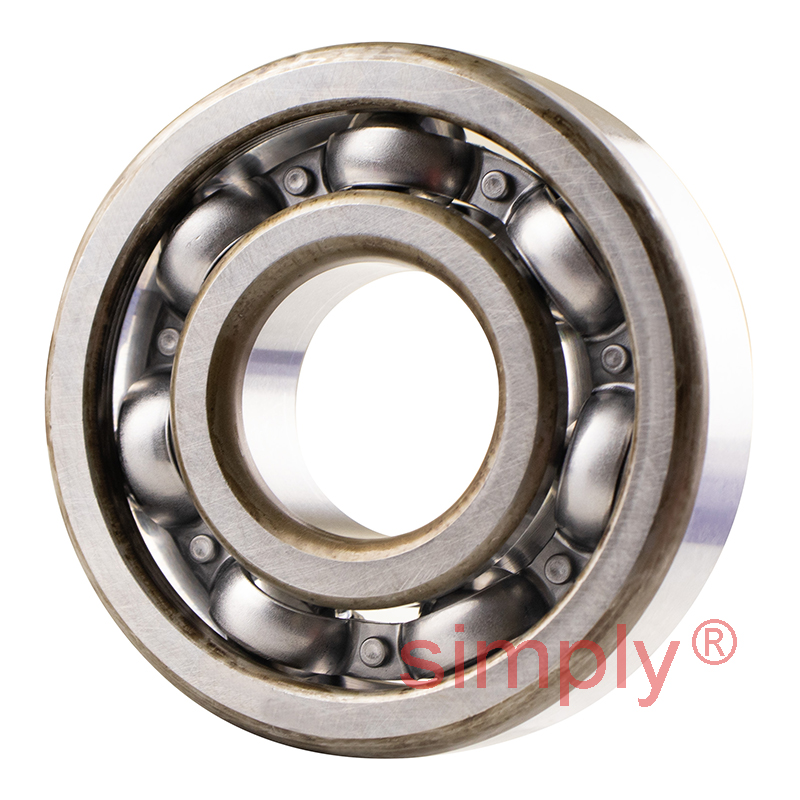

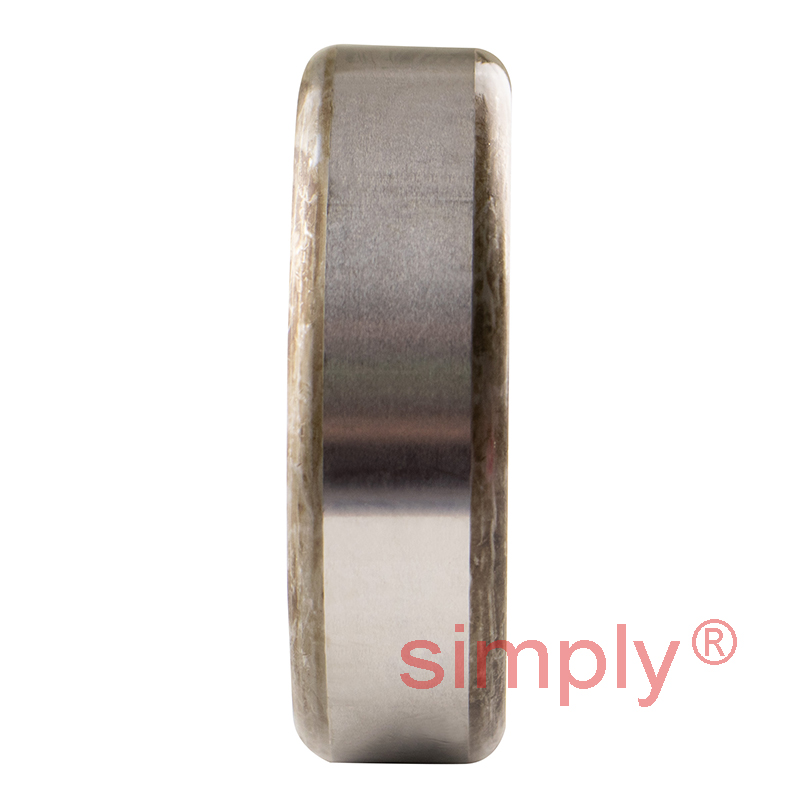

Major Branded 6304C4 Open Deep Groove Ball Bearing 20x52x15mm
Equivalent to: 6304 6304C4
What is C4? [Click Here]
£10.09
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £8.98 each |
| 19+ | £8.48 each |
| 29+ | £8.38 each |
| 39+ | £8.28 each |
| 49+ | £8.18 each |
| 74+ | £8.07 each |
| 99+ | £7.57 each |
In Stock
| d | = | 20mm |
| D | = | 52mm |
| B | = | 15mm |
| Dynamic load C | = | 16.8 kN |
| Static load Co | = | 7.8 kN |
| Fatigue load limit Pu | = | 0.335 kN |
| Reference speed | = | 30000 rpm |
| Limiting speed | = | 19000 rpm |
| Mass | = | 0.14 kg |
| d1 | = | 30.4mm |
| D1 | = | 41.6mm |
| D2 | = | 44.8mm |
| r1r2 min | = | 1.1mm |
| da min | = | 27mm |
| Da max | = | 45mm |
| ra max | = | 1mm |
| Calc factor Kr | = | 0.03 |
| Calc factor | = | 12 |
