Average Rating (4 Reviews)

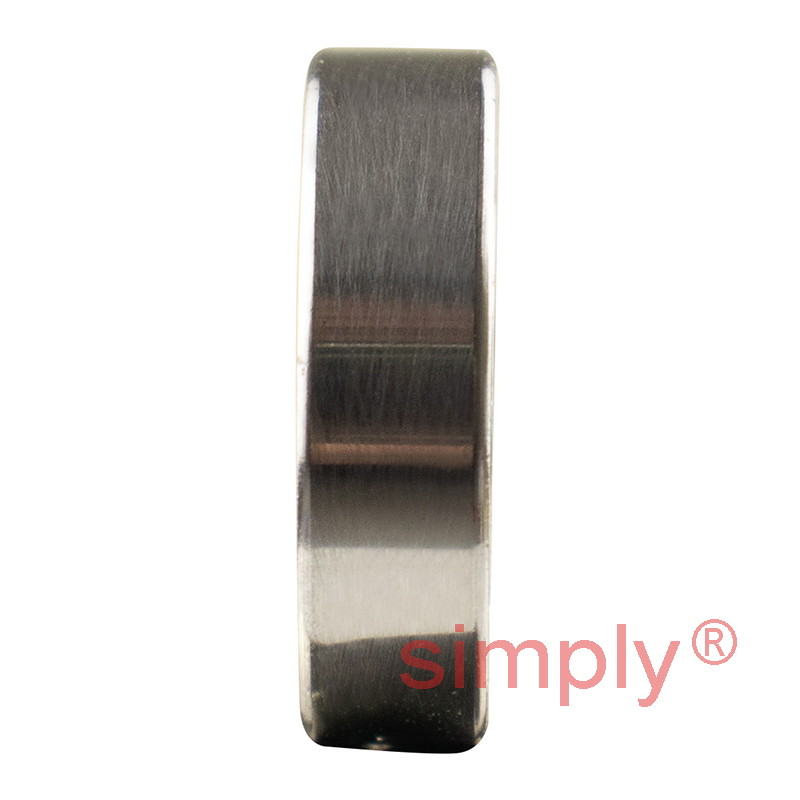

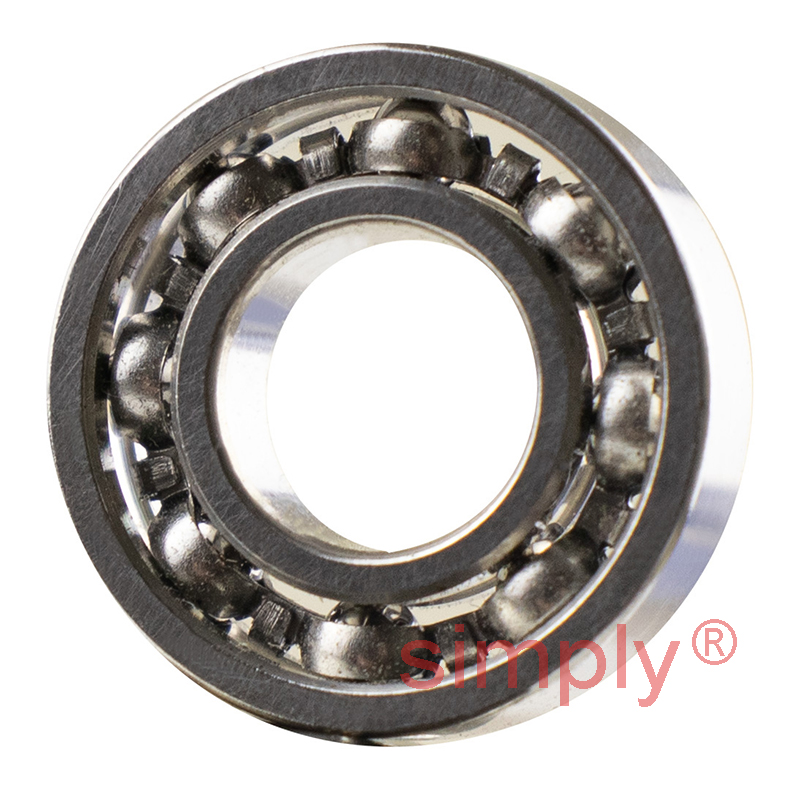

Major Branded 618/6 Open Deep Groove Ball Bearing 6x13x3.5mm
Equivalent to: 686
£6.74
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £6.00 each |
| 19+ | £5.66 each |
| 29+ | £5.60 each |
| 39+ | £5.53 each |
| 49+ | £5.46 each |
| 74+ | £5.39 each |
| 99+ | £5.06 each |
In Stock
| d | = | 6mm |
| D | = | 13mm |
| B | = | 3.5mm |
| Dynamic load C | = | 0.884 kN |
| Static load Co | = | 0.345 kN |
| Fatigue load limit Pu | = | 0.015 kN |
| Reference speed | = | 110000 rpm |
| Limiting speed | = | 67000 rpm |
| Mass | = | 0.002 kg |
| d1 | = | 7.9mm |
| D1 | = | 11.2mm |
| r1r2 min | = | 0.15mm |
| da min | = | 6.8mm |
| Da max | = | 12.2mm |
| ra max | = | 0.1mm |
| Calc factor Kr | = | 0.015 |
| Calc factor | = | 11 |
