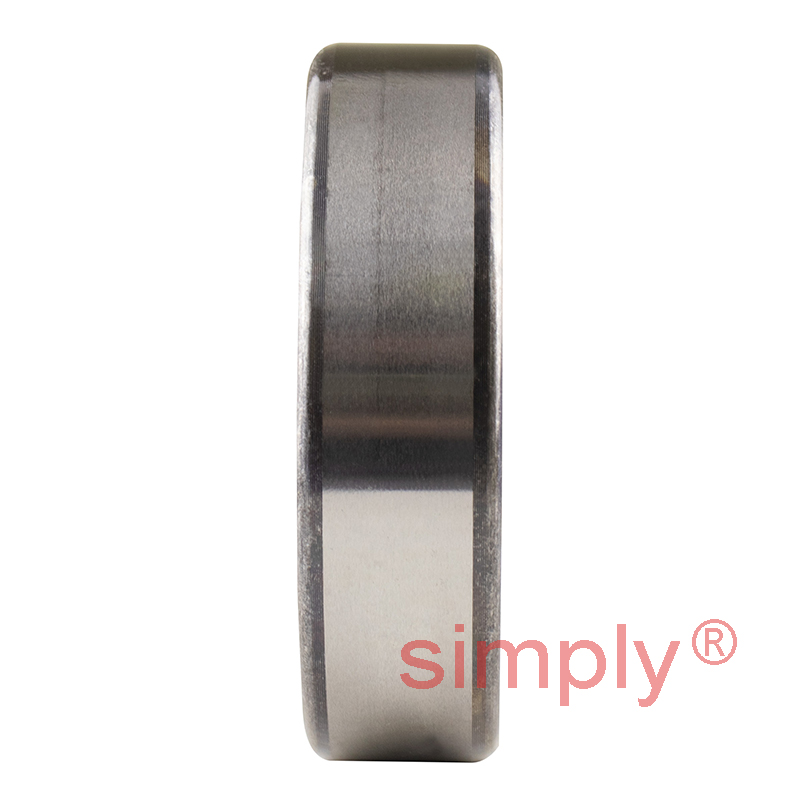

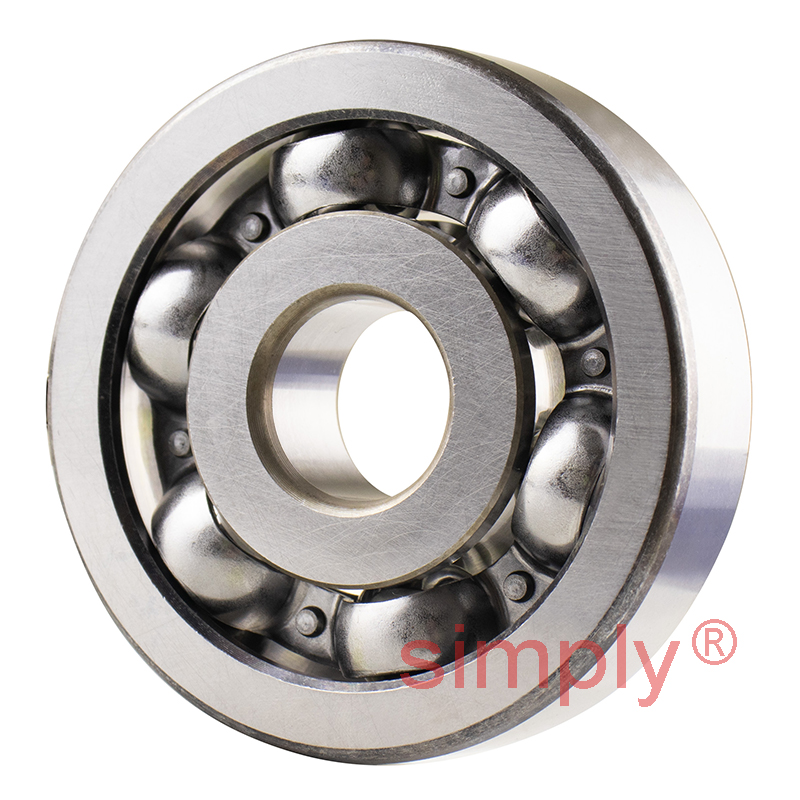

FAG 6404C3 Open Deep Groove Ball Bearing 20x72x19mm
Equivalent to: 6404 6404C3
What is C3? [Click Here]
£30.89
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £27.49 each |
| 19+ | £25.95 each |
| 29+ | £25.64 each |
| 39+ | £25.33 each |
| 49+ | £25.02 each |
| 74+ | £24.71 each |
| 99+ | £23.17 each |
In Stock
| d | = | 20mm |
| D | = | 72mm |
| B | = | 19mm |
| Dynamic load C | = | 30.7 kN |
| Static load Co | = | 15 kN |
| Fatigue load limit Pu | = | 0.64 kN |
| Reference speed | = | 24000 rpm |
| Limiting speed | = | 15000 rpm |
| Mass | = | 0.4 kg |
| d1 | = | 37.1mm |
| D1 | = | 54.8mm |
| r1r2 min | = | 1.1mm |
| da min | = | 29mm |
| Da max | = | 63mm |
| ra max | = | 1mm |
| Calc factor Kr | = | 0.035 |
| Calc factor | = | 11 |
