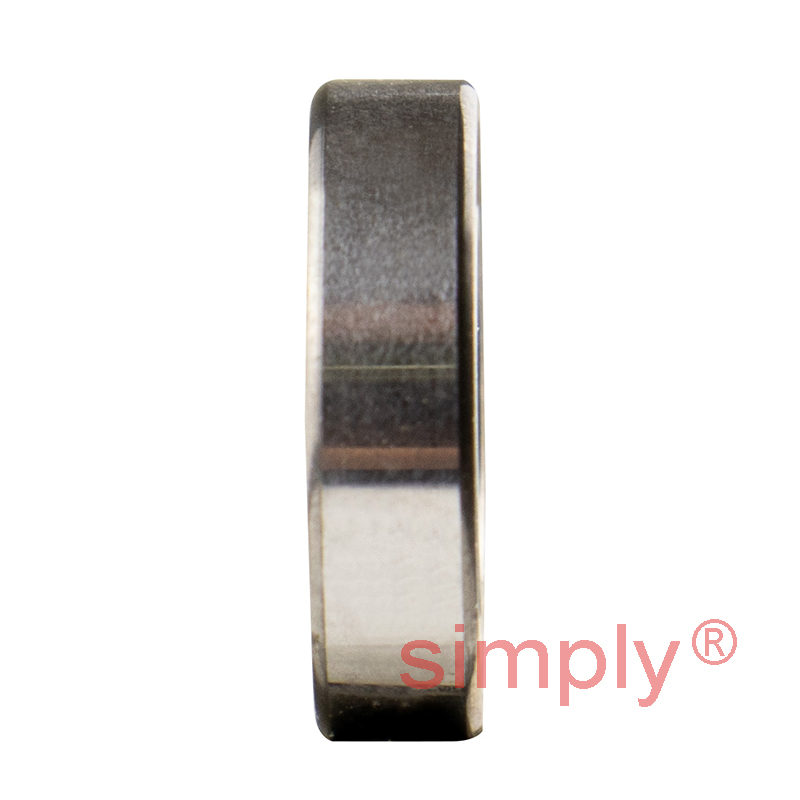

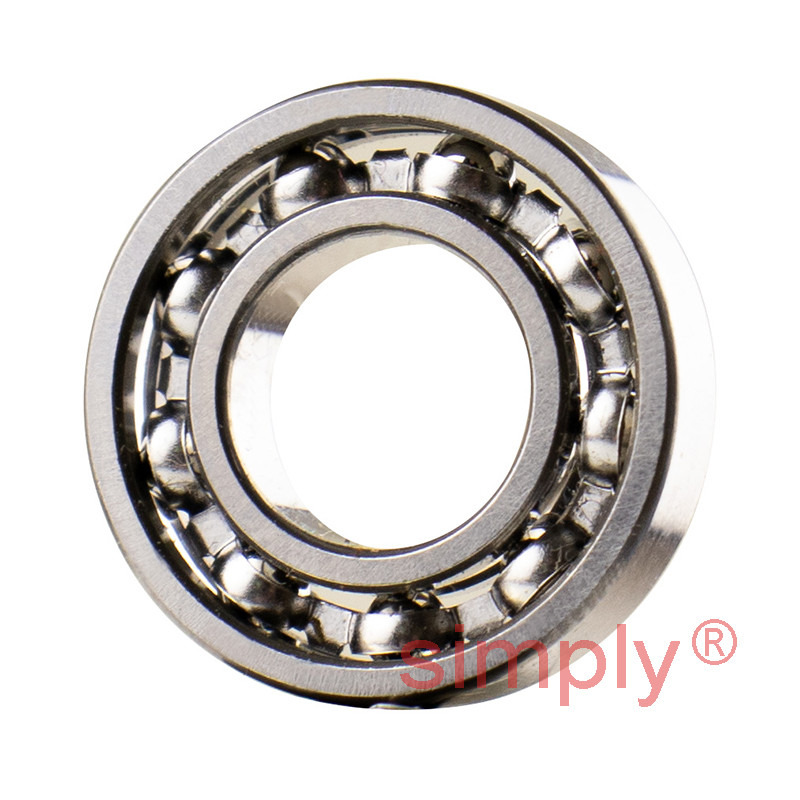

Major Branded 618/7 Open Deep Groove Ball Bearing 7x14x3.5mm
Equivalent to: 687
£6.88
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £6.12 each |
| 19+ | £5.78 each |
| 29+ | £5.71 each |
| 39+ | £5.64 each |
| 49+ | £5.57 each |
| 74+ | £5.50 each |
| 99+ | £5.16 each |
In Stock
| d | = | 7mm |
| D | = | 14mm |
| B | = | 3.5mm |
| Dynamic load C | = | 0.956 kN |
| Static load Co | = | 0.4 kN |
| Fatigue load limit Pu | = | 0.017 kN |
| Reference speed | = | 100000 rpm |
| Limiting speed | = | 63000 rpm |
| Mass | = | 0.0022 kg |
| d1 | = | 8.9mm |
| D1 | = | 12.2mm |
| r1r2 min | = | 0.15mm |
| da min | = | 7.8mm |
| Da max | = | 13.2mm |
| ra max | = | 0.1mm |
| Calc factor Kr | = | 0.015 |
| Calc factor | = | 11 |
