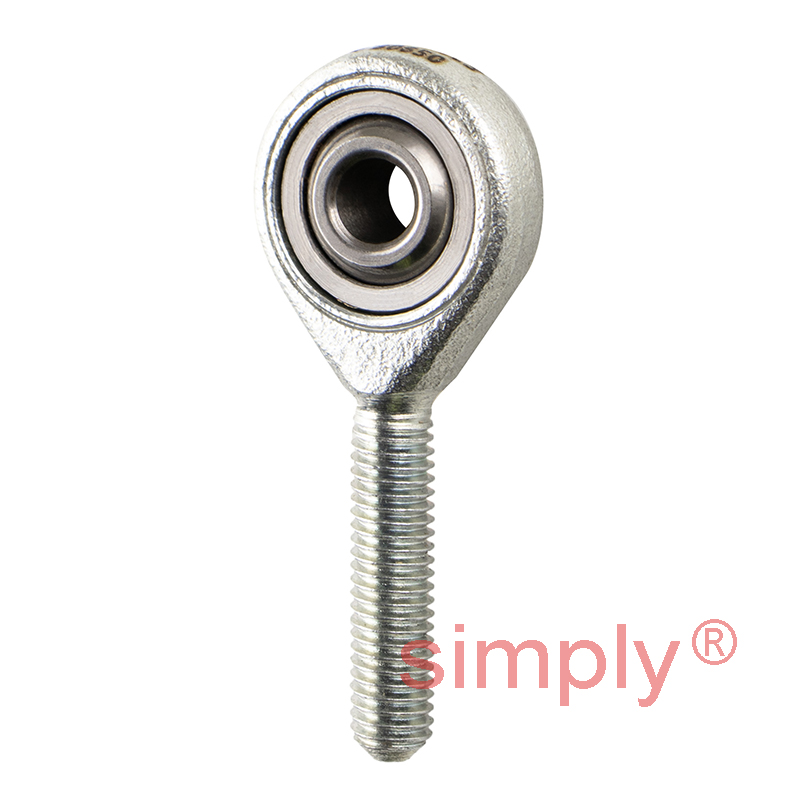

Budget POS5L Left Hand Steel / PTFE Lined Plain Male Rod End 5mm Bore M5x0.8 Thread
£12.60
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £11.21 each |
| 19+ | £10.58 each |
| 29+ | £10.45 each |
| 39+ | £10.33 each |
| 49+ | £10.20 each |
| 74+ | £10.08 each |
| 99+ | £9.45 each |
| 199+ | £9.32 each |
| 249+ | £9.19 each |
| 499+ | £9.07 each |
| 999+ | £8.82 each |
In Stock
| d | = | 5mm |
| B | = | 8mm |
| r1 | = | 0.3mm |
| C1 | = | 6mm |
| d1 max | = | 7.7mm |
| d2 | = | 16mm |
| d3 | = | M5x0.8 |
| h | = | 33mm |
| l1 | = | 20mm |
| l2 | = | 41mm |
| Ball diameter | = | 7/16 inch |
| Dynamic load Cr | = | 3.3 kN |
| Static load Cor | = | 3.4 kN |
| Max angle α | = | 13 |
| Weight | = | 0.0125 kg |
