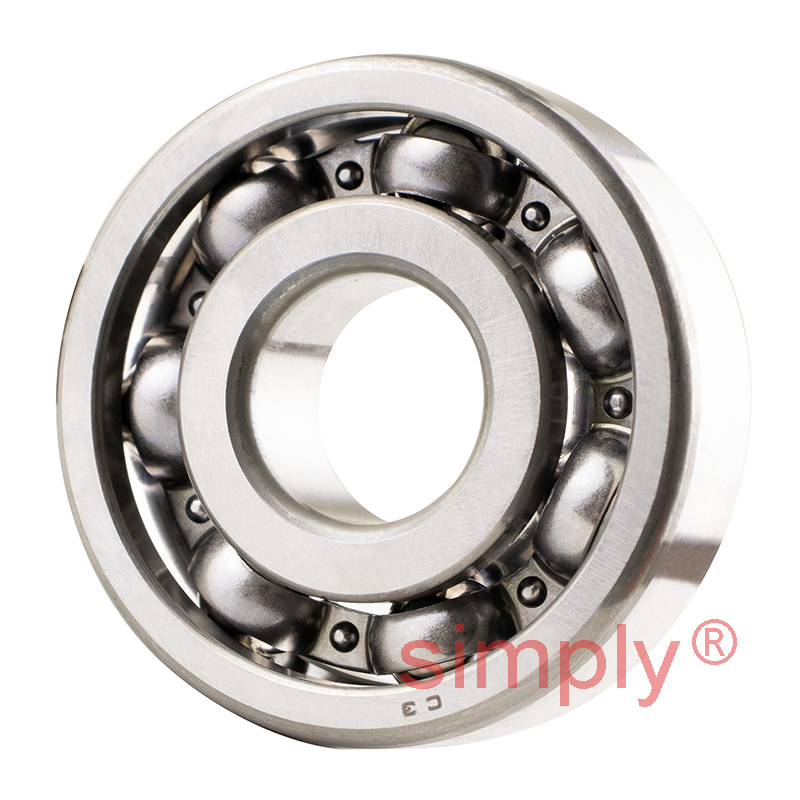

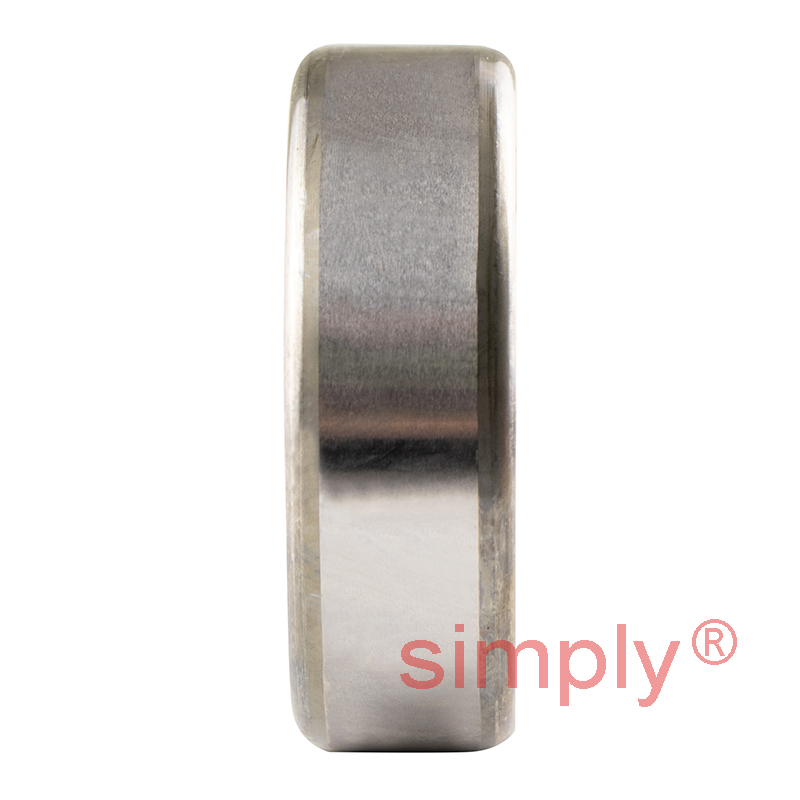

Major Branded 6302/C3 Open Deep Groove Ball Bearing 15x42x13mm
Equivalent to: 6302 6302C3
What is C3? [Click Here]
£17.62
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £15.68 each |
| 19+ | £14.80 each |
| 29+ | £14.62 each |
| 39+ | £14.45 each |
| 49+ | £14.27 each |
| 74+ | £14.09 each |
| 99+ | £13.21 each |
In Stock
| d | = | 15mm |
| D | = | 42mm |
| B | = | 13mm |
| Dynamic load C | = | 11.9 kN |
| Static load Co | = | 5.4 kN |
| Fatigue load limit Pu | = | 0.228 kN |
| Reference speed | = | 38000 rpm |
| Limiting speed | = | 24000 rpm |
| Mass | = | 0.082 kg |
| d1 | = | 23.7mm |
| D1 | = | -mm |
| D2 | = | 36.23mm |
| r1r2 min | = | 1mm |
| da min | = | 20.6mm |
| Da max | = | 36.4mm |
| ra max | = | 1mm |
| Calc factor Kr | = | 0.03 |
| Calc factor | = | 12 |
