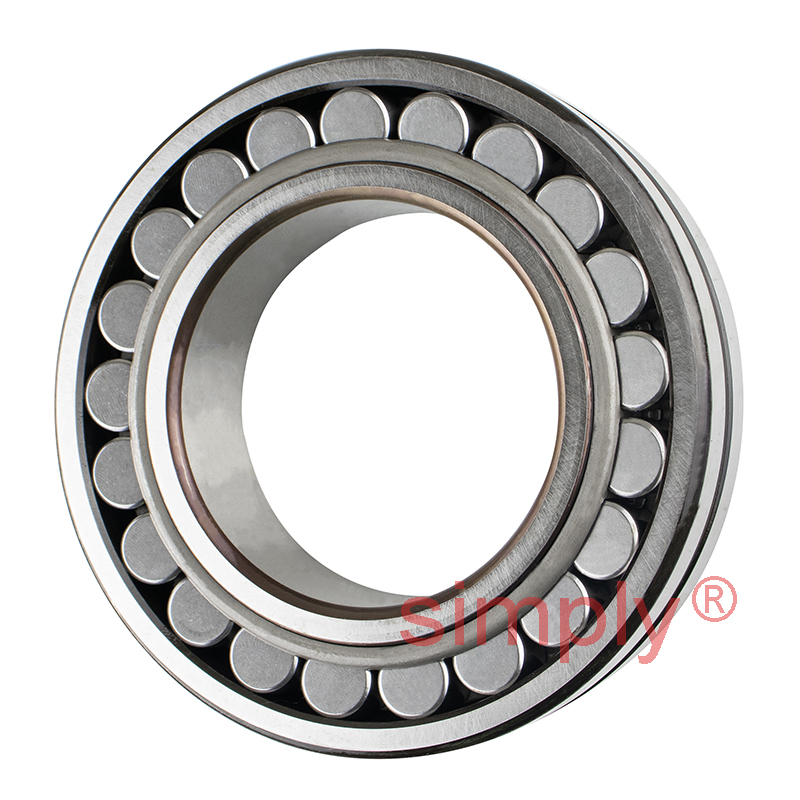

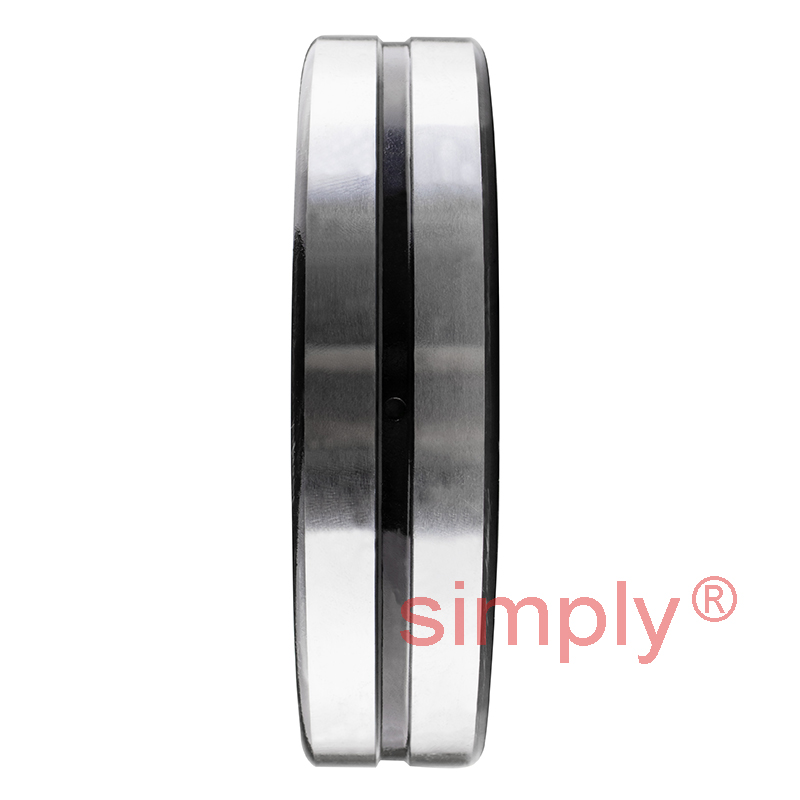

SKF 22216E Spherical Roller Bearing with Cylindrical Bore 80x140x33mm
£178.46
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £158.83 each |
| 4+ | £149.91 each |
| 9+ | £148.12 each |
| 19+ | £146.34 each |
| 29+ | £144.55 each |
| 39+ | £142.77 each |
| 49+ | £133.85 each |
| 59+ | £132.06 each |
| 249+ | £130.28 each |
| 499+ | £128.49 each |
| 999+ | £124.92 each |
In Stock
| Dimensions | ||
| d | = | 80mm |
| D | = | 140mm |
| B | = | 33mm |
| D1 | = | 124mm |
| d2 | = | 94.7mm |
| r1r2 min | = | 2mm |
| b | = | 5.5mm |
| K | = | 3mm |
| da min | = | 91mm |
| Da max | = | 129mm |
| ra max | = | 2mm |
| Speeds, Loads and Weights | ||
| Dynamic load C | = | 236 kN |
| Static load Co | = | 270 kN |
| Fatigue load limit Pu | = | 29 kN |
| Reference speed | = | 4300 rpm |
| Limiting speed | = | 6000 rpm |
| Weight | = | 2.1 kg |
| Factors | ||
| Calculation factor e | = | 0.22 |
| Calculation factor Y1 | = | 3 |
| Calculation factor Y2 | = | 4.6 |
| Calculation factor Y0 | = | 2.8 |
