Average Rating (3 Reviews)

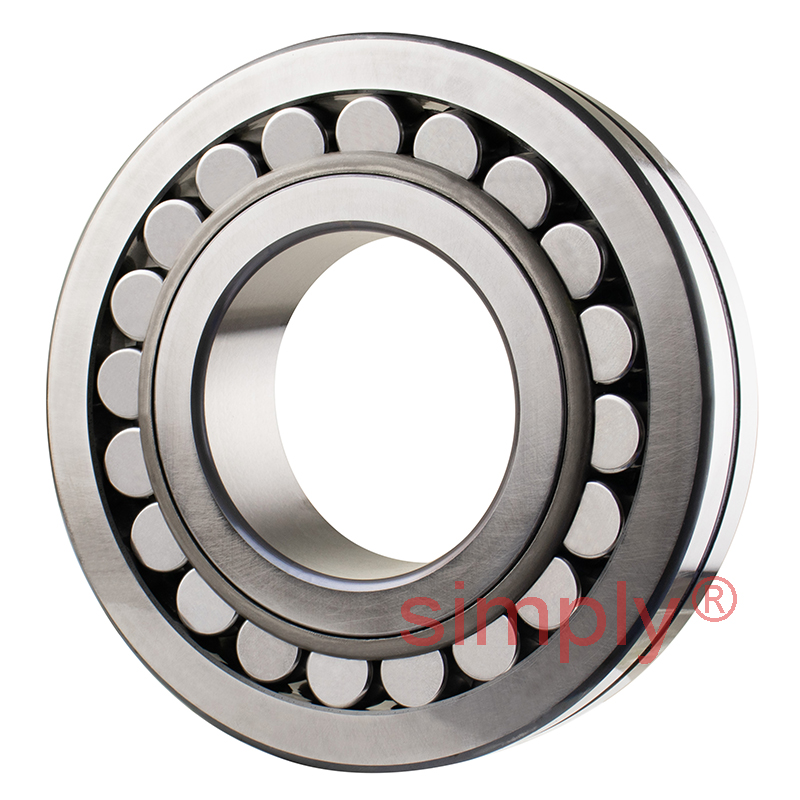

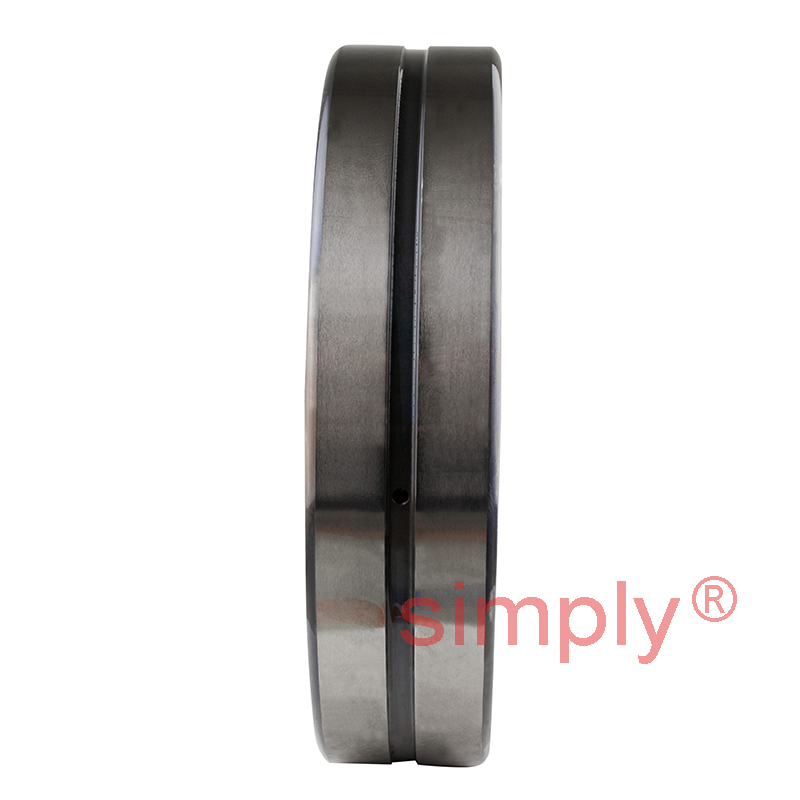

SKF 21316E Spherical Roller Bearing with Cylindrical Bore 80x170x39mm
£218.52
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £194.49 each |
| 4+ | £183.56 each |
| 9+ | £181.37 each |
| 19+ | £179.19 each |
| 29+ | £177.00 each |
| 39+ | £174.82 each |
| 49+ | £163.89 each |
| 59+ | £161.71 each |
| 249+ | £159.52 each |
| 499+ | £157.34 each |
| 999+ | £152.97 each |
In Stock
| Dimensions | ||
| d | = | 80mm |
| D | = | 170mm |
| B | = | 39mm |
| D1 | = | 141mm |
| d2 | = | 106mm |
| r1r2 min | = | 2.1mm |
| b | = | 5.5mm |
| K | = | 3mm |
| da min | = | 92mm |
| Da max | = | 158mm |
| ra max | = | 2mm |
| Speeds, Loads and Weights | ||
| Dynamic load C | = | 325 kN |
| Static load Co | = | 375 kN |
| Fatigue load limit Pu | = | 39 kN |
| Reference speed | = | 3800 rpm |
| Limiting speed | = | 5300 rpm |
| Weight | = | 4.45 kg |
| Factors | ||
| Calculation factor e | = | 0.24 |
| Calculation factor Y1 | = | 2.8 |
| Calculation factor Y2 | = | 4.2 |
| Calculation factor Y0 | = | 2.8 |
