Average Rating (7 Reviews)

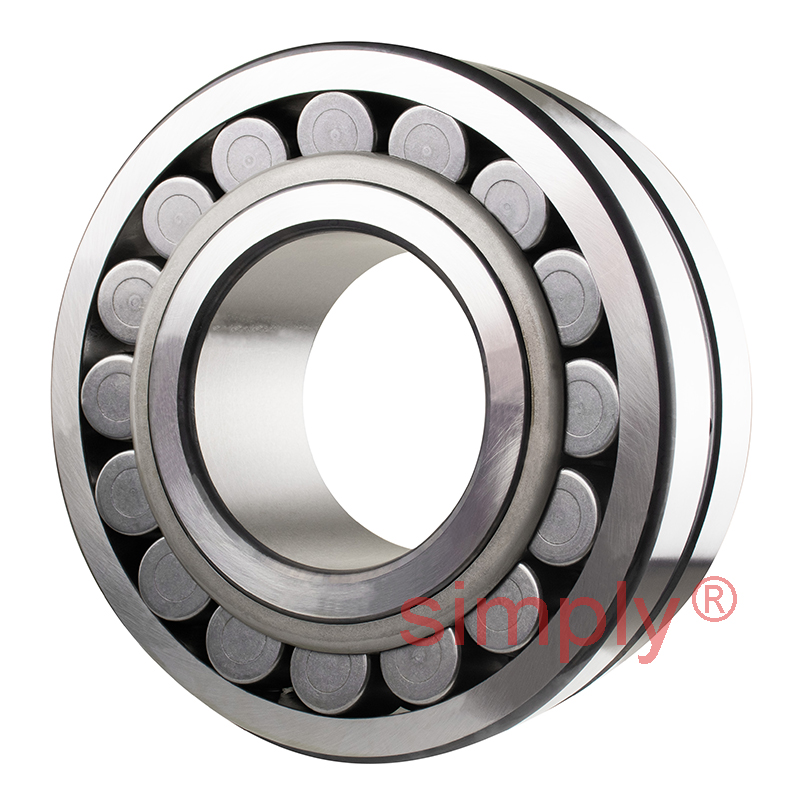

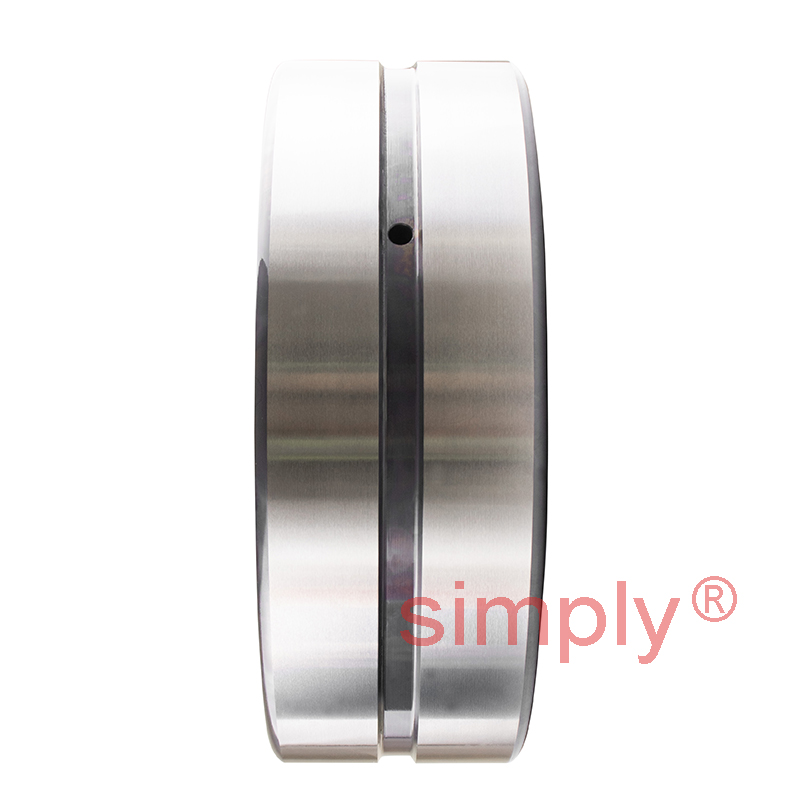

SKF 22320E Spherical Roller Bearing with Cylindrical Bore 100x215x73mm
£517.18
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £460.29 each |
| 4+ | £434.43 each |
| 9+ | £429.26 each |
| 19+ | £424.09 each |
| 29+ | £418.92 each |
| 39+ | £413.74 each |
| 49+ | £387.89 each |
| 59+ | £382.71 each |
| 249+ | £377.54 each |
| 499+ | £372.37 each |
| 999+ | £362.03 each |
In Stock
| Dimensions | ||
| d | = | 100mm |
| D | = | 215mm |
| B | = | 73mm |
| D1 | = | 184mm |
| d2 | = | 130mm |
| r1r2 min | = | 3mm |
| b | = | 11.1mm |
| K | = | 6mm |
| da min | = | 114mm |
| Da max | = | 201mm |
| ra max | = | 2.5mm |
| Speeds, Loads and Weights | ||
| Dynamic load C | = | 815 kN |
| Static load Co | = | 950 kN |
| Fatigue load limit Pu | = | 88 kN |
| Reference speed | = | 2400 rpm |
| Limiting speed | = | 3000 rpm |
| Weight | = | 13.5 kg |
| Factors | ||
| Calculation factor e | = | 0.33 |
| Calculation factor Y1 | = | 2 |
| Calculation factor Y2 | = | 3 |
| Calculation factor Y0 | = | 2 |
