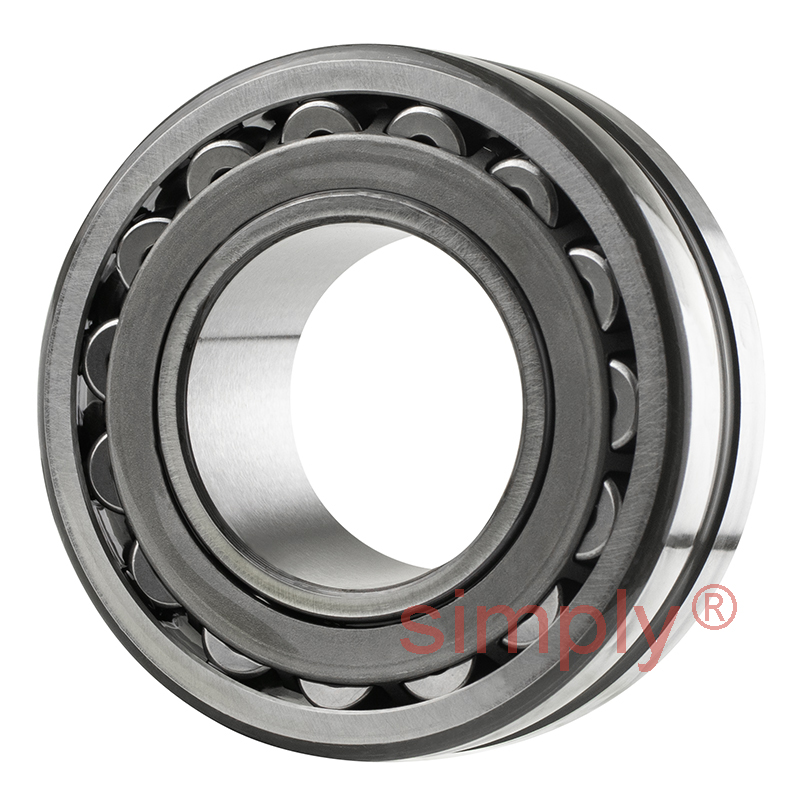

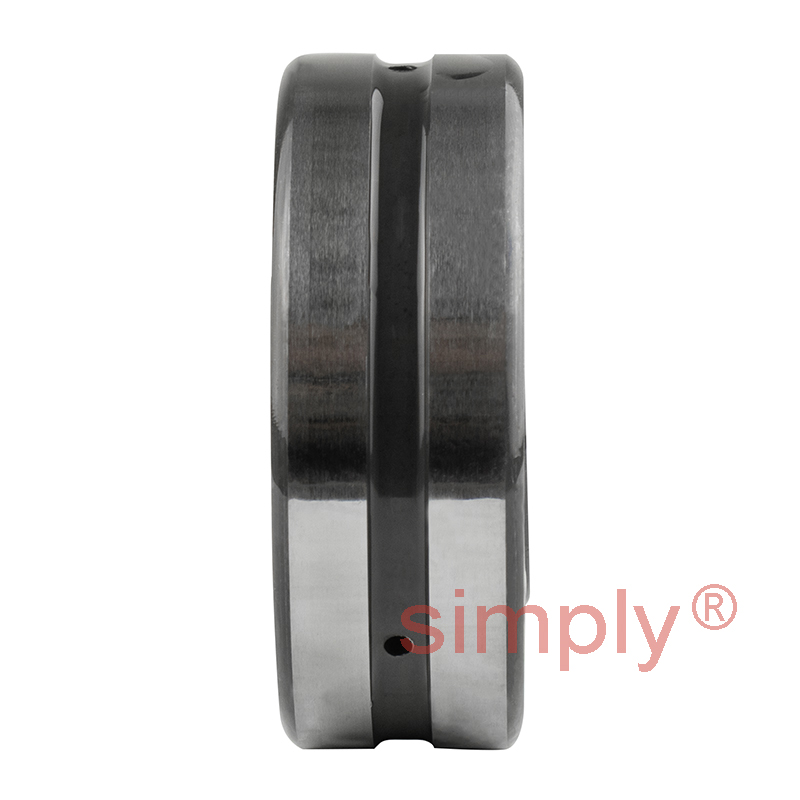

SKF 22205EK Spherical Roller Bearing with Taper Bore 25x52x18mm
Equivalent to: 22205K
£62.30
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £55.44 each |
| 4+ | £52.33 each |
| 9+ | £51.71 each |
| 19+ | £51.08 each |
| 29+ | £50.46 each |
| 39+ | £49.84 each |
| 49+ | £46.72 each |
| 59+ | £46.10 each |
| 249+ | £45.48 each |
| 499+ | £44.85 each |
| 999+ | £43.61 each |
In Stock
| Dimensions | ||
| d | = | 25mm |
| D | = | 52mm |
| B | = | 18mm |
| D1 | = | 44.2mm |
| d2 | = | 31.2mm |
| r1r2 min | = | 1mm |
| b | = | 3.7mm |
| K | = | 2mm |
| da min | = | 30.6mm |
| Da max | = | 46.4mm |
| ra max | = | 1mm |
| Speeds, Loads and Weights | ||
| Dynamic load C | = | 49 kN |
| Static load Co | = | 44 kN |
| Fatigue load limit Pu | = | 4.75 kN |
| Reference speed | = | 13000 rpm |
| Limiting speed | = | 17000 rpm |
| Weight | = | 0.26 kg |
| Factors | ||
| Calculation factor e | = | 0.35 |
| Calculation factor Y1 | = | 1.9 |
| Calculation factor Y2 | = | 2.9 |
| Calculation factor Y0 | = | 1.8 |
| Matching Adaptor Sleeves | ||
| Sleeve No. | = | H305 |
