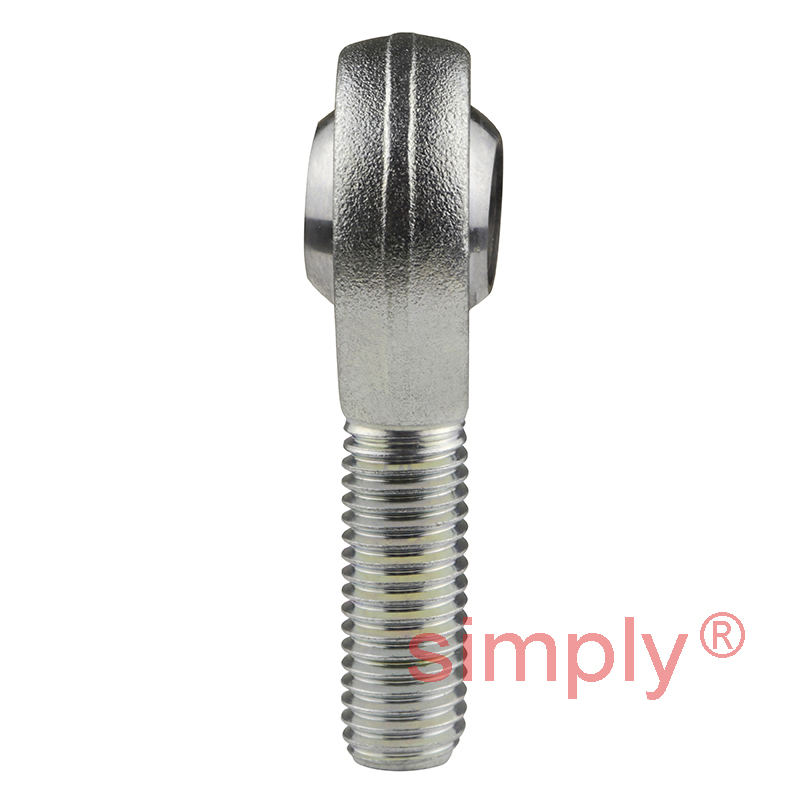

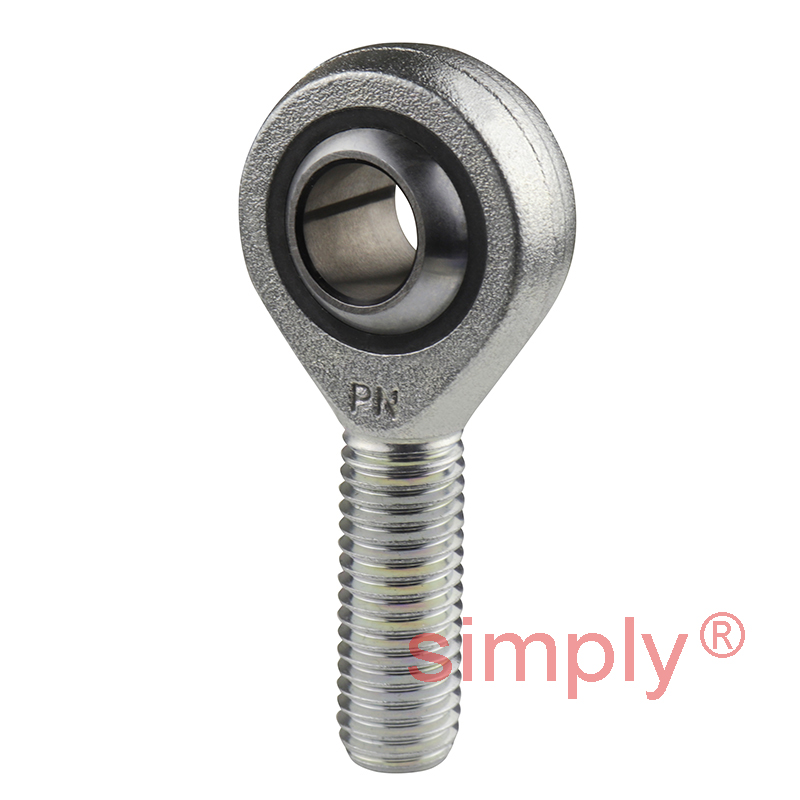

SKF SAKB14F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M14 Thread
Equivalent to: MS-M14
£68.10
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £60.61 each |
| 19+ | £57.20 each |
| 29+ | £56.52 each |
| 39+ | £55.84 each |
| 49+ | £55.16 each |
| 74+ | £54.48 each |
| 99+ | £51.07 each |
In Stock
| d | = | 14mm |
| d2 max | = | 37mm |
| G | = | M14 |
| B | = | 19mm |
| C1 max | = | 13.5mm |
| h | = | 60mm |
| a | = | 16deg |
| Dynamic load C | = | 17 kN |
| Static load Co | = | 25.5 kN |
| Weight | = | 0.13 kg |
| dk | = | 25.4mm |
| l1 min | = | 36mm |
| l2 max | = | 80mm |
| r1 min | = | 0.3mm |
