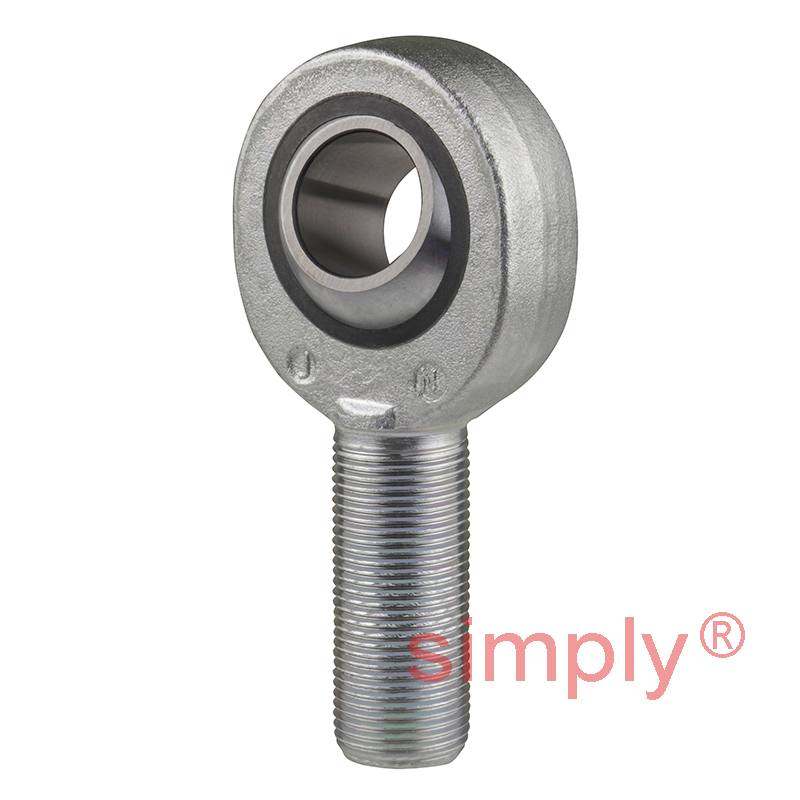

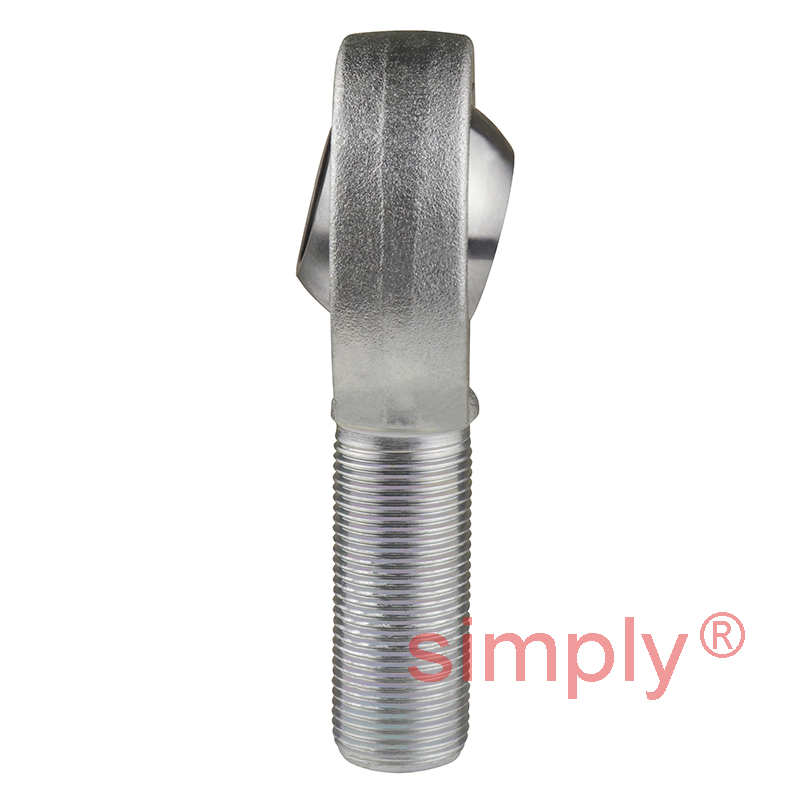

SKF SAKB20F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M20x1.5 Thread
Equivalent to: MS-M20
£60.44
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £53.79 each |
| 19+ | £50.77 each |
| 29+ | £50.16 each |
| 39+ | £49.56 each |
| 49+ | £48.96 each |
| 74+ | £48.35 each |
| 99+ | £45.33 each |
In Stock
| d | = | 20mm |
| d2 max | = | 51mm |
| G | = | M20x1.5 |
| B | = | 25mm |
| C1 max | = | 18mm |
| h | = | 78mm |
| a | = | 14deg |
| Dynamic load C | = | 31 kN |
| Static load Co | = | 50 kN |
| Weight | = | 0.37 kg |
| dk | = | 34.9mm |
| l1 min | = | 45mm |
| l2 max | = | 106mm |
| r1 min | = | 0.3mm |
