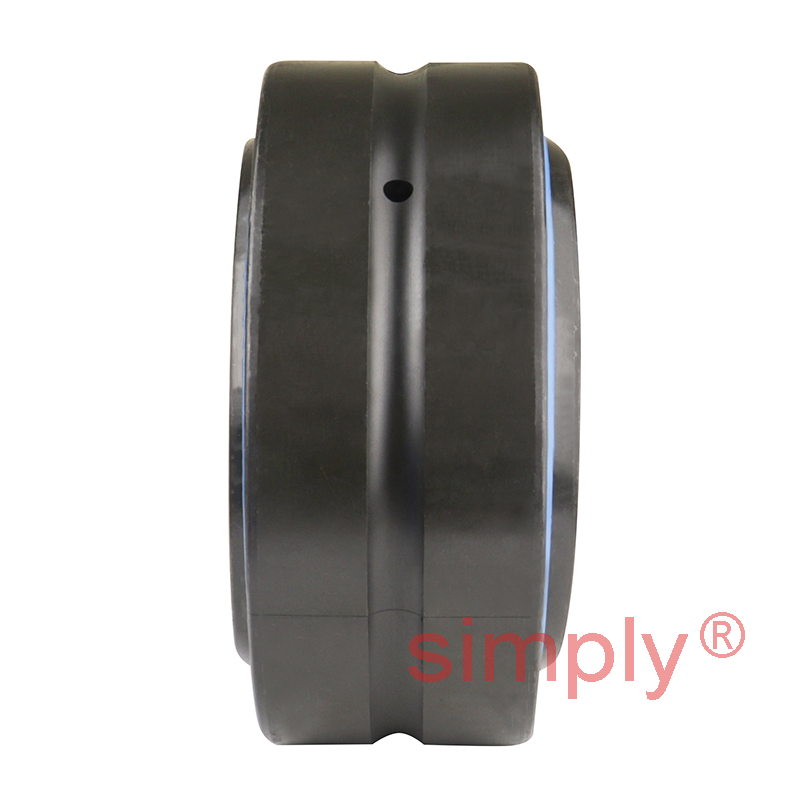

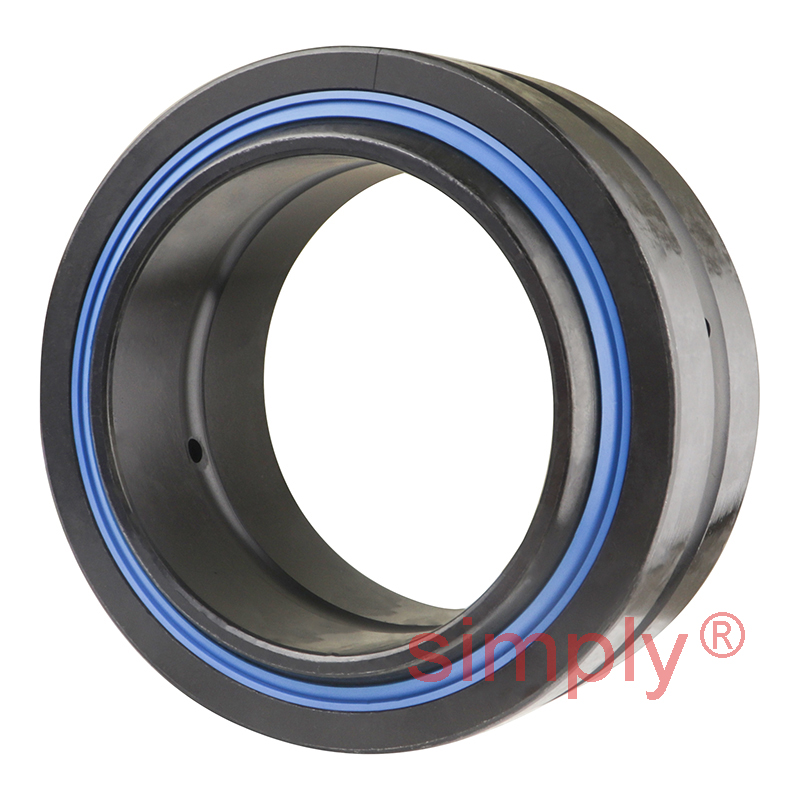

SKF GE90ES2RS Double Sealed Spherical Plain Bearing 90x130x50x60mm
£202.33
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £180.07 each |
| 19+ | £169.96 each |
| 29+ | £167.93 each |
| 39+ | £165.91 each |
| 49+ | £163.89 each |
| 74+ | £161.86 each |
| 99+ | £151.75 each |
| 199+ | £149.72 each |
| 249+ | £147.70 each |
| 499+ | £145.68 each |
| 999+ | £141.63 each |
In Stock
| d | = | 90mm |
| D | = | 130mm |
| B | = | 60mm |
| C | = | 50mm |
| Max misalignment angle | = | 5 degrees |
| Dynamic load | = | 488 kN |
| Static load | = | 2440 kN |
| dk | = | 115mm |
| b | = | 9.5mm |
| b1 | = | 9.5mm |
| M | = | 5mm |
| r1 min | = | 1mm |
| r2 min | = | 1mm |
| da min | = | 97.4mm |
| da max | = | 98.1mm |
| Da max | = | 123.5mm |
| Da min | = | 112.9mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
| Weight | = | 2.75 kg |
