Average Rating (1 Reviews)

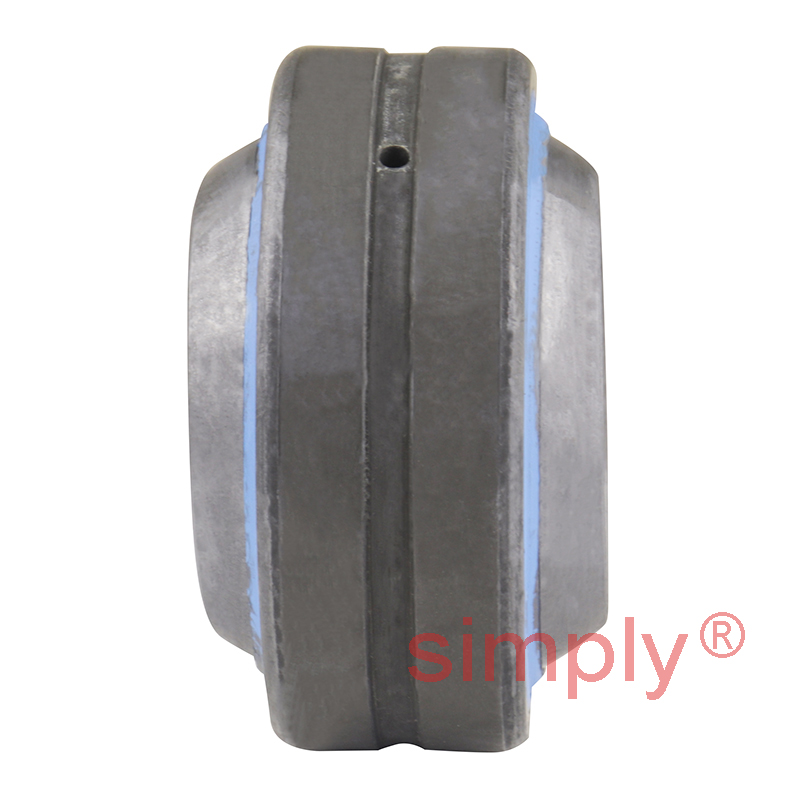

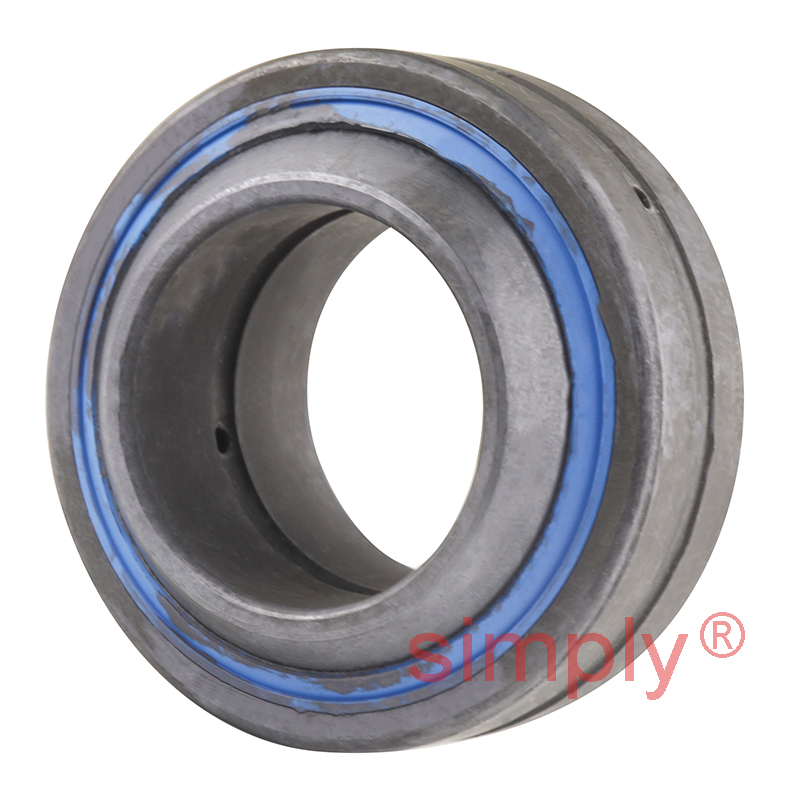

SKF GEH35ES2RS Sealed Spherical Plain Bearing 35x62x22x35mm
£44.58
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £39.67 each |
| 19+ | £37.45 each |
| 29+ | £37.00 each |
| 39+ | £36.55 each |
| 49+ | £36.11 each |
| 74+ | £35.66 each |
| 99+ | £33.43 each |
| 199+ | £32.99 each |
| 249+ | £32.54 each |
| 499+ | £32.10 each |
| 999+ | £31.20 each |
In Stock
| d | = | 35mm |
| D | = | 62mm |
| B | = | 35mm |
| C | = | 22mm |
| Max misalignment angle | = | 15 degrees |
| Dynamic load | = | 100 kN |
| Static load | = | 500 kN |
| dk | = | 53mm |
| b | = | 3.9mm |
| b1 | = | 3.9mm |
| M | = | 2.5mm |
| r1 min | = | 0.6mm |
| r2 min | = | 1mm |
| da min | = | 38.8mm |
| da max | = | 39.8mm |
| Da max | = | 57.8mm |
| Da min | = | 54.5mm |
| ra max | = | 0.6mm |
| rb max | = | 1mm |
| Weight | = | 0.47 kg |
