Average Rating (3 Reviews)

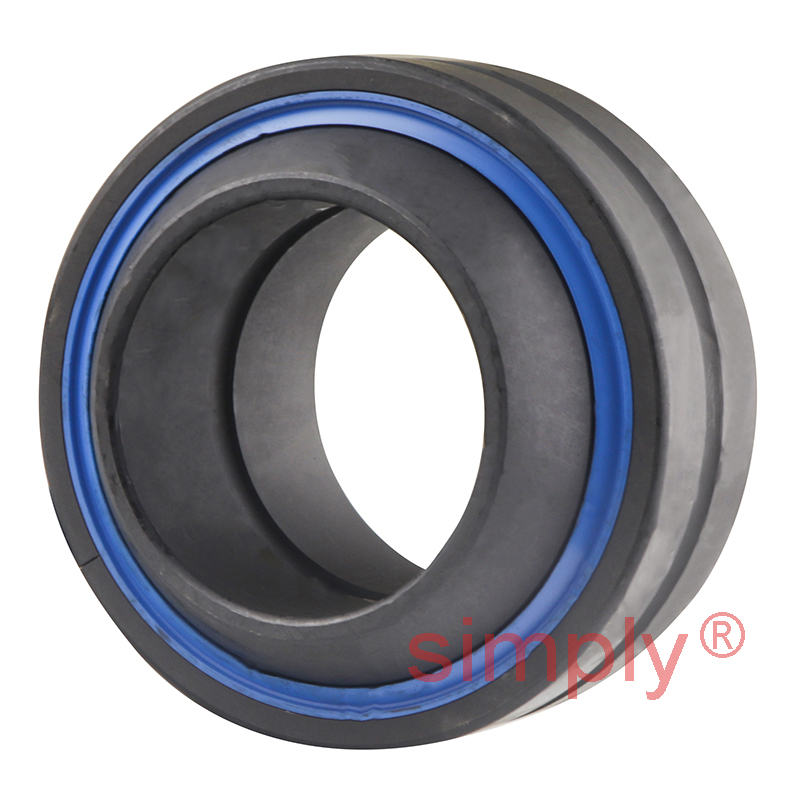

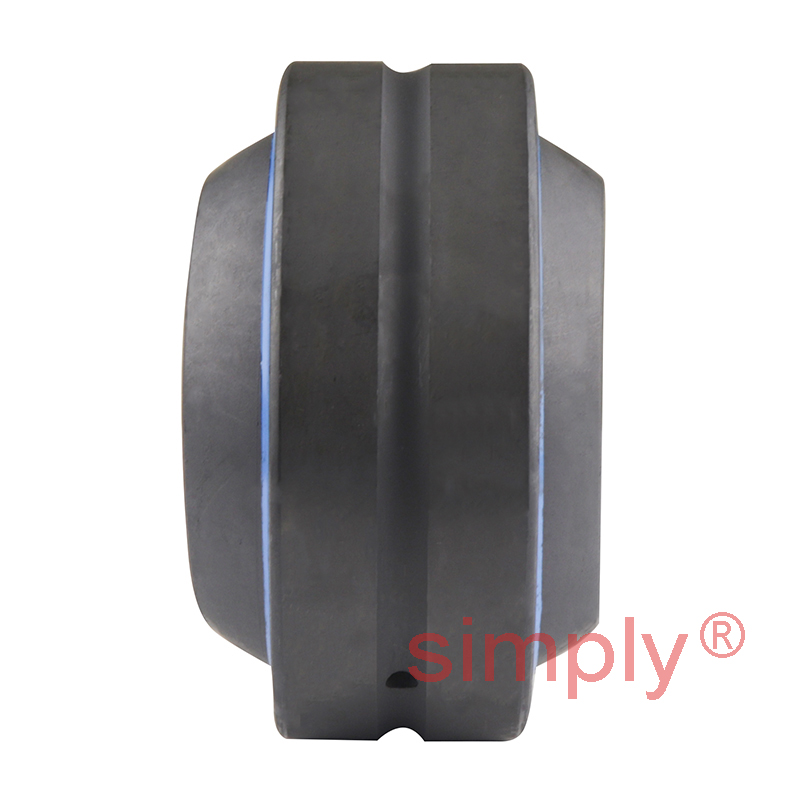

SKF GEH40ES2RS Sealed Spherical Plain Bearing 40x68x25x40mm
£81.40
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £72.45 each |
| 19+ | £68.38 each |
| 29+ | £67.56 each |
| 39+ | £66.75 each |
| 49+ | £65.94 each |
| 74+ | £65.12 each |
| 99+ | £61.05 each |
| 199+ | £60.24 each |
| 249+ | £59.42 each |
| 499+ | £58.61 each |
| 999+ | £56.98 each |
In Stock
| d | = | 40mm |
| D | = | 68mm |
| B | = | 40mm |
| C | = | 25mm |
| Max misalignment angle | = | 17 degrees |
| Dynamic load | = | 127 kN |
| Static load | = | 640 kN |
| dk | = | 60mm |
| b | = | 4.6mm |
| b1 | = | 4.6mm |
| M | = | 3mm |
| r1 min | = | 0.6mm |
| r2 min | = | 1mm |
| da min | = | 44.1mm |
| da max | = | 44.7mm |
| Da max | = | 63.6mm |
| Da min | = | 61mm |
| ra max | = | 0.6mm |
| rb max | = | 1mm |
| Weight | = | 0.61 kg |
