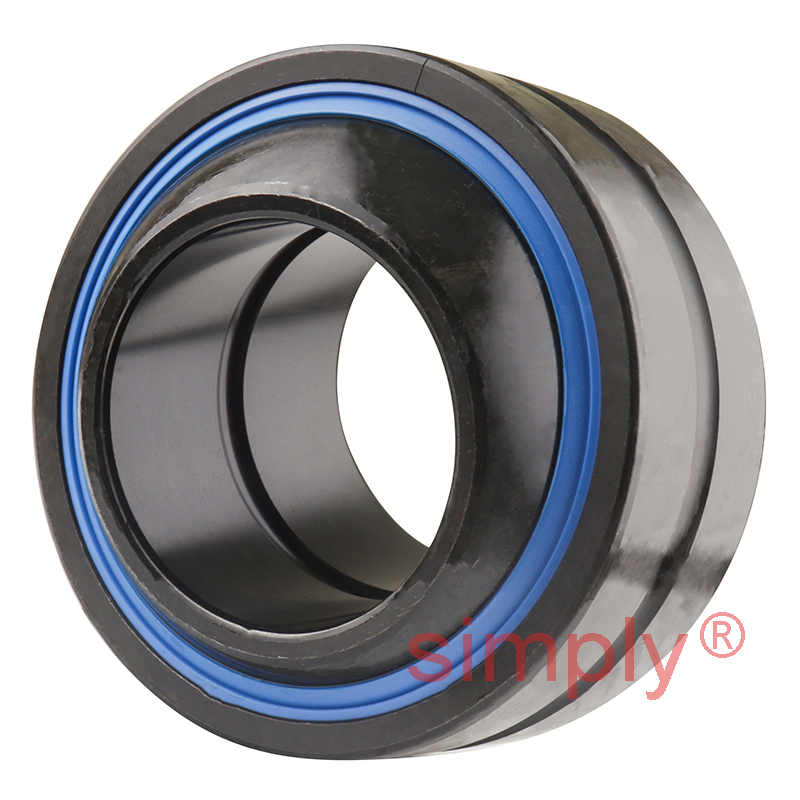

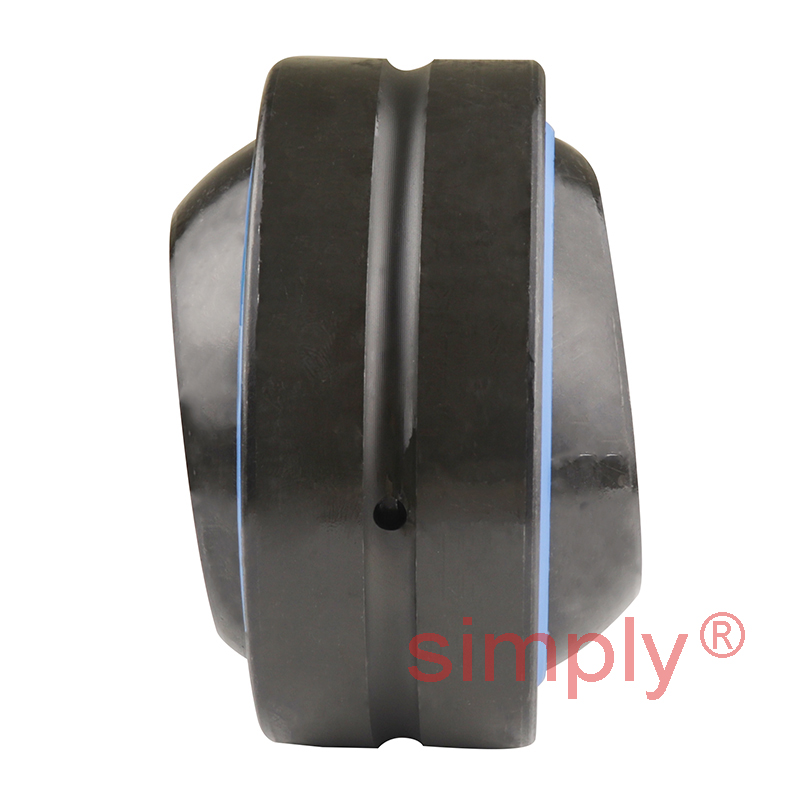

SKF GEH50ES2RS Sealed Spherical Plain Bearing 50x90x36x56mm
£105.11
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £93.54 each |
| 19+ | £88.29 each |
| 29+ | £87.24 each |
| 39+ | £86.19 each |
| 49+ | £85.14 each |
| 74+ | £84.08 each |
| 99+ | £78.83 each |
| 199+ | £77.78 each |
| 249+ | £76.73 each |
| 499+ | £75.68 each |
| 999+ | £73.57 each |
In Stock
| d | = | 50mm |
| D | = | 90mm |
| B | = | 56mm |
| C | = | 36mm |
| Max misalignment angle | = | 17 degrees |
| Dynamic load | = | 245 kN |
| Static load | = | 1220 kN |
| dk | = | 80mm |
| b | = | 6.2mm |
| b1 | = | 6.2mm |
| M | = | 4mm |
| r1 min | = | 0.6mm |
| r2 min | = | 1mm |
| da min | = | 55.8mm |
| da max | = | 57.1mm |
| Da max | = | 54.2mm |
| Da min | = | 79.7mm |
| ra max | = | 0.6mm |
| rb max | = | 1mm |
| Weight | = | 1.6 kg |
