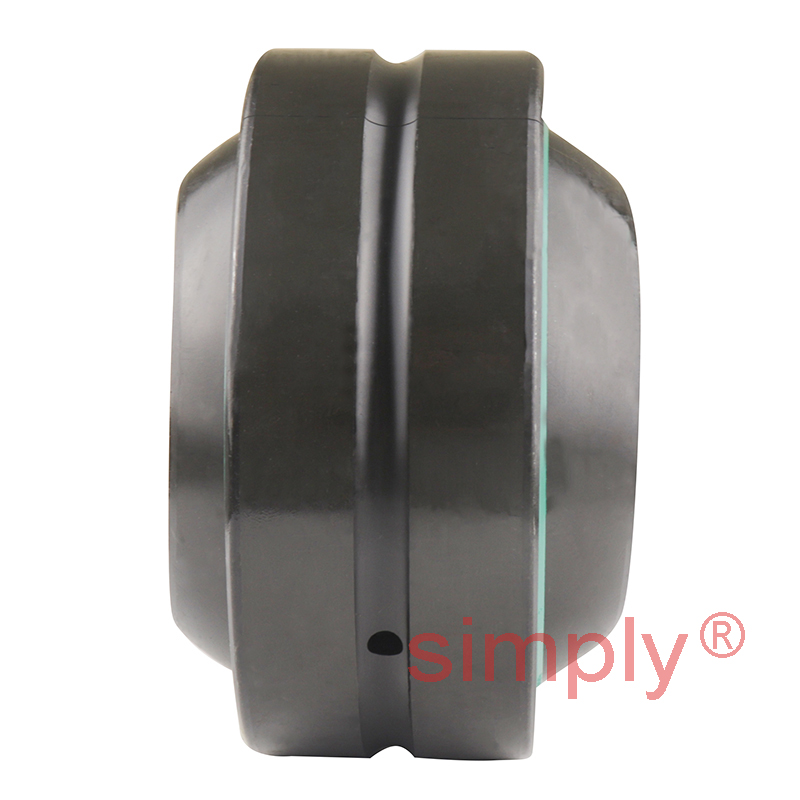

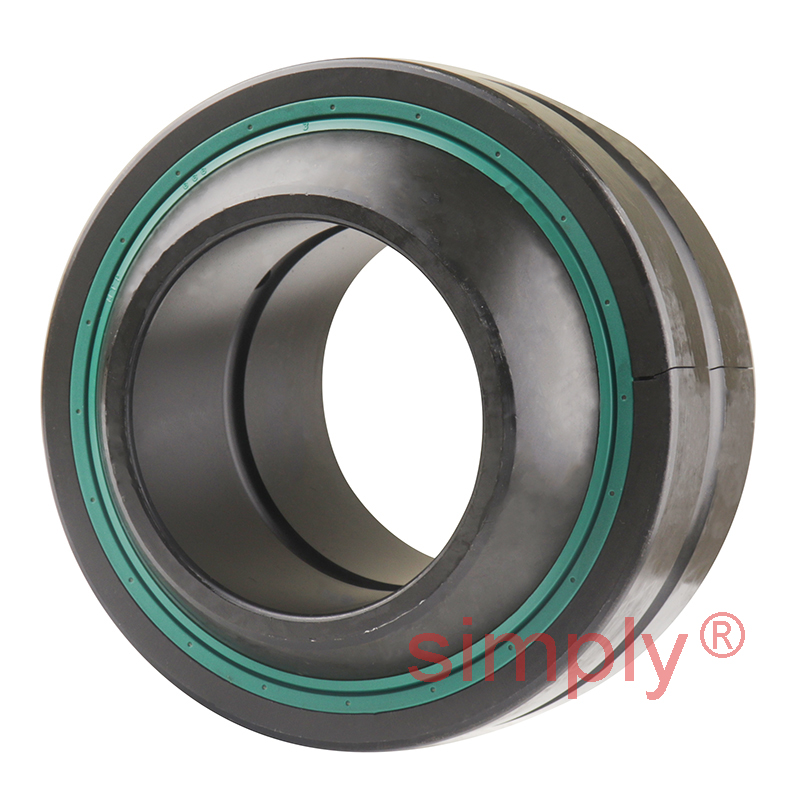

SKF GEH50ES2LS Heavy Duty Triple Seal Spherical Plain Bearing 50x90x36x56mm
£132.44
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £117.87 each |
| 19+ | £111.25 each |
| 29+ | £109.92 each |
| 39+ | £108.60 each |
| 49+ | £107.28 each |
| 74+ | £105.95 each |
| 99+ | £99.33 each |
| 199+ | £98.01 each |
| 249+ | £96.68 each |
| 499+ | £95.36 each |
| 999+ | £92.71 each |
In Stock
| d | = | 50mm |
| D | = | 90mm |
| B | = | 56mm |
| C | = | 36mm |
| Max misalignment angle | = | 17 degrees |
| Dynamic load | = | 245 kN |
| Static load | = | 1220 kN |
| dk | = | 80mm |
| b | = | 6.2mm |
| b1 | = | 6.2mm |
| M | = | 4mm |
| r1 min | = | 0.6mm |
| r2 min | = | 1mm |
| da min | = | 55.8mm |
| da max | = | 57.1mm |
| Da max | = | 54.2mm |
| Da min | = | 79.7mm |
| ra max | = | 0.6mm |
| rb max | = | 1mm |
| Weight | = | 1.6 kg |
