Average Rating (1 Reviews)

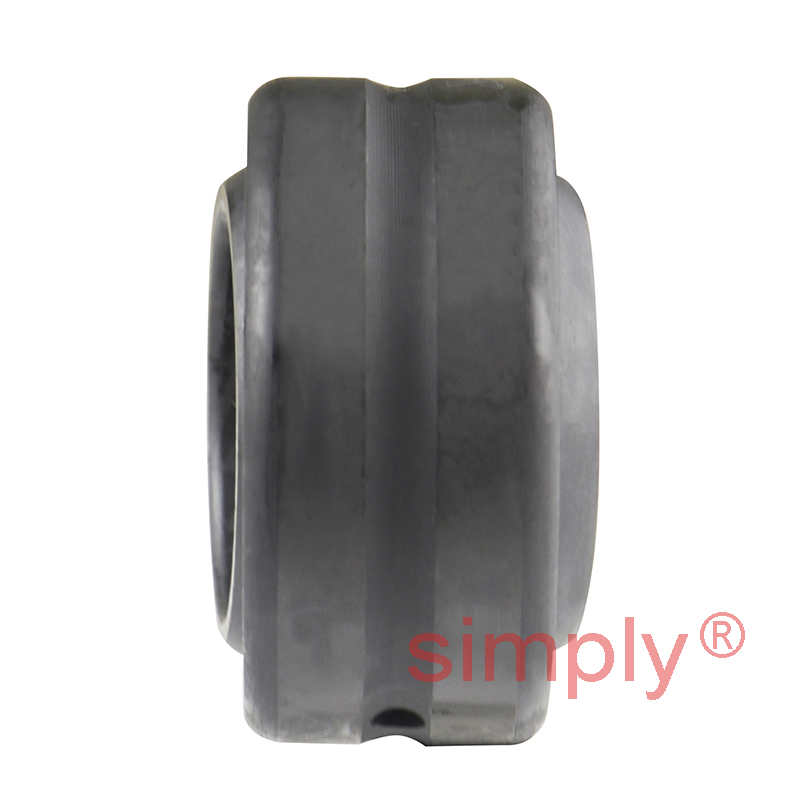

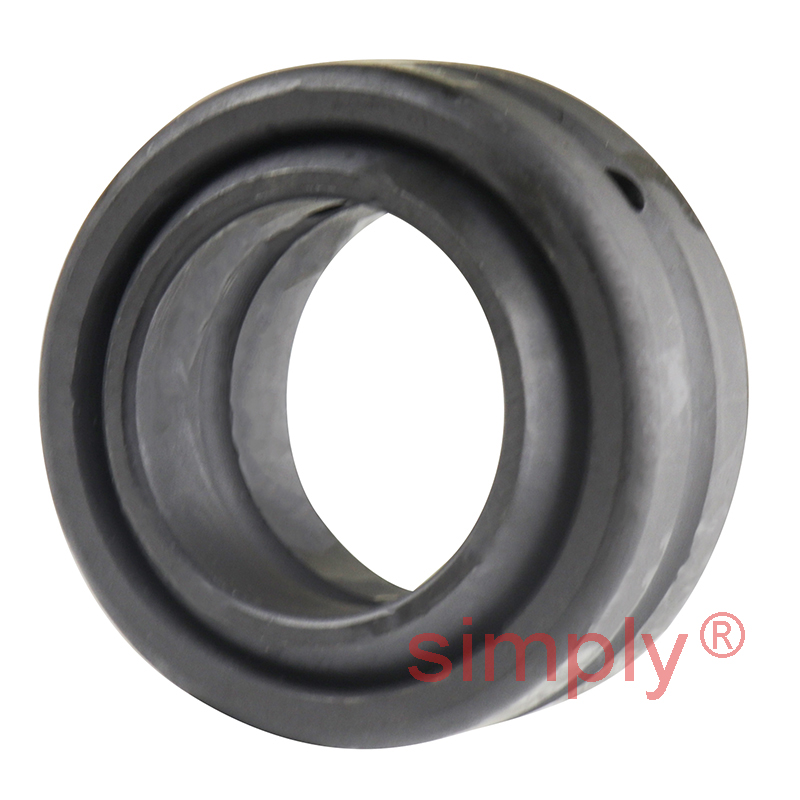

SKF GEZ012ES Spherical Plain Bearing 19.05x31.75x16.67x14.29mm
Equivalent to: GE19ZO SBB12 GEZ19ES B12-L 7SF12
£23.97
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £21.33 each |
| 19+ | £20.14 each |
| 29+ | £19.90 each |
| 39+ | £19.66 each |
| 49+ | £19.42 each |
| 74+ | £19.18 each |
| 99+ | £17.98 each |
| 199+ | £17.74 each |
| 249+ | £17.50 each |
| 499+ | £17.26 each |
| 999+ | £16.78 each |
In Stock
| d | = | 19.05mm = 3/4 inch |
| D | = | 31.75mm = 1-1/4 inch |
| B | = | 16.67mm = 21/32 inch |
| C | = | 14.29mm = 0.563 inch |
| Max misalignment angle | = | 6 degrees |
| Dynamic load | = | 31.5 kN |
| Static load | = | 93 kN |
| dk | = | 27.432mm = 1.080 inch |
| b | = | 3.2mm = 0.126 inch |
| b1 | = | 3mm = 0.118 inch |
| M | = | 2.5mm = 0.098 inch |
| r1 min | = | 0.3mm = 0.012 inch |
| r2 min | = | 1mm = 0.039 inch |
| da min | = | 20.9mm = 0.823 inch |
| da max | = | 21.8mm = 0.858 inch |
| Da max | = | 28.3mm = 1.114 inch |
| Da min | = | 26.1mm = 1.028 inch |
| ra max | = | 0.3mm = 0.012 inch |
| rb max | = | 1mm = 0.039 inch |
| Weight | = | 0.055 kg |
