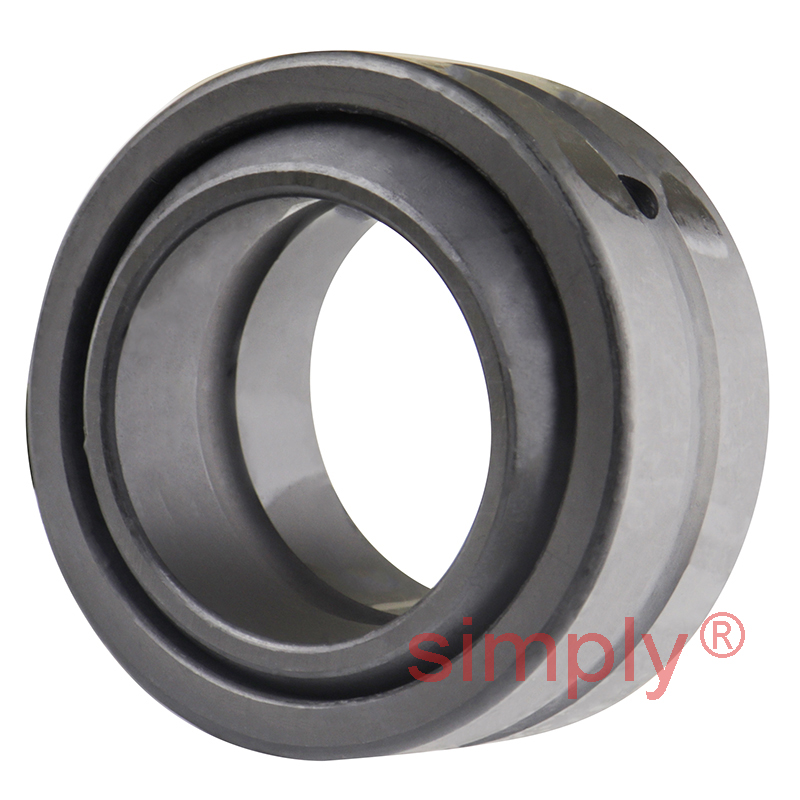

SKF GEZ104ES Spherical Plain Bearing 31.75x50.8x26.99x23.81mm
Equivalent to: GE31ZO SBB20 GEZ31ES B20-L 12SF20
£53.52
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £47.63 each |
| 19+ | £44.95 each |
| 29+ | £44.42 each |
| 39+ | £43.88 each |
| 49+ | £43.35 each |
| 74+ | £42.81 each |
| 99+ | £40.14 each |
| 199+ | £39.60 each |
| 249+ | £39.07 each |
| 499+ | £38.53 each |
| 999+ | £37.46 each |
In Stock
| d | = | 31.75mm = 1-1/4 inch |
| D | = | 50.8mm = 2 inch |
| B | = | 26.99mm = 1-1/16 inch |
| C | = | 23.81mm = 0.938 inch |
| Max misalignment angle | = | 6 degrees |
| Dynamic load | = | 86.5 kN |
| Static load | = | 260 kN |
| dk | = | 45.593mm = 1.795 inch |
| b | = | 4.8mm = 0.189 inch |
| b1 | = | 5mm = 0.197 inch |
| M | = | 4mm = 0.157 inch |
| r1 min | = | 0.6mm = 0.024 inch |
| r2 min | = | 1mm = 0.039 inch |
| da min | = | 34.8mm = 1.370 inch |
| da max | = | 36.2mm = 1.425 inch |
| Da max | = | 47mm = 1.850 inch |
| Da min | = | 43.3mm = 1.705 inch |
| ra max | = | 0.6mm = 0.024 inch |
| rb max | = | 1mm = 0.039 inch |
| Weight | = | 0.23 kg |
