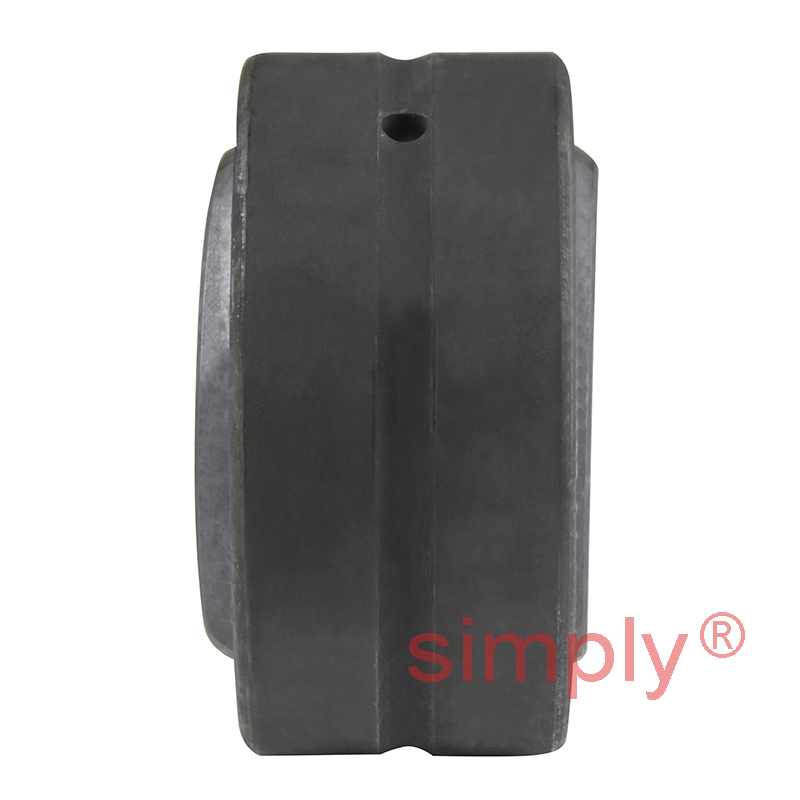

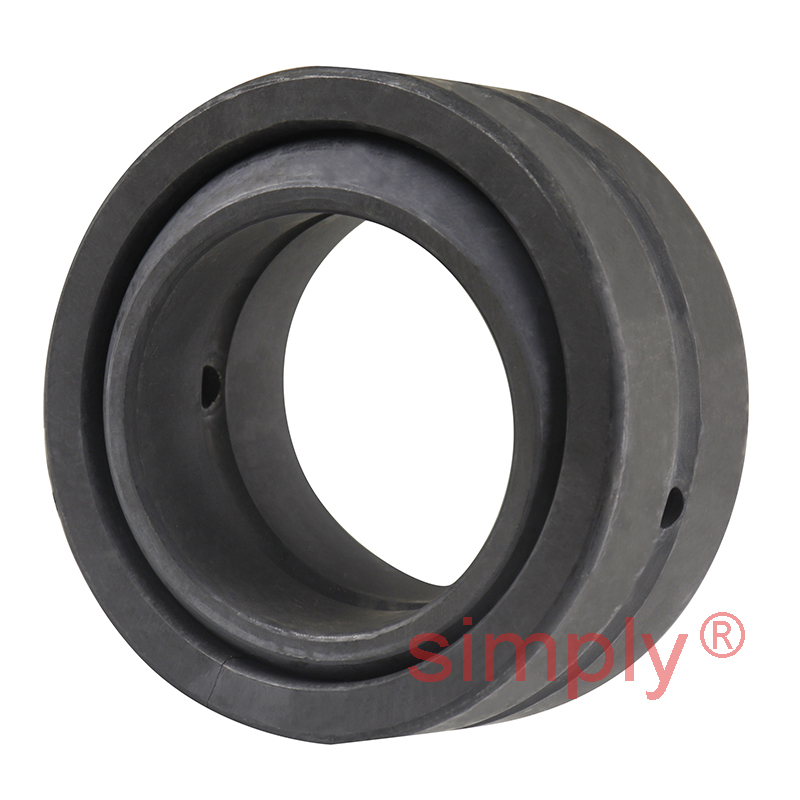

SKF GEZ108ES Spherical Plain Bearing 38.1x61.91x33.33x28.58mm
Equivalent to: GE38ZO SBB24 GEZ38ES B24-L 15SF24
£46.84
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £41.69 each |
| 19+ | £39.34 each |
| 29+ | £38.88 each |
| 39+ | £38.41 each |
| 49+ | £37.94 each |
| 74+ | £37.47 each |
| 99+ | £35.13 each |
| 199+ | £34.66 each |
| 249+ | £34.19 each |
| 499+ | £33.72 each |
| 999+ | £32.79 each |
In Stock
| d | = | 38.1mm = 1-1/2 inch |
| D | = | 61.91mm = 2-7/16 inch |
| B | = | 33.33mm = 1-5/16 inch |
| C | = | 28.58mm = 1.125 inch |
| Max misalignment angle | = | 6 degrees |
| Dynamic load | = | 125 kN |
| Static load | = | 375 kN |
| dk | = | 54.737mm = 2.155 inch |
| b | = | 4.8mm = 0.189 inch |
| b1 | = | 5mm = 0.197 inch |
| M | = | 4mm = 0.157 inch |
| r1 min | = | 0.6mm = 0.024 inch |
| r2 min | = | 1mm = 0.039 inch |
| da min | = | 41.4mm = 1.630 inch |
| da max | = | 43.4mm = 1.709 inch |
| Da max | = | 58mm = 2.283 inch |
| Da min | = | 52mm = 2.047 inch |
| ra max | = | 0.6mm = 0.024 inch |
| rb max | = | 1mm = 0.039 inch |
| Weight | = | 0.42 kg |
