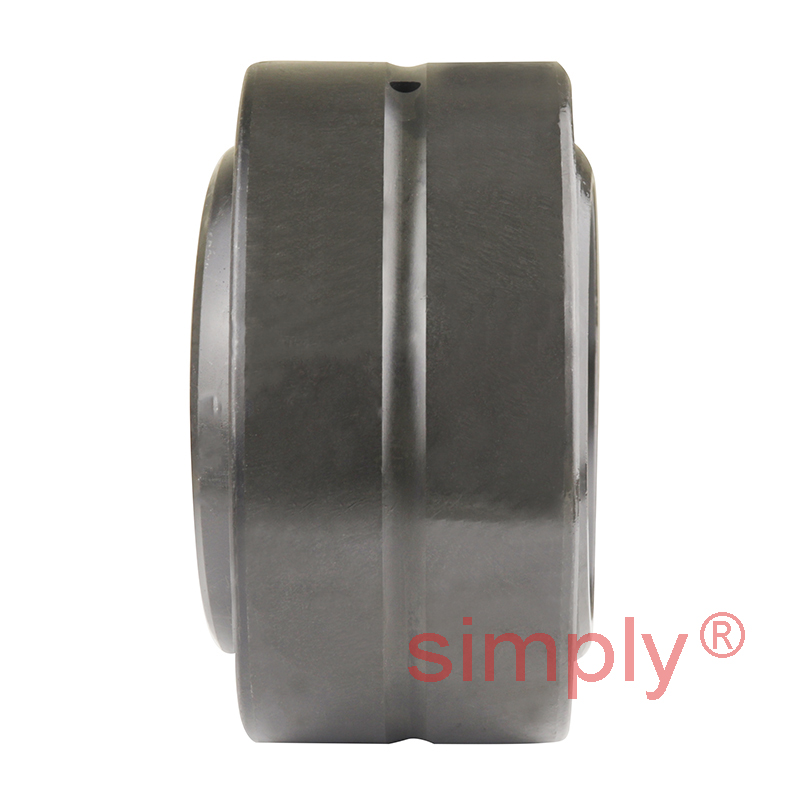

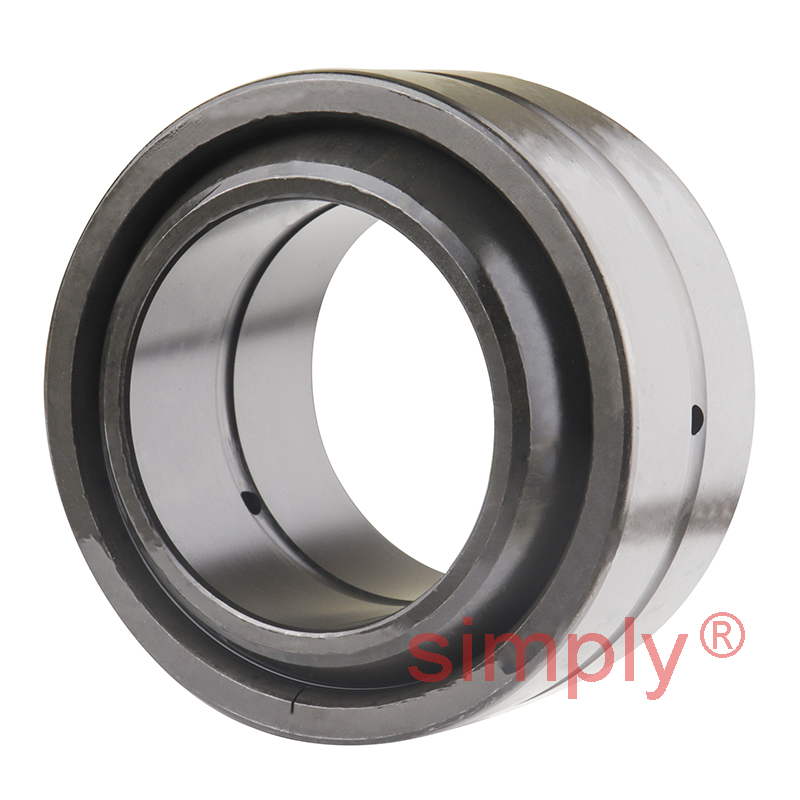

SKF GEZ204ES Spherical Plain Bearing 57.15x90.49x50.01x42.86mm
Equivalent to: GE57ZO SBB36 GEZ57ES B36-L 22SF36
£96.77
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £86.13 each |
| 19+ | £81.29 each |
| 29+ | £80.32 each |
| 39+ | £79.35 each |
| 49+ | £78.38 each |
| 74+ | £77.42 each |
| 99+ | £72.58 each |
| 199+ | £71.61 each |
| 249+ | £70.64 each |
| 499+ | £69.67 each |
| 999+ | £67.74 each |
In Stock
| d | = | 57.15mm = 2-1/4 inch |
| D | = | 90.49mm = 3-9/16 inch |
| B | = | 50.01mm = 1-31/32 inch |
| C | = | 42.86mm = 1.688 inch |
| Max misalignment angle | = | 6 degrees |
| Dynamic load | = | 280 kN |
| Static load | = | 850 kN |
| dk | = | 82.169mm = 3.235 inch |
| b | = | 5.7mm = 0.224 inch |
| b1 | = | 5mm = 0.197 inch |
| M | = | 4mm = 0.157 inch |
| r1 min | = | 0.6mm = 0.024 inch |
| r2 min | = | 1mm = 0.039 inch |
| da min | = | 61.7mm = 2.429 inch |
| da max | = | 65.2mm = 2.567 inch |
| Da max | = | 85.3mm = 3.358 inch |
| Da min | = | 78.1mm = 3.075 inch |
| ra max | = | 0.6mm = 0.024 inch |
| rb max | = | 1mm = 0.039 inch |
| Weight | = | 1.3 kg |
