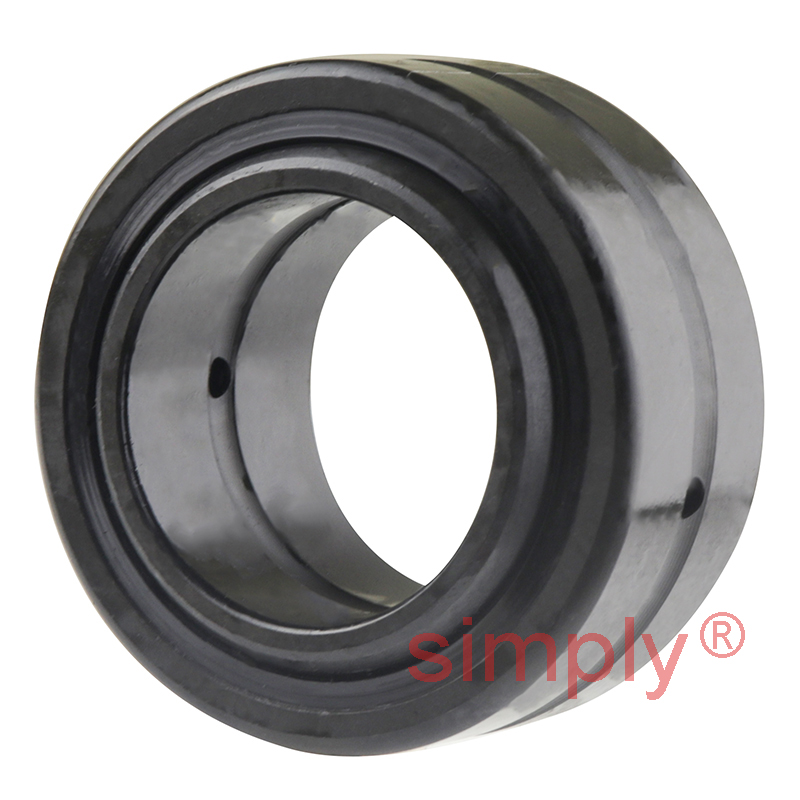

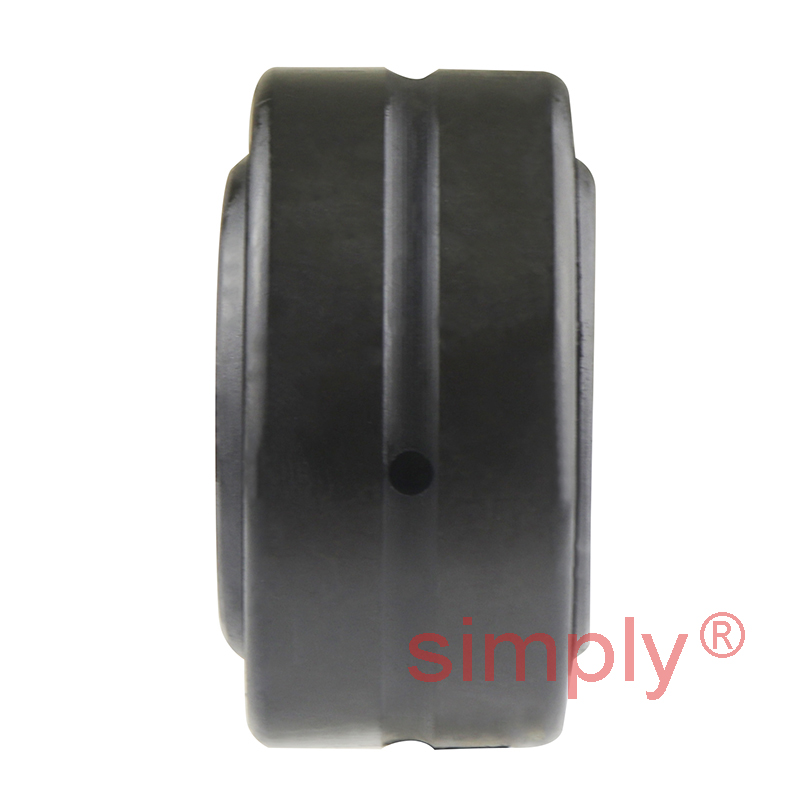

SKF GEZ100ES2RS Double Seal Spherical Plain Bearing 25.4x41.28x22.23x19.05mm
Equivalent to: GE25ZO2RS SBB162RS GEZ25ES2RS B16-LSS 10SF16-TT
£34.02
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £30.28 each |
| 19+ | £28.58 each |
| 29+ | £28.24 each |
| 39+ | £27.90 each |
| 49+ | £27.56 each |
| 74+ | £27.22 each |
| 99+ | £25.52 each |
| 199+ | £25.18 each |
| 249+ | £24.84 each |
| 499+ | £24.50 each |
| 999+ | £23.81 each |
In Stock
| d | = | 25.4mm = 1 inch |
| D | = | 41.28mm = 1-5/8 inch |
| B | = | 22.23mm = 7/8 inch |
| C | = | 19.05mm = 0.750 inch |
| Max misalignment angle | = | 6 degrees |
| Dynamic load | = | 56 kN |
| Static load | = | 166 kN |
| dk | = | 36.5mm = 1.437 inch |
| b | = | 3.2mm = 0.126 inch |
| b1 | = | 3mm = 0.118 inch |
| M | = | 2.5mm = 0.098 inch |
| r1 min | = | 0.3mm = 0.012 inch |
| r2 min | = | 1mm = 0.039 inch |
| da min | = | 27.5mm = 1.083 inch |
| da max | = | 29mm = 1.142 inch |
| Da max | = | 37.7mm = 1.484 inch |
| Da min | = | 34.7mm = 1.366 inch |
| ra max | = | 0.3mm = 0.012 inch |
| rb max | = | 1mm = 0.039 inch |
| Weight | = | 0.12 kg |
