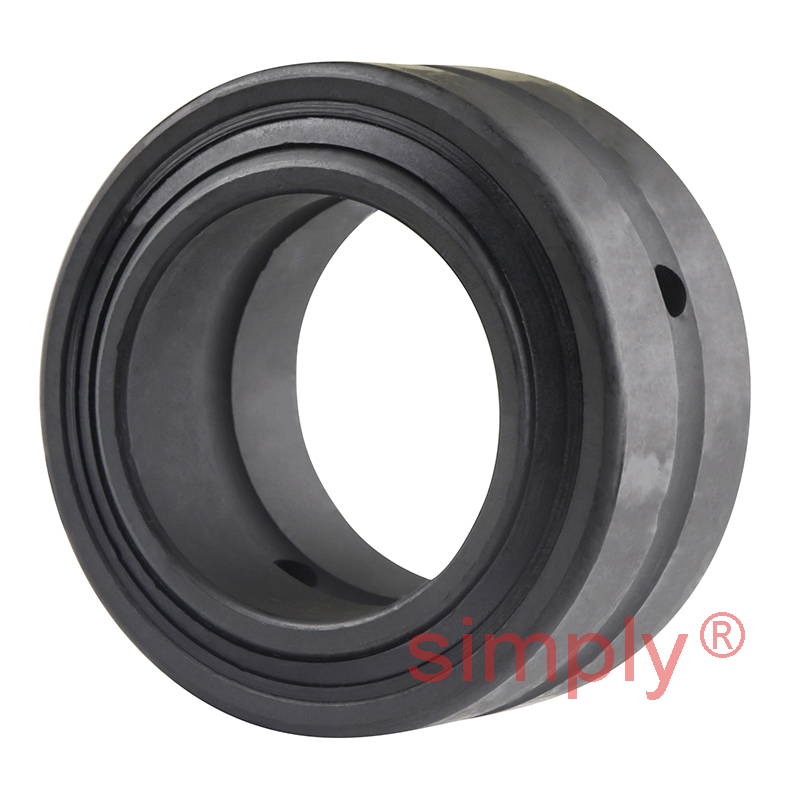

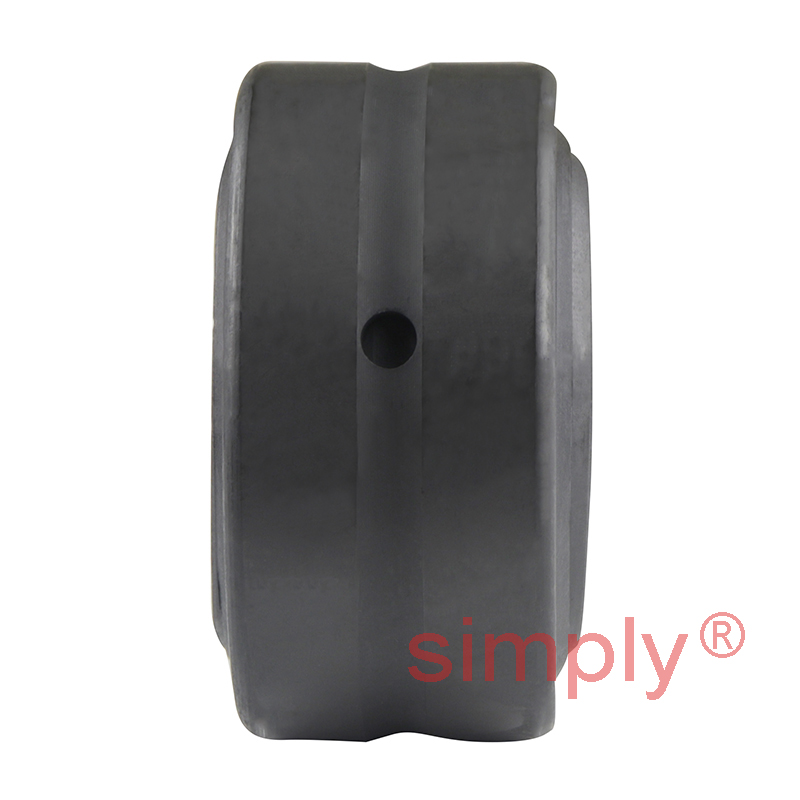

SKF GEZ104ES2RS Double Seal Spherical Plain Bearing 31.75x50.8x27.78x23.81mm
Equivalent to: GE31ZO2RS SBB202RS GEZ31ES2RS B20-LSS 12SF20-TT
£70.56
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £62.80 each |
| 19+ | £59.27 each |
| 29+ | £58.57 each |
| 39+ | £57.86 each |
| 49+ | £57.16 each |
| 74+ | £56.45 each |
| 99+ | £52.92 each |
| 199+ | £52.22 each |
| 249+ | £51.51 each |
| 499+ | £50.80 each |
| 999+ | £49.39 each |
In Stock
| d | = | 31.75mm = 1-1/4 inch |
| D | = | 50.8mm = 2 inch |
| B | = | 27.78mm = 1-3/32 inch |
| C | = | 23.81mm = 0.938 inch |
| Max misalignment angle | = | 6 degrees |
| Dynamic load | = | 86.5 kN |
| Static load | = | 260 kN |
| dk | = | 45.593mm = 1.795 inch |
| b | = | 4.8mm = 0.189 inch |
| b1 | = | 5mm = 0.197 inch |
| M | = | 4mm = 0.157 inch |
| r1 min | = | 0.6mm = 0.024 inch |
| r2 min | = | 1mm = 0.039 inch |
| da min | = | 34.8mm = 1.370 inch |
| da max | = | 36.2mm = 1.425 inch |
| Da max | = | 47mm = 1.850 inch |
| Da min | = | 43.3mm = 1.705 inch |
| ra max | = | 0.6mm = 0.024 inch |
| rb max | = | 1mm = 0.039 inch |
| Weight | = | 0.23 kg |
