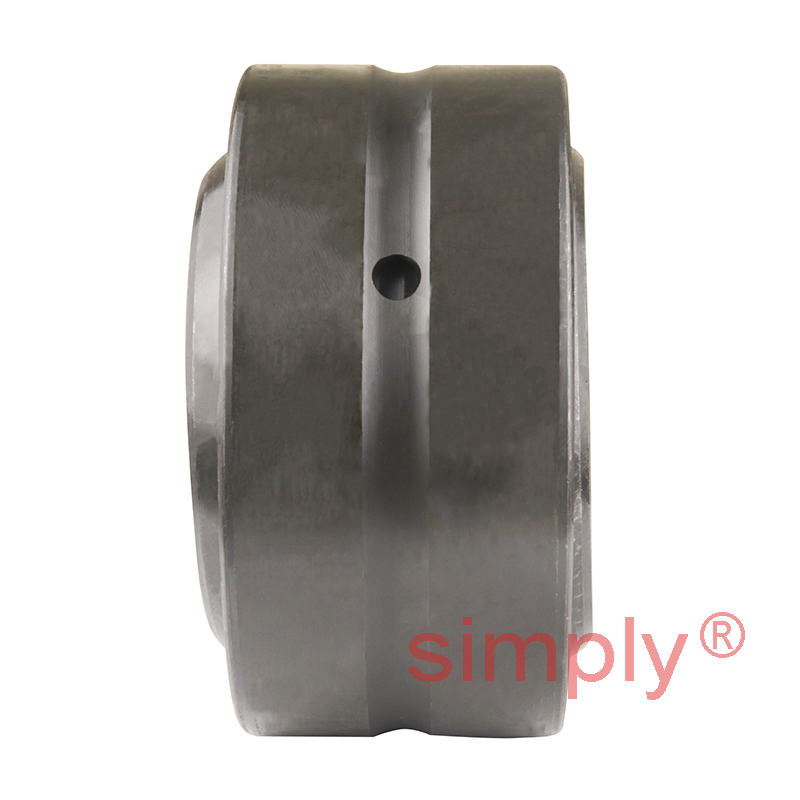

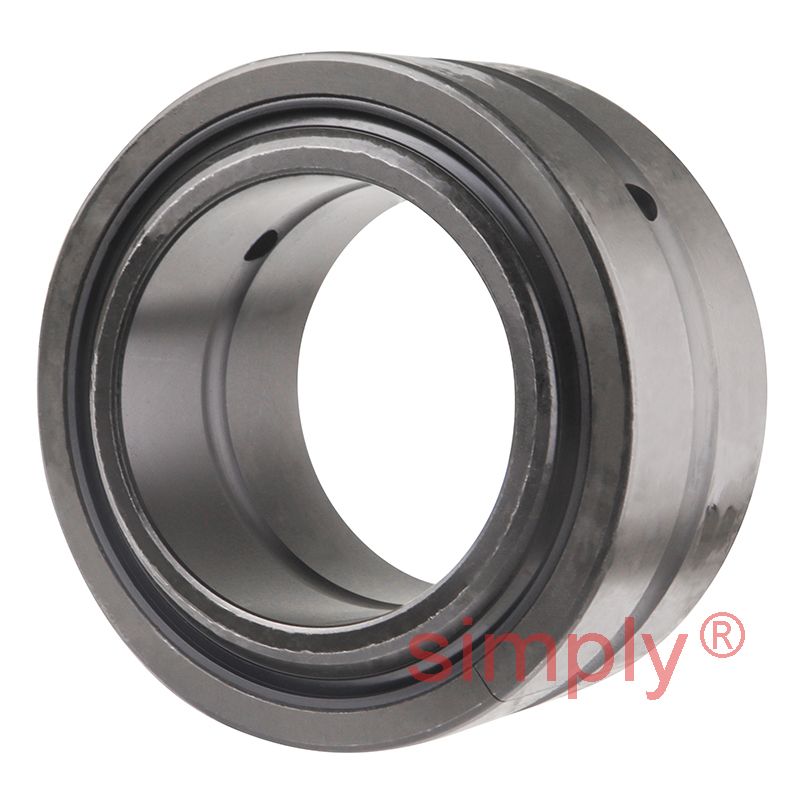

SKF GEZ208ES2RS Double Seal Spherical Plain Bearing 63.5x100.01x55.56x47.63mm
Equivalent to: GE63ZO2RS SBB402RS GEZ63ES2RS B40-LSS 25SF40-TT
£143.16
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £127.41 each |
| 19+ | £120.25 each |
| 29+ | £118.82 each |
| 39+ | £117.39 each |
| 49+ | £115.96 each |
| 74+ | £114.52 each |
| 99+ | £107.37 each |
| 199+ | £105.93 each |
| 249+ | £104.50 each |
| 499+ | £103.07 each |
| 999+ | £100.21 each |
In Stock
| d | = | 63.5mm = 2-1/2 inch |
| D | = | 100.01mm = 3-15/16 inch |
| B | = | 55.56mm = 2-3/16 inch |
| C | = | 47.63mm = 1.875 inch |
| Max misalignment angle | = | 6 degrees |
| Dynamic load | = | 345 kN |
| Static load | = | 1040 kN |
| dk | = | 91.186mm = 3.590 inch |
| b | = | 9mm = 0.354 inch |
| b1 | = | 8mm = 0.315 inch |
| M | = | 6.5mm = 0.256 inch |
| r1 min | = | 0.6mm = 0.024 inch |
| r2 min | = | 1mm = 0.039 inch |
| da min | = | 68.3mm = 2.689 inch |
| da max | = | 72.3mm = 2.846 inch |
| Da max | = | 94.7mm = 3.728 inch |
| Da min | = | 86.6mm = 3.409 inch |
| ra max | = | 0.6mm = 0.024 inch |
| rb max | = | 1mm = 0.039 inch |
| Weight | = | 1.85 kg |
