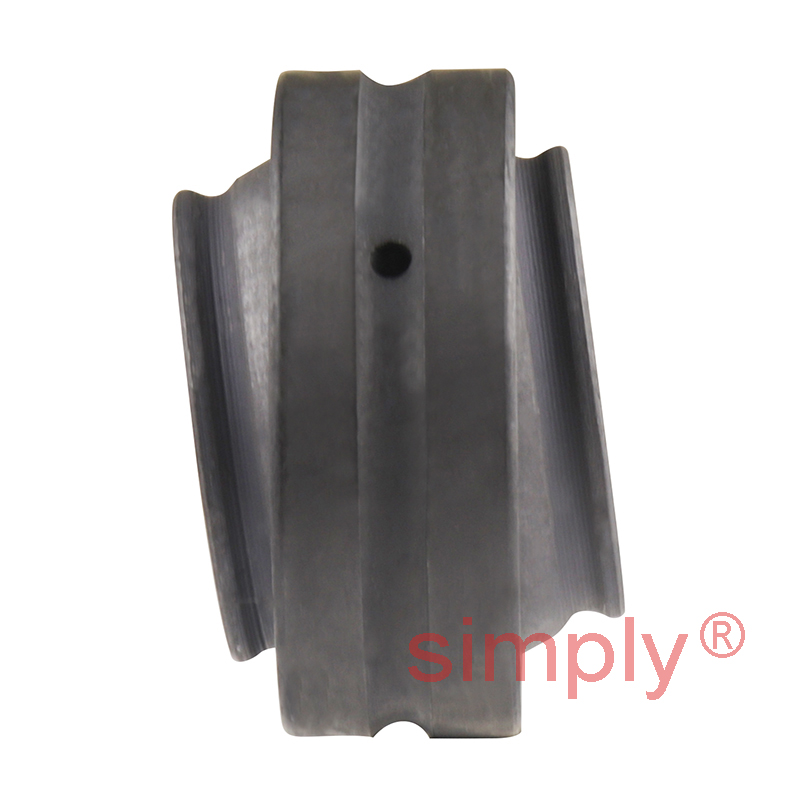

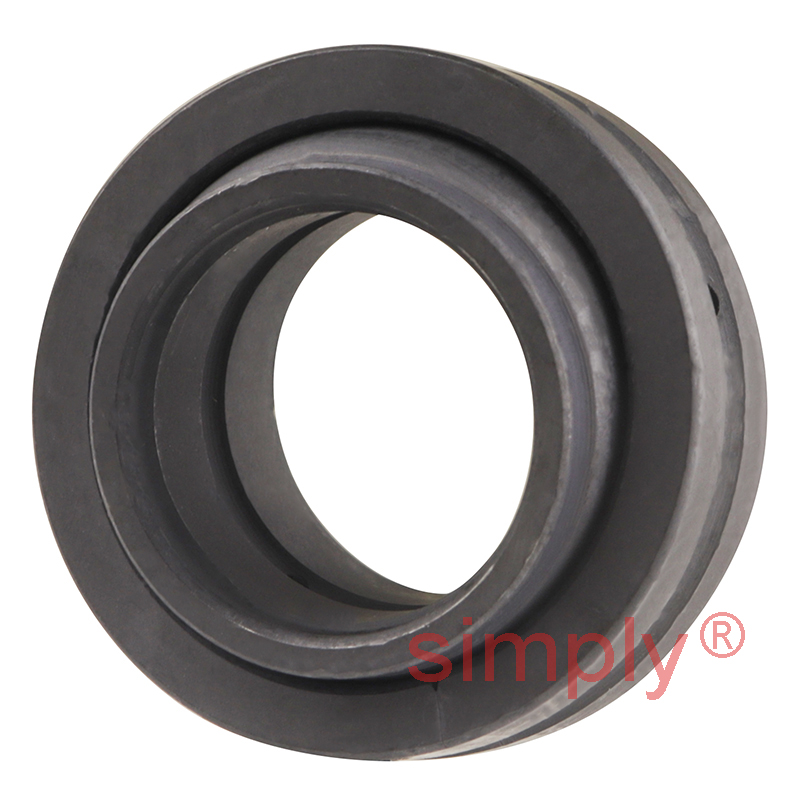

SKF GEG20ES Extended Inner Spherical Plain Bearing 20x35x20x12mm
Equivalent to: GE20LO GEEW20ES
£24.51
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £21.81 each |
| 19+ | £20.59 each |
| 29+ | £20.34 each |
| 39+ | £20.10 each |
| 49+ | £19.85 each |
| 74+ | £19.61 each |
| 99+ | £18.38 each |
| 199+ | £18.14 each |
| 249+ | £17.89 each |
| 499+ | £17.65 each |
| 999+ | £17.16 each |
In Stock
| d | = | 20mm |
| D | = | 35mm |
| B | = | 20mm |
| C | = | 12mm |
| Max misalignment angle | = | 4 degrees |
| Dynamic load | = | 30 kN |
| Static load | = | 146 kN |
| dk | = | 29mm |
| d1 | = | 25mm |
| b | = | 3.1mm |
| b1 | = | 3.1mm |
| M | = | 2mm |
| r1 min | = | 0.3mm |
| r2 min | = | 0.3mm |
| da min | = | 23.1mm |
| da max | = | 25mm |
| Da max | = | 33.2mm |
| Da min | = | 27.6mm |
| ra max | = | 0.3mm |
| rb max | = | 0.3mm |
| Weight | = | 0.07 kg |
