Average Rating (1 Reviews)

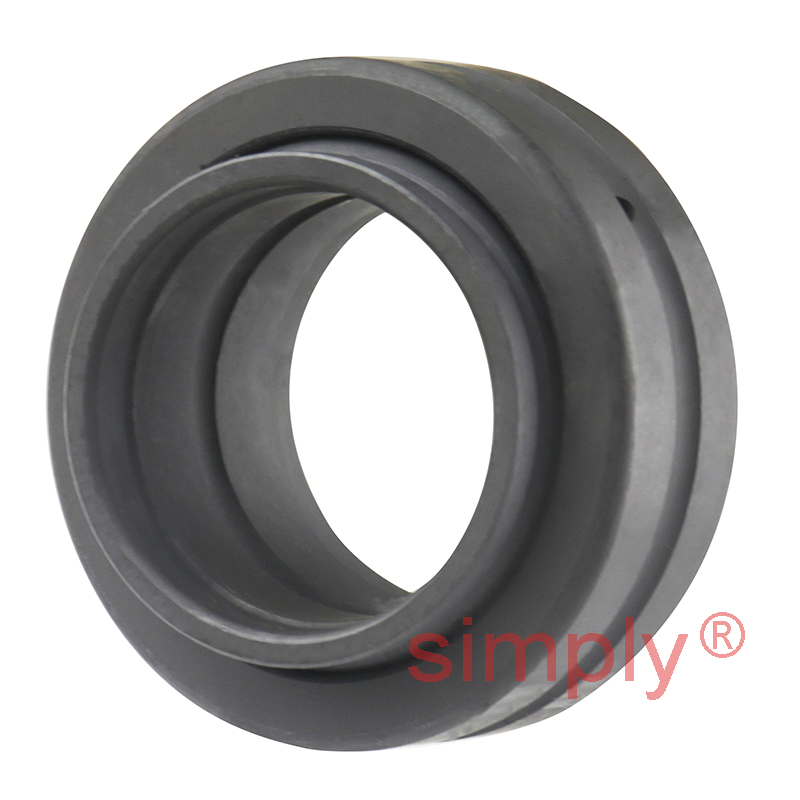

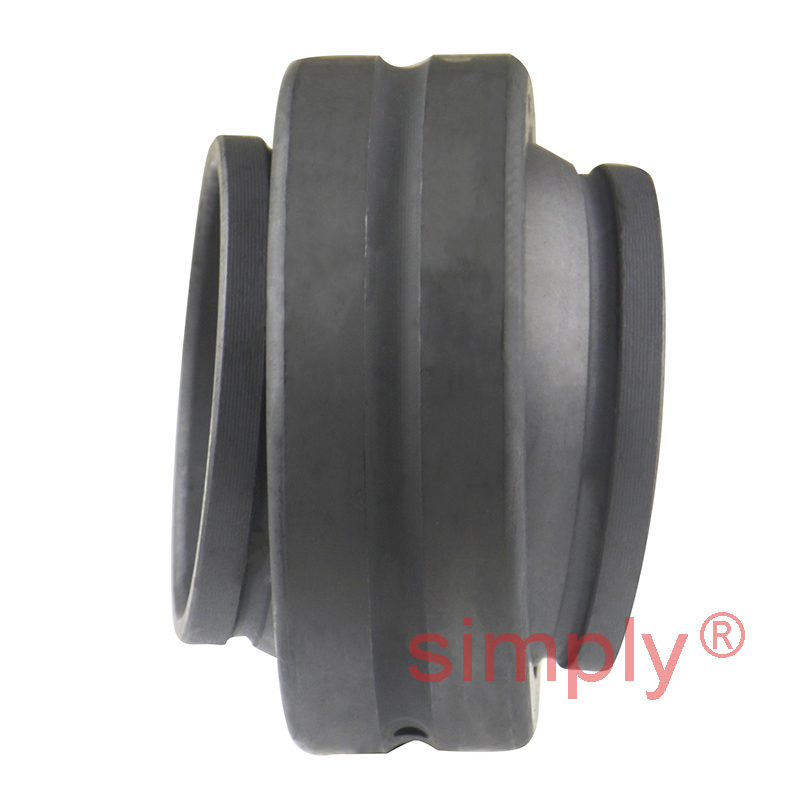

SKF GEG32ES Extended Inner Spherical Plain Bearing 32x52x32x18mm
Equivalent to: GE32LO GEEW32ES
£40.52
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £36.06 each |
| 19+ | £34.03 each |
| 29+ | £33.63 each |
| 39+ | £33.22 each |
| 49+ | £32.82 each |
| 74+ | £32.41 each |
| 99+ | £30.39 each |
| 199+ | £29.98 each |
| 249+ | £29.58 each |
| 499+ | £29.17 each |
| 999+ | £28.36 each |
In Stock
| d | = | 32mm |
| D | = | 52mm |
| B | = | 32mm |
| C | = | 18mm |
| Max misalignment angle | = | 4 degrees |
| Dynamic load | = | 65.5 kN |
| Static load | = | 325 kN |
| dk | = | 43mm |
| d1 | = | 38mm |
| b | = | 3.9mm |
| b1 | = | 3.9mm |
| M | = | 2.5mm |
| r1 min | = | 0.6mm |
| r2 min | = | 1mm |
| da min | = | 36.3mm |
| da max | = | 38mm |
| Da max | = | 48.1mm |
| Da min | = | 40.9mm |
| ra max | = | 0.6mm |
| rb max | = | 1mm |
| Weight | = | 0.17 kg |
