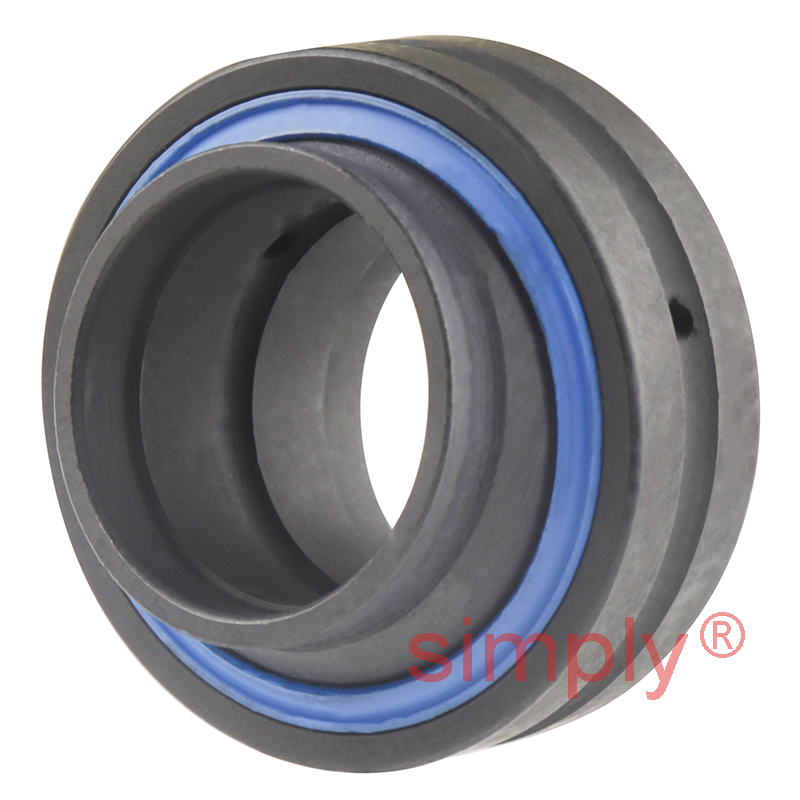

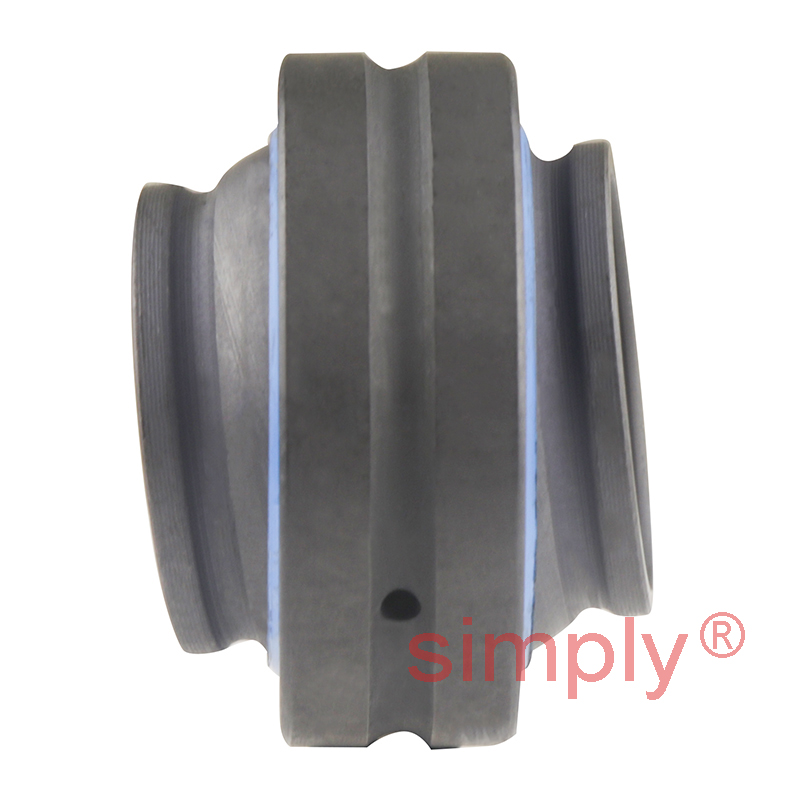

SKF GEM20ES2RS Extended Inner Spherical Plain Bearing 20x35x24x12mm
Equivalent to: GE20HO2RS GEEM202RS
£37.84
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £33.68 each |
| 19+ | £31.78 each |
| 29+ | £31.41 each |
| 39+ | £31.03 each |
| 49+ | £30.65 each |
| 74+ | £30.27 each |
| 99+ | £28.38 each |
| 199+ | £28.00 each |
| 249+ | £27.62 each |
| 499+ | £27.24 each |
| 999+ | £26.49 each |
In Stock
| d | = | 20mm |
| D | = | 35mm |
| B | = | 24mm |
| C | = | 12mm |
| Max misalignment angle | = | 6 degrees |
| Dynamic load | = | 30 kN |
| Static load | = | 146 kN |
| dk | = | 29mm |
| d1 | = | 24mm |
| b | = | 3.1mm |
| b1 | = | 3.1mm |
| M | = | 2mm |
| r1 min | = | 0.3mm |
| r2 min | = | 0.3mm |
| da min | = | 23mm |
| da max | = | 24mm |
| Da max | = | 33.2mm |
| Da min | = | 30.9mm |
| ra max | = | 0.3mm |
| rb max | = | 0.3mm |
| Weight | = | 0.073 kg |
