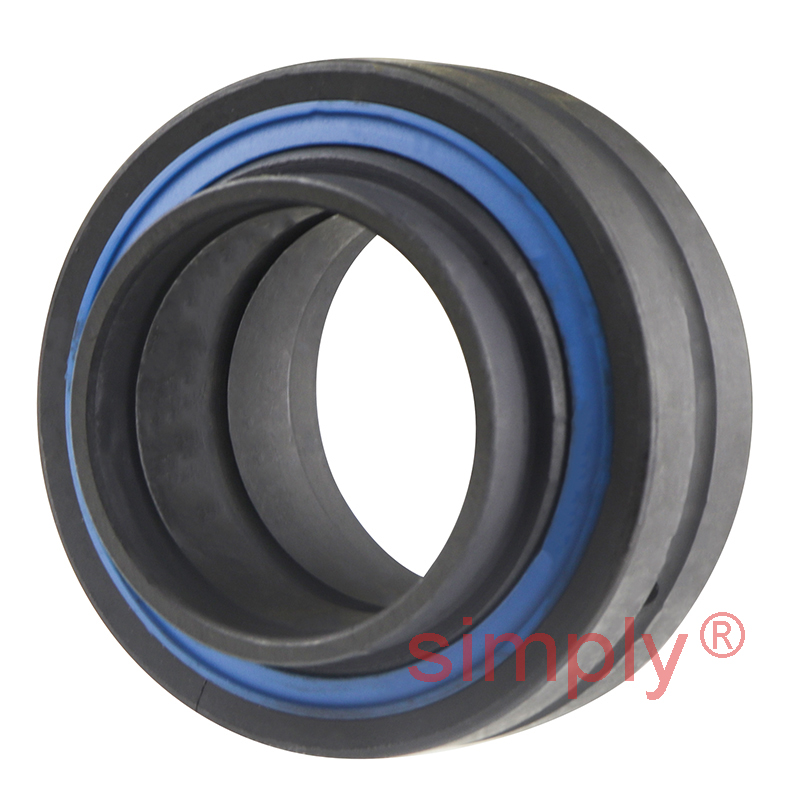

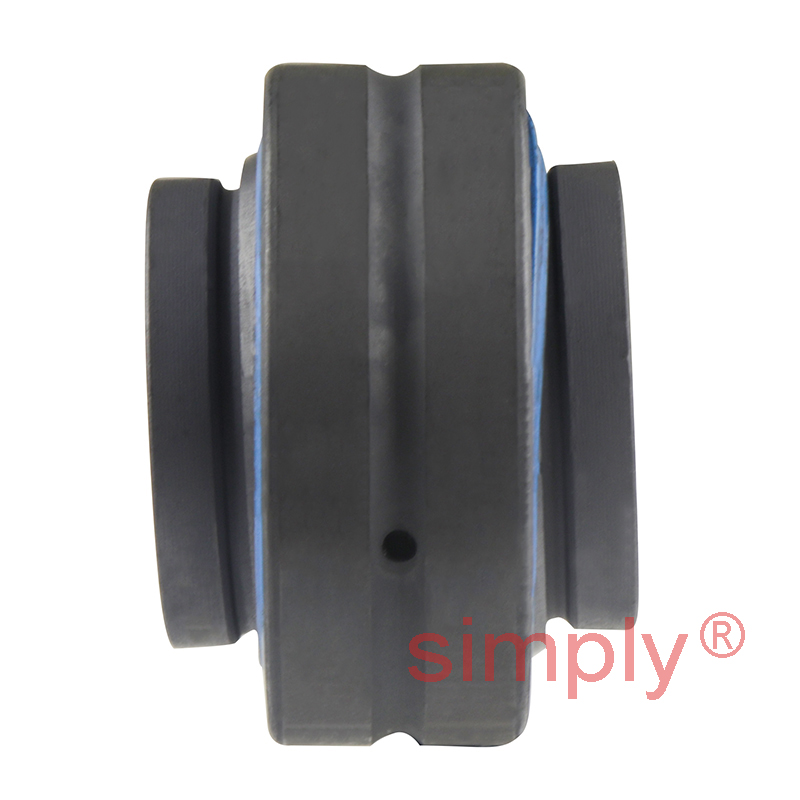

SKF GEM25ES2RS Extended Inner Spherical Plain Bearing 25x42x29x16mm
Equivalent to: GE25HO2RS GEEM252RS
£37.74
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £33.59 each |
| 19+ | £31.70 each |
| 29+ | £31.32 each |
| 39+ | £30.94 each |
| 49+ | £30.57 each |
| 74+ | £30.19 each |
| 99+ | £28.30 each |
| 199+ | £27.93 each |
| 249+ | £27.55 each |
| 499+ | £27.17 each |
| 999+ | £26.42 each |
In Stock
| d | = | 25mm |
| D | = | 42mm |
| B | = | 29mm |
| C | = | 16mm |
| Max misalignment angle | = | 4 degrees |
| Dynamic load | = | 48 kN |
| Static load | = | 240 kN |
| dk | = | 35.5mm |
| d1 | = | 29mm |
| b | = | 3.1mm |
| b1 | = | 3.1mm |
| M | = | 2mm |
| r1 min | = | 0.3mm |
| r2 min | = | 0.6mm |
| da min | = | 28.3mm |
| da max | = | 29mm |
| Da max | = | 39.2mm |
| Da min | = | 36.9mm |
| ra max | = | 0.3mm |
| rb max | = | 0.6mm |
| Weight | = | 0.13 kg |
