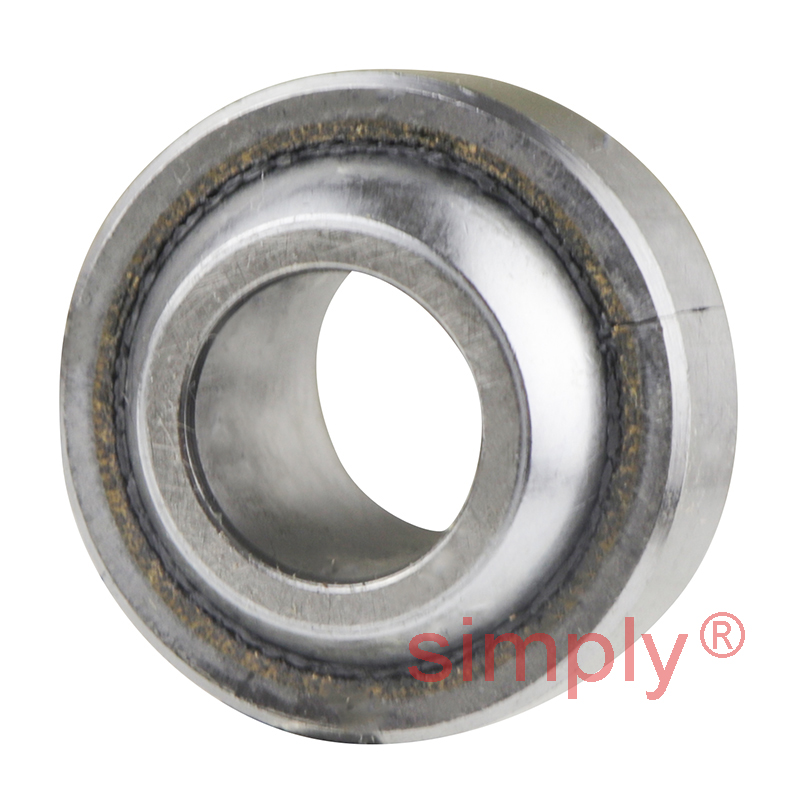

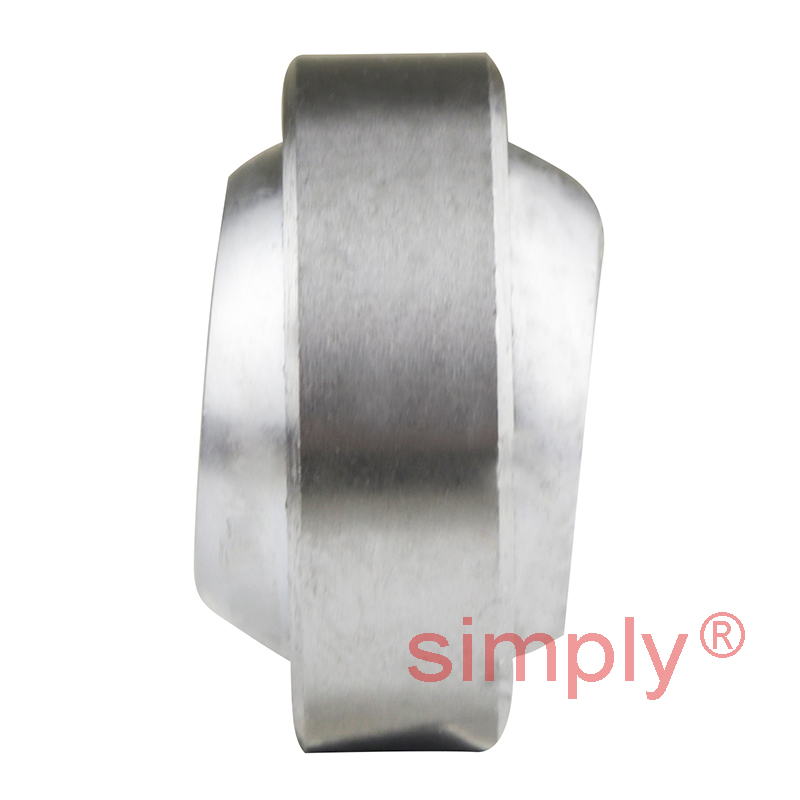

SKF GEH10C Maintenance Free Spherical Plain Bearing Steel / Bronze 10x22x12x7mm
Equivalent to: GE10FW GEG10C
£31.19
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £27.76 each |
| 19+ | £26.20 each |
| 29+ | £25.88 each |
| 39+ | £25.57 each |
| 49+ | £25.26 each |
| 74+ | £24.95 each |
| 99+ | £23.39 each |
| 199+ | £23.08 each |
| 249+ | £22.77 each |
| 499+ | £22.45 each |
| 999+ | £21.83 each |
In Stock
| d | = | 10mm |
| D | = | 22mm |
| B | = | 12mm |
| C | = | 7mm |
| Max misalignment angle | = | 18 degrees |
| Dynamic load | = | 11.4 kN |
| Static load | = | 28.5 kN |
| dk | = | 18mm |
| r1 min | = | 0.3mm |
| r2 min | = | 0.3mm |
| da min | = | 11.6mm |
| da max | = | 13.4mm |
| Da max | = | 20.6mm |
| Da min | = | 17.1mm |
| ra max | = | 0.3mm |
| rb max | = | 0.3mm |
| Weight | = | 0.02 kg |
