SKF GEP180FS Maintenance Free Spherical Plain Bearing 180x260x128x122mm
£4652.16
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £4140.43 each |
| 19+ | £3907.82 each |
| 29+ | £3861.30 each |
| 39+ | £3814.78 each |
| 49+ | £3768.25 each |
| 74+ | £3721.73 each |
| 99+ | £3489.12 each |
| 199+ | £3442.60 each |
| 249+ | £3396.08 each |
| 499+ | £3349.56 each |
| 999+ | £3256.52 each |
In Stock

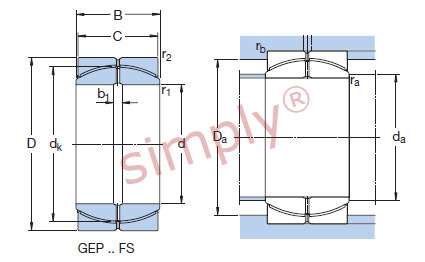

| d | = | 180mm |
| D | = | 260mm |
| B | = | 128mm |
| C | = | 122mm |
| Max misalignment angle | = | 2 degrees |
| Dynamic load | = | 2080 kN |
| Static load | = | 3100 kN |
| dk | = | 240mm |
| b | = | 7.5mm |
| b1 | = | 7.5mm |
| M | = | 4mm |
| r1 min | = | 1.1mm |
| r2 min | = | 1.1mm |
| da min | = | 191mm |
| da max | = | 203mm |
| Da max | = | 246.5mm |
| Da min | = | 223.5mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
| Weight | = | 24.4 kg |
