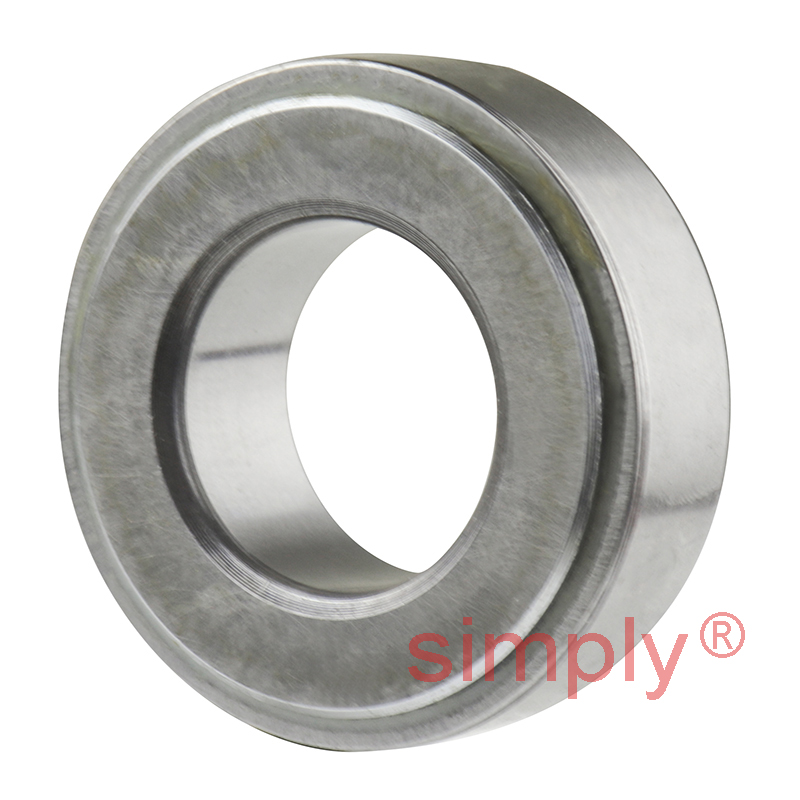

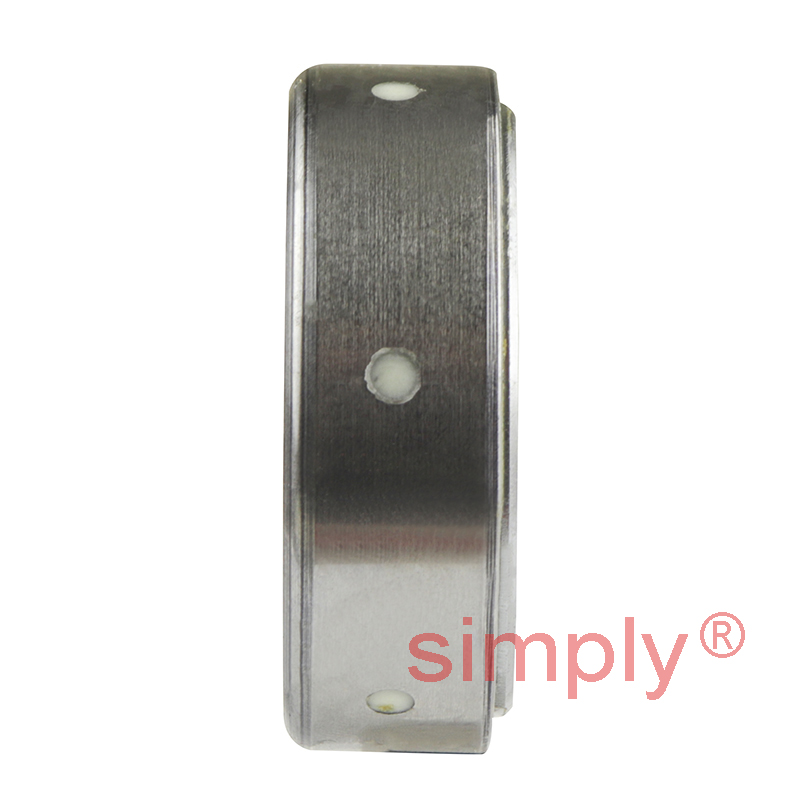

SKF GAC25F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 25x47x15mm
Equivalent to: GE25SX GAC25T
£58.69
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £52.23 each |
| 19+ | £49.30 each |
| 29+ | £48.71 each |
| 39+ | £48.12 each |
| 49+ | £47.54 each |
| 74+ | £46.95 each |
| 99+ | £44.02 each |
| 199+ | £43.43 each |
| 249+ | £42.84 each |
| 499+ | £42.26 each |
| 999+ | £41.08 each |
In Stock
| d | = | 25mm |
| D | = | 47mm |
| T | = | 15mm |
| Angle | = | 3.5 degrees |
| Dynamic load | = | 21.6 kN |
| Static load | = | 34.5 kN |
| dk | = | 42mm |
| B | = | 15mm |
| C | = | 14mm |
| r1 min | = | 0.6mm |
| r2 min | = | 0.3mm |
| s | = | 0.6mm |
| da max | = | 29mm |
| db max | = | 39mm |
| Da min | = | 34mm |
| Db min | = | 43mm |
| ra max | = | 0.6mm |
| Weight | = | 0.14 kg |
