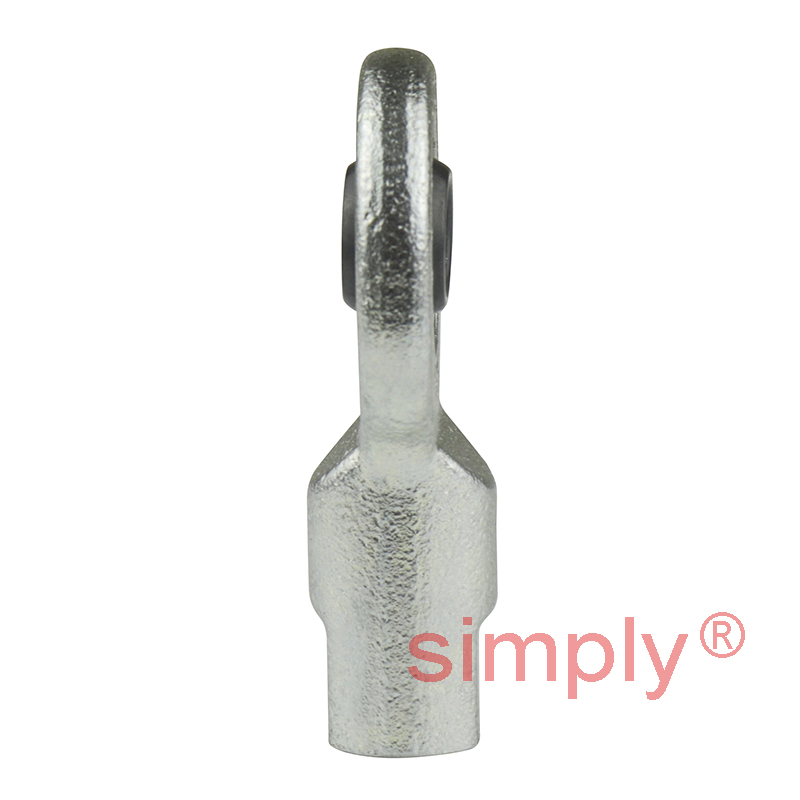

SKF SI6E Right Hand Steel / Steel Plain Female Rod End M6 Thread
Equivalent to: GIR6DO GIR6E
£38.13
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £33.94 each |
| 19+ | £32.03 each |
| 29+ | £31.65 each |
| 39+ | £31.27 each |
| 49+ | £30.89 each |
| 74+ | £30.51 each |
| 99+ | £28.60 each |
| 199+ | £28.22 each |
| 249+ | £27.84 each |
| 499+ | £27.46 each |
| 999+ | £26.69 each |
In Stock
| d | = | 6mm |
| d2 max | = | 22mm |
| G | = | M6 |
| B | = | 6mm |
| C1 max | = | 4.5mm |
| h | = | 30mm |
| a | = | 13deg |
| Dynamic load C | = | 3.4 kN |
| Static load Co | = | 8.15 kN |
| Weight | = | 0.023 kg |
| dk | = | 10mm |
| d4 | = | 11mm |
| l3 min | = | 11mm |
| l4 max | = | 43mm |
| l5 | = | 8mm |
| l7 min | = | 10mm |
| r1 min | = | 0.3mm |
| w h14 | = | 9mm |
