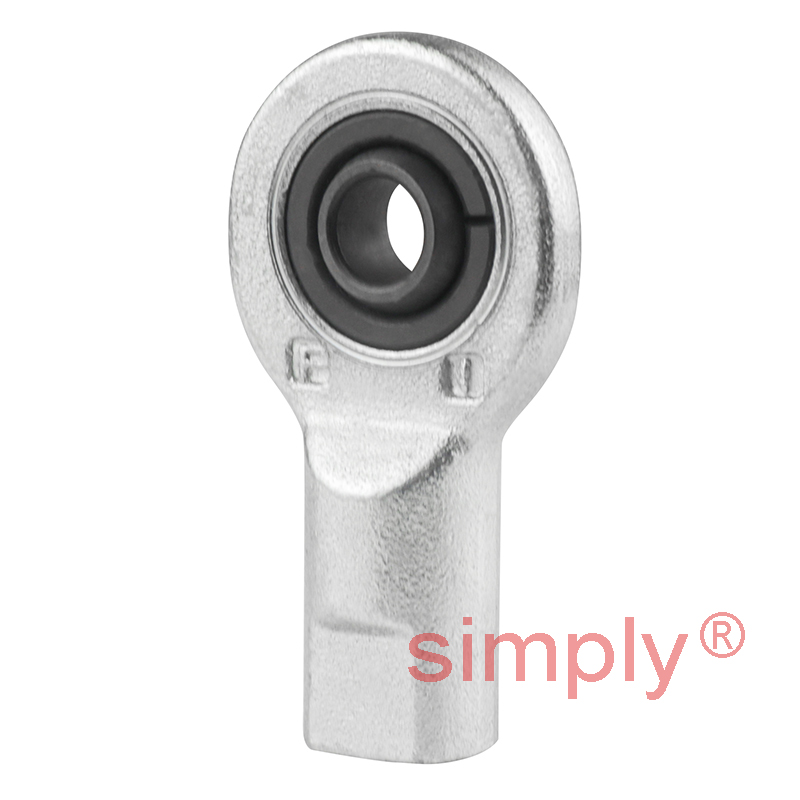

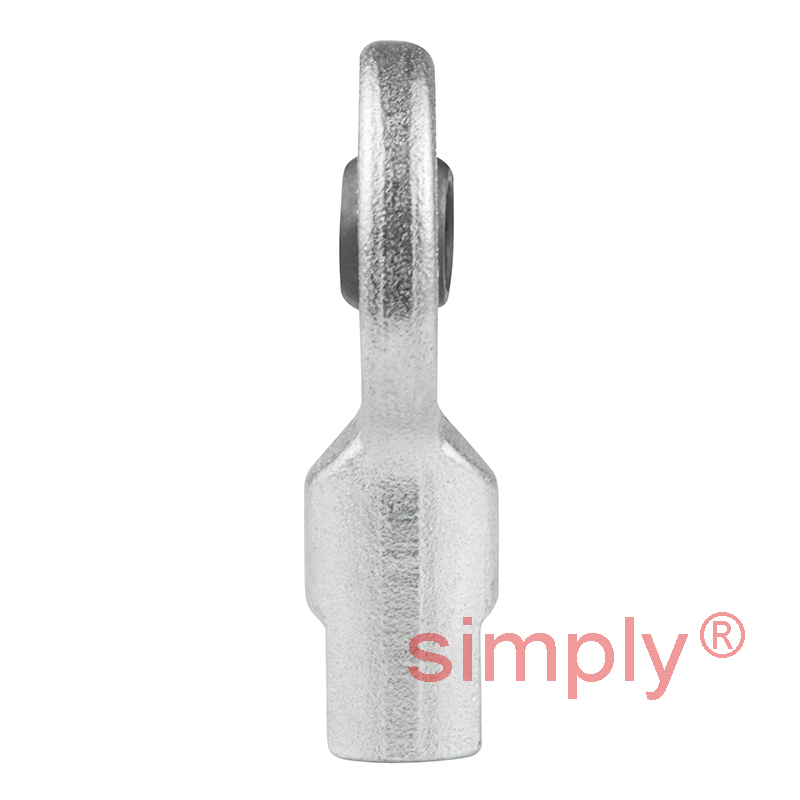

SKF SIL6E Left Hand Steel / Steel Plain Female Rod End M6 Thread
Equivalent to: GIL6DO GIL6E
£32.60
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £29.01 each |
| 19+ | £27.38 each |
| 29+ | £27.06 each |
| 39+ | £26.73 each |
| 49+ | £26.41 each |
| 74+ | £26.08 each |
| 99+ | £24.45 each |
In Stock
| d | = | 6mm |
| d2 max | = | 22mm |
| G | = | M6 |
| B | = | 6mm |
| C1 max | = | 4.5mm |
| h | = | 30mm |
| a | = | 13deg |
| Dynamic load C | = | 3.4 kN |
| Static load Co | = | 8.15 kN |
| Weight | = | 0.023 kg |
| dk | = | 10mm |
| d4 | = | 11mm |
| l3 min | = | 11mm |
| l4 max | = | 43mm |
| l5 | = | 8mm |
| l7 min | = | 10mm |
| r1 min | = | 0.3mm |
| w h14 | = | 9mm |
