Average Rating (3 Reviews)
SKF BS222052CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 25x52x23mm
Equivalent to: BS222052RS/VT143
£82.26
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £73.21 each |
| 4+ | £69.10 each |
| 9+ | £68.28 each |
| 19+ | £67.46 each |
| 29+ | £66.63 each |
| 39+ | £65.81 each |
| 49+ | £61.70 each |
| 59+ | £60.87 each |
| 249+ | £60.05 each |
| 499+ | £59.23 each |
| 999+ | £57.58 each |
In Stock

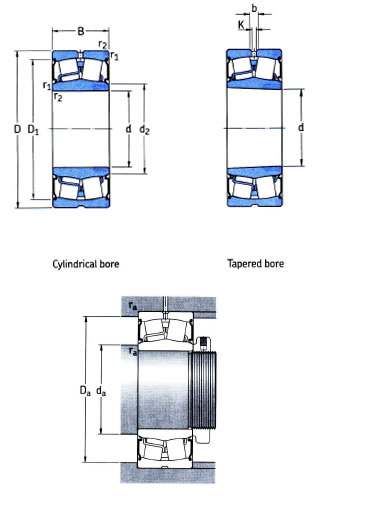

| Dimensions | ||
| d | = | 25mm |
| D | = | 52mm |
| B | = | 23mm |
| D1 | = | 44.6mm |
| d2 | = | 30mm |
| r1r2 min | = | 1mm |
| b | = | 3.7mm |
| K | = | 2mm |
| da min | = | 30mm |
| da max | = | 30mm |
| Da max | = | 46.4mm |
| ra max | = | 1mm |
| Speeds, Loads and Weights | ||
| Dynamic load C | = | 49 kN |
| Static load Co | = | 44 kN |
| Fatigue load limit Pu | = | 4.75 kN |
| Limiting speed | = | 3600 rpm |
| Weight | = | 0.31 kg |
| Factors | ||
| Calculation factor e | = | 0.35 |
| Calculation factor Y1 | = | 1.9 |
| Calculation factor Y2 | = | 2.9 |
| Calculation factor Y0 | = | 1.8 |
