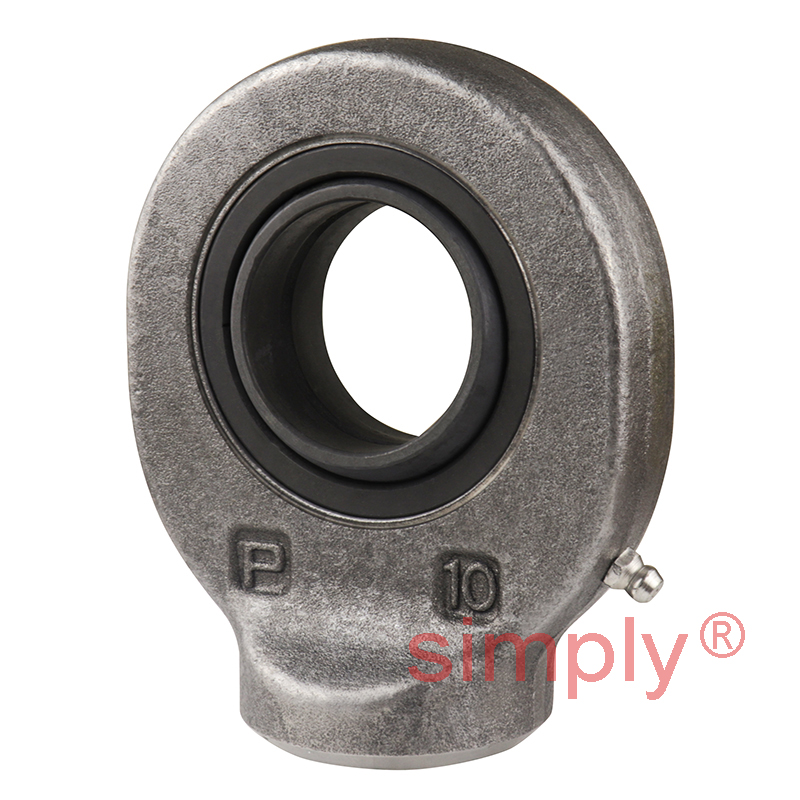

SKF SC40ES Steel / Steel Rod End With Cylindrical Section Welding Shank
Equivalent to: SC40 GK40DO SK40ES
£99.02
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £88.12 each |
| 19+ | £83.17 each |
| 29+ | £82.18 each |
| 39+ | £81.19 each |
| 49+ | £80.20 each |
| 74+ | £79.21 each |
| 99+ | £74.26 each |
| 199+ | £73.27 each |
| 249+ | £72.28 each |
| 499+ | £71.29 each |
| 999+ | £69.31 each |
In Stock
| d | = | 40mm |
| d2 max | = | 94mm |
| B | = | 28mm |
| C1 max | = | 24mm |
| h2 | = | 69mm |
| a | = | 7deg |
| Dynamic load C | = | 100 kN |
| Static load Co | = | 134 kN |
| Weight | = | 1.3 kg |
| dk | = | 53mm |
| d5 max | = | 54mm |
| d6 | = | 4mm |
| l6 max | = | 118mm |
| l7 min | = | 46mm |
| r1 min | = | 0.6mm |
| l8 | = | 4mm |
