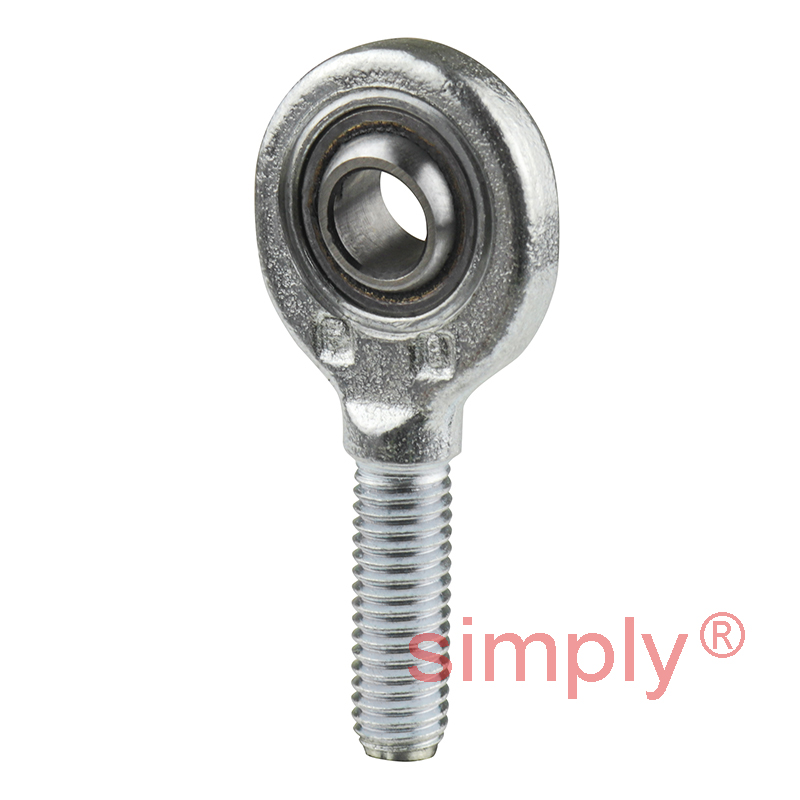

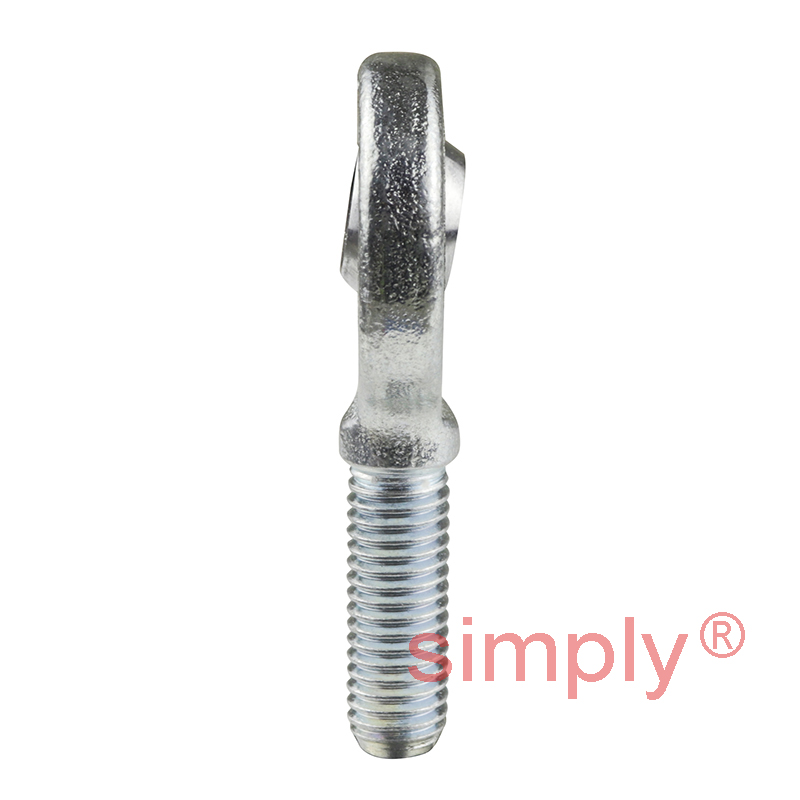

SKF SA8C Right Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M8 Thread
Equivalent to: GAR8UK FE8U
£31.59
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £28.11 each |
| 19+ | £26.54 each |
| 29+ | £26.22 each |
| 39+ | £25.90 each |
| 49+ | £25.59 each |
| 74+ | £25.27 each |
| 99+ | £23.69 each |
In Stock
| d | = | 8mm |
| d2 max | = | 25mm |
| G | = | M8 |
| B | = | 8mm |
| C1 max | = | 6.5mm |
| h | = | 42mm |
| a | = | 15deg |
| Dynamic load C | = | 5.85 kN |
| Static load Co | = | 12.9 kN |
| Weight | = | 0.03 kg |
| dk | = | 13mm |
| l1 min | = | 21mm |
| l2 max | = | 56mm |
| l7 min | = | 11mm |
| r1 min | = | 0.3mm |
