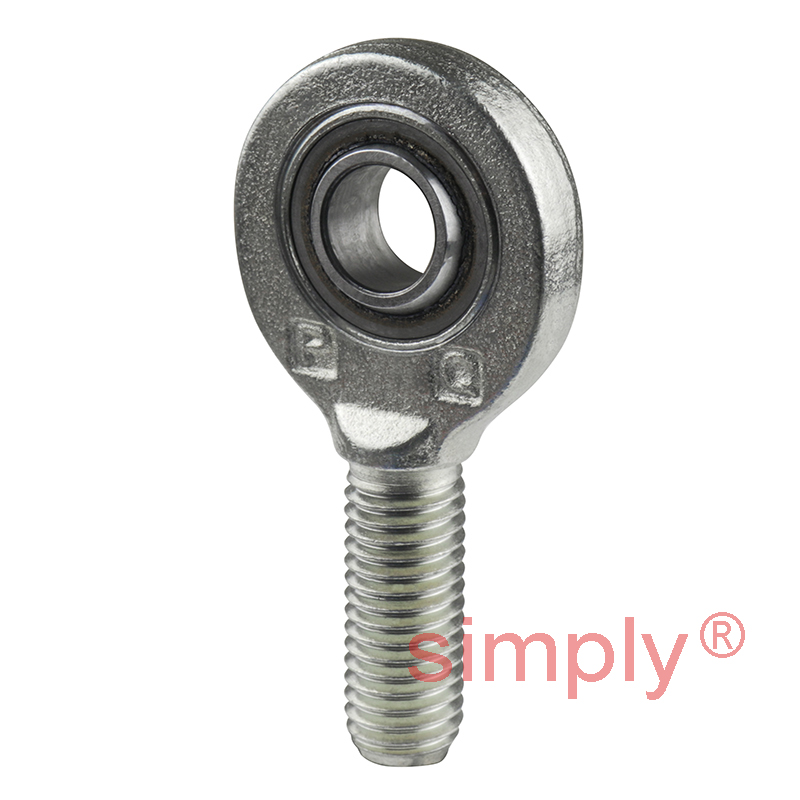

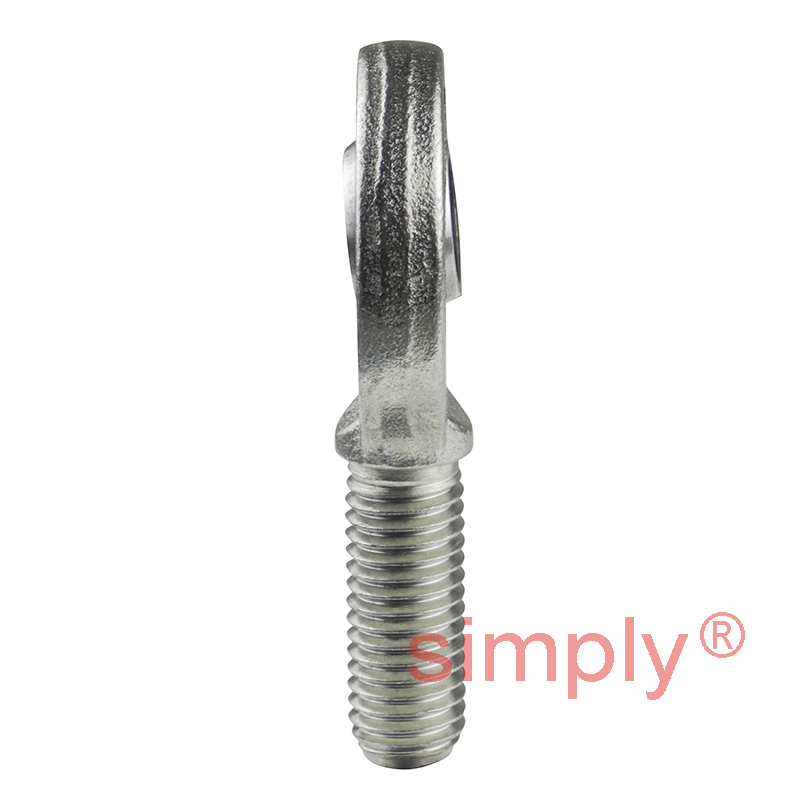

SKF SA12C Right Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M12 Thread
Equivalent to: GAR12UK FE12U
£46.50
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £41.39 each |
| 19+ | £39.06 each |
| 29+ | £38.60 each |
| 39+ | £38.13 each |
| 49+ | £37.67 each |
| 74+ | £37.20 each |
| 99+ | £34.88 each |
In Stock
| d | = | 12mm |
| d2 max | = | 35mm |
| G | = | M12 |
| B | = | 10mm |
| C1 max | = | 8.5mm |
| h | = | 54mm |
| a | = | 10deg |
| Dynamic load C | = | 11.4 kN |
| Static load Co | = | 24.5 kN |
| Weight | = | 0.078 kg |
| dk | = | 18mm |
| l1 min | = | 28mm |
| l2 max | = | 73mm |
| l7 min | = | 17mm |
| r1 min | = | 0.3mm |
