Average Rating (1 Reviews)
SKF 22316EJAVA405 Spherical Roller Bearing for Vibratory Applications with Cylindrical Bore with Steel Cage 80x170x58mm
£350.86
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £350.86 each |
| 4+ | £350.86 each |
| 9+ | £350.86 each |
| 19+ | £350.86 each |
| 29+ | £350.86 each |
| 39+ | £350.86 each |
| 49+ | £350.86 each |
| 59+ | £350.86 each |
| 249+ | £350.86 each |
| 499+ | £350.86 each |
| 999+ | £350.86 each |
In Stock

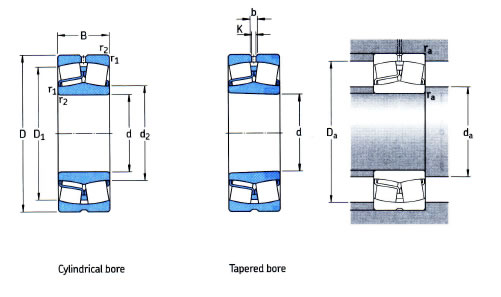

| Dimensions | ||
| d | = | 80mm |
| D | = | 170mm |
| B | = | 58mm |
| D1 | = | 143mm |
| d2 | = | 98.3mm |
| r1r2 min | = | 2.1mm |
| b | = | 8.3mm |
| K | = | 4.5mm |
| da min | = | 92mm |
| Da max | = | 158mm |
| ra max | = | 2mm |
| Speeds, Loads and Weights | ||
| Dynamic load C | = | 490 kN |
| Static load Co | = | 540 kN |
| Fatigue load limit Pu | = | 54 kN |
| Reference speed | = | 3000 rpm |
| Limiting speed | = | 4000 rpm |
| Weight | = | 6.6 kg |
| Factors | ||
| Calculation factor e | = | 0.35 |
| Calculation factor Y1 | = | 1.9 |
| Calculation factor Y2 | = | 2.9 |
| Calculation factor Y0 | = | 1.8 |
