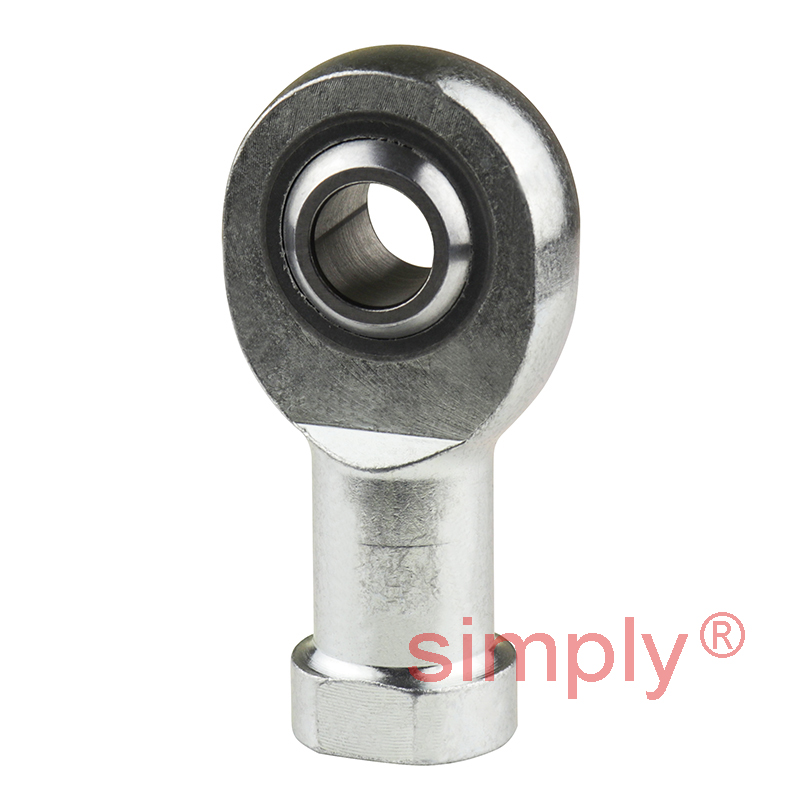

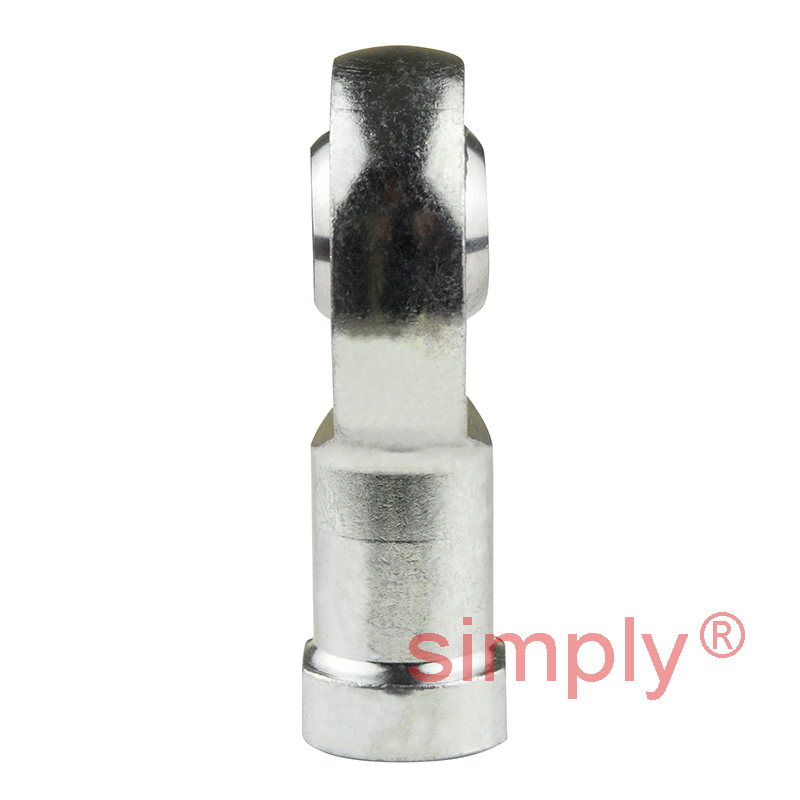

SKF SIKB10FVZ019 Right Hand Steel / PTFE FRP Lined Plain Female Rod End M10x1.25 Thread
£24.43
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 10+ | £21.74 each |
| 19+ | £20.52 each |
| 29+ | £20.28 each |
| 39+ | £20.03 each |
| 49+ | £19.79 each |
| 74+ | £19.54 each |
| 99+ | £18.32 each |
| 199+ | £18.08 each |
| 249+ | £17.83 each |
| 499+ | £17.59 each |
| 999+ | £17.10 each |
In Stock
| d | = | 10mm |
| d2 max | = | 29mm |
| G | = | M10x1.25 |
| B | = | 14mm |
| C1 max | = | 10.5mm |
| h | = | 43mm |
| a | = | 13deg |
| Dynamic load C | = | 9.8 kN |
| Static load Co | = | 14.3 kN |
| Weight | = | 0.079 kg |
| dk | = | 19mm |
| d3 | = | 15mm |
| d4 max | = | 20mm |
| l3 min | = | 15mm |
| l4 max | = | 58mm |
| l5 | = | 6.5mm |
| l7 min | = | 14mm |
| r1 min | = | 0.3mm |
| w h14 | = | 17mm |
